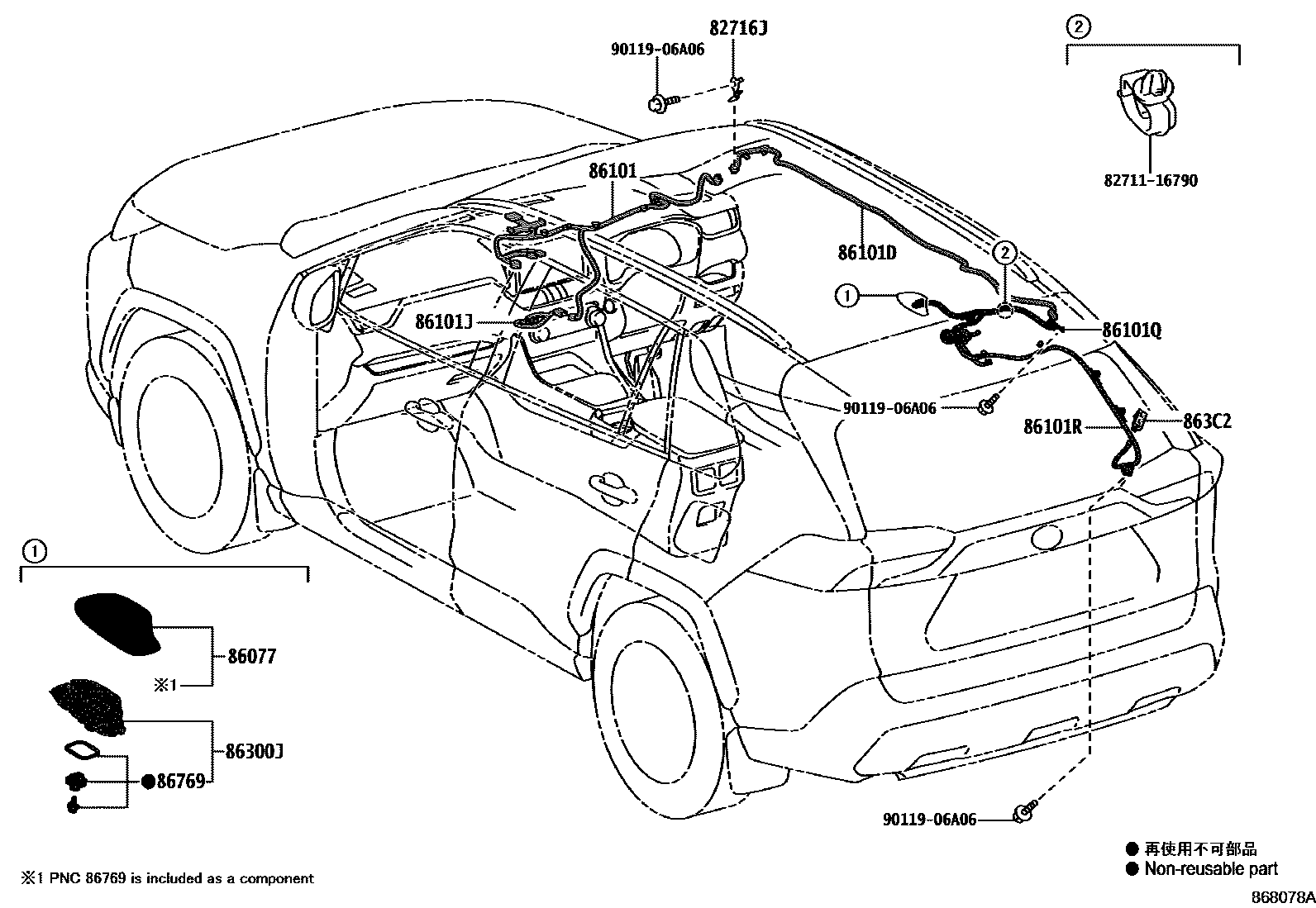

Toyota RAV4 — ANTENNA
82716JBRACKET, WIRING HARNESS CLAMP
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); AUDIO-6SPEAKER 8INCH T2 DAB, EU; AUDIO-JBL & 9INCH DISPLAY T2 (EU)
AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); AUDIO-6SPEAKER 8INCH T2 DAB, EU; AUDIO-JBL & 9INCH DISPLAY T2 (EU)
UKRAINE SPEC
UKRAINE SPEC&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); UKRAINE SPEC&AUDIO-6SPEAKER 8INCH T2 DAB, EU; UKRAINE SPEC&AUDIO-JBL & 9INCH DISPLAY T2 (EU)
UKRAINE SPEC
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
UKRAINE SPEC; UKRAINE SPEC&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); UKRAINE SPEC&AUDIO-6SPEAKER 8INCH T2 DAB, EU; UKRAINE SPEC&AUDIO-JBL & 9INCH DISPLAY T2 (EU)
AZERBAIJAN,GEORGIA SPEC; UKRAINE SPEC
AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); AUDIO-6SPEAKER 8INCH T2 DAB, EU; AUDIO-JBL & 9INCH DISPLAY T2 (EU)
AUDIO-6SPEAKER & 9INCH DISPLAY T2 & DAB (EU); AUDIO-6SPEAKER 8INCH T2 DAB, EU; AUDIO-JBL & 9INCH DISPLAY T2 (EU)
86101QCORD SUB-ASSY, ANTENNA, NO.4
UKRAINE SPEC
AZERBAIJAN,GEORGIA SPEC; UKRAINE SPEC
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300JANTENNA ASSY, ROOF
AZERBAIJAN,GEORGIA SPEC; UKRAINE SPEC
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906A06
main90119-06A06
12 parts on this diagram · 1 diagram in section
ANTENNA for Toyota RAV4
This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota RAV4. Key components include: BRACKET, WIRING HARNESS CLAMP, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2.
