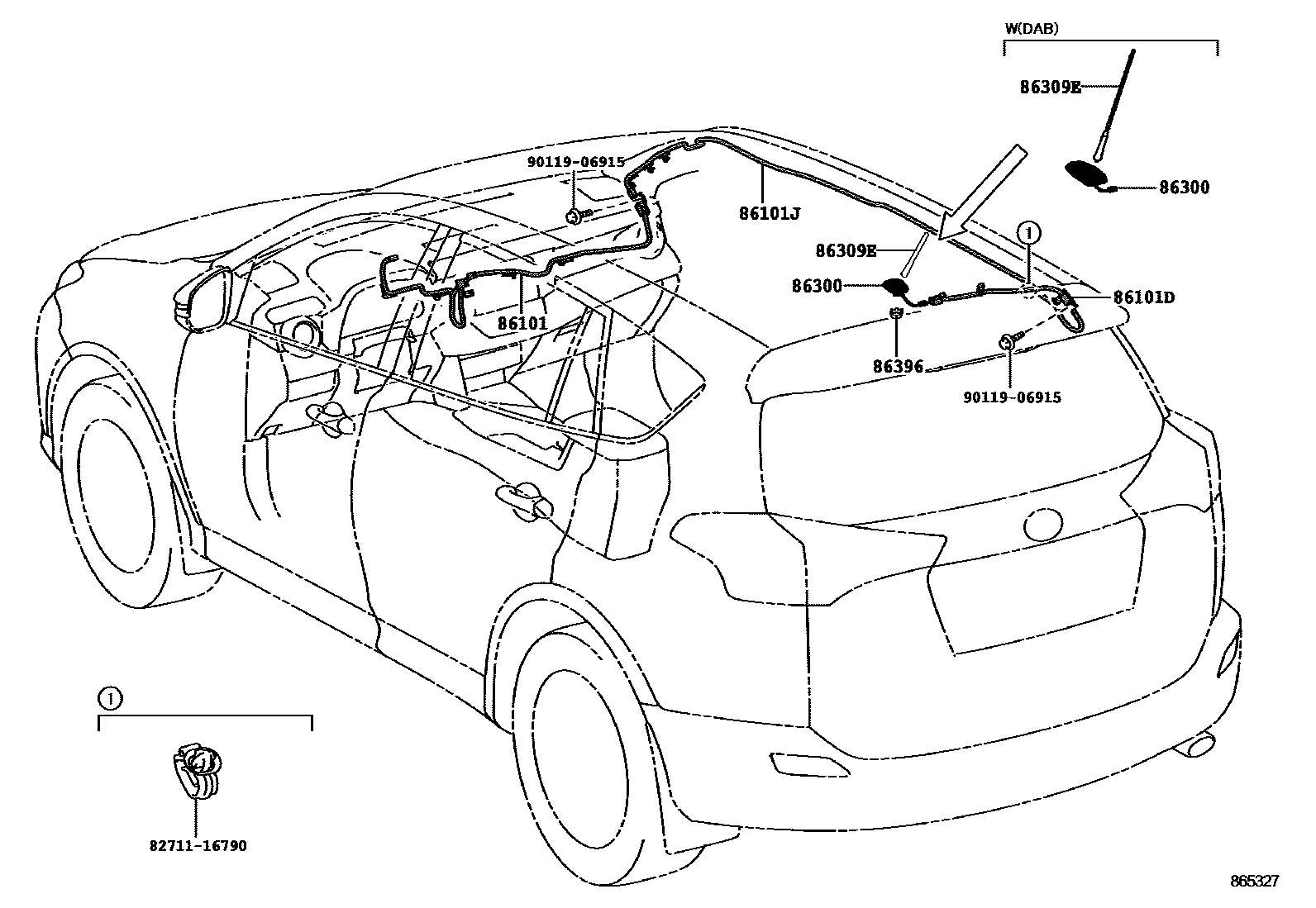

Toyota RAV4 — ANTENNA
86101CORD SUB-ASSY, ANTENNA
AUDIO-6SPEAKER(AUDIO LESS)
main86101-42520iALA4#,ZSA44..LHD..(G,M); ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM); ALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM); ALA49,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201212-201311
FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB)&EMV & NAVIGATION SYSTEM-WITH; FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB); FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB)&EMV & NAVIGATION SYSTEM-WITH
main86101-42540supersedes 86101-42550iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..G..DCR;ALA4#,ZSA44..RHD..X201212-201510
AUDIO-6SPEAKER(AUDIO LESS)
main86101-42760iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main86101-42521iALA4#,ZSA44..LHD..(G,M); ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM); ALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM); ALA41,49,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201311-201412
FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB)&EMV & NAVIGATION SYSTEM-WITH; FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB); FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB)&EMV & NAVIGATION SYSTEM-WITH
main86101-42522iALA4#,ZSA44..LHD..(G,M); ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM); ALA4#,ZSA44..LHD..G..(DCRE,DCRL,HTWVM); ALA41,49,ZSA44..LHD..G..(DCRE,DCRL,HTWVM)201412-201510
FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); FRENCH SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB)&EMV & NAVIGATION SYSTEM-WITH; FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB); FRENCH SPEC&AUDIO-13MM JBL *DA(*DLX) W(DAB)&EMV & NAVIGATION SYSTEM-WITH
AUDIO-*DX*DA&DAB&USB&*BT&6SPEAKER; AUDIO-AVN(CD&DVD&USB&*BT)&DAB&6SPEAKER
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUDIO-13MM JBL *DA(*DLX) W(DAB)
main86101-42532supersedes 86101-42522iALA4#,ZSA44..LHD..(G,M); ALA41,49,ZSA44..LHD..(6F,6FC)..G201412-201510
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUDIO-13MM JBL *DA(*DLX) W(DAB)
AUDIO-*DX*DA&USB&*BT&6SPEAKER
main86101-42551iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201311-201412
AUSTRALIA SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT); NEW ZEALAND SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT)
main86101-42552iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201412-201510
AUSTRALIA SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT); NEW ZEALAND SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT)
main86101-42640iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA4#,ZSA44..RHD..G..(DCRE,DCRL,HTWVM)201212-201311
AUDIO-*DX*DA&DAB&USB&*BT&6SPEAKER; AUDIO-AVN(CD&DVD&USB&*BT)&DAB&6SPEAKER
main86101-42641iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA41,49,ZSA44..RHD..G..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201311-201412
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUDIO-13MM JBL *DA(*DLX) W(DAB); AUSTRALIA SPEC&AUDIO-13MM JBL AVN; NEW ZEALAND SPEC&AUDIO-13MM JBL AVN
main86101-42642supersedes 86101-42552iALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201412-201510
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUSTRALIA SPEC&AUDIO-13MM JBL AVN; NEW ZEALAND SPEC&AUDIO-13MM JBL AVN
AUDIO-6SPEAKER 7INCH DA-FULL DAB EU; AUDIO-JBL 7INCH DA-FULL DAB EU
AUDIO-6SPEAKER(AUDIO LESS); AUDIO-WITHOUT; SPEED WARNING-WITHOUT
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-42670iALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM); ALA49..LHD..G..DCR;ALA4#,ZSA44..G..(DCRE,DCRL,HTWVM)201212-201311
AUDIO-*DX*DA&DAB&USB&*BT&6SPEAKER; AUDIO-AVN(CD&DVD&USB&*BT)&DAB&6SPEAKER
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-42590iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510
main86101-42750iAVA4#,WWA42,ZSA44..RHD..(G,M); AVA4#..LHD..EUR; WWA42,ZSA44..RHD..X;AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR201510-201810
AUDIO-6SPEAKER 7INCH DA-FULL DAB EU; AUDIO-JBL 7INCH DA-FULL DAB EU
86300ANTENNA ASSY, W/HOLDER
main86300-42221iALA41,49,ZSA44..LHD..(6F,6FC)..G; ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201311-201510
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUDIO-13MM JBL *DA(*DLX) W(DAB); AUSTRALIA SPEC&AUDIO-13MM JBL AVN; NEW ZEALAND SPEC&AUDIO-13MM JBL AVN
86309EPOLE SUB-ASSY, ROOF ANTENNA
main86309-42090iALA41,49,ZSA44..LHD..(6F,6FC)..G; ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM); ALA49..RHD..6FC..G..DCR; ALA49..RHD..G..DCR201311-201510
AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB); AUDIO-13MM JBL *DA(*DLX) W(DAB); AUSTRALIA SPEC&AUDIO-13MM JBL AVN; NEW ZEALAND SPEC&AUDIO-13MM JBL AVN
86396NUT, ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906915
main90119-06915
8 parts on this diagram · 4 diagrams in section
ANTENNA for Toyota RAV4
This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota RAV4. Key components include: COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.4.
