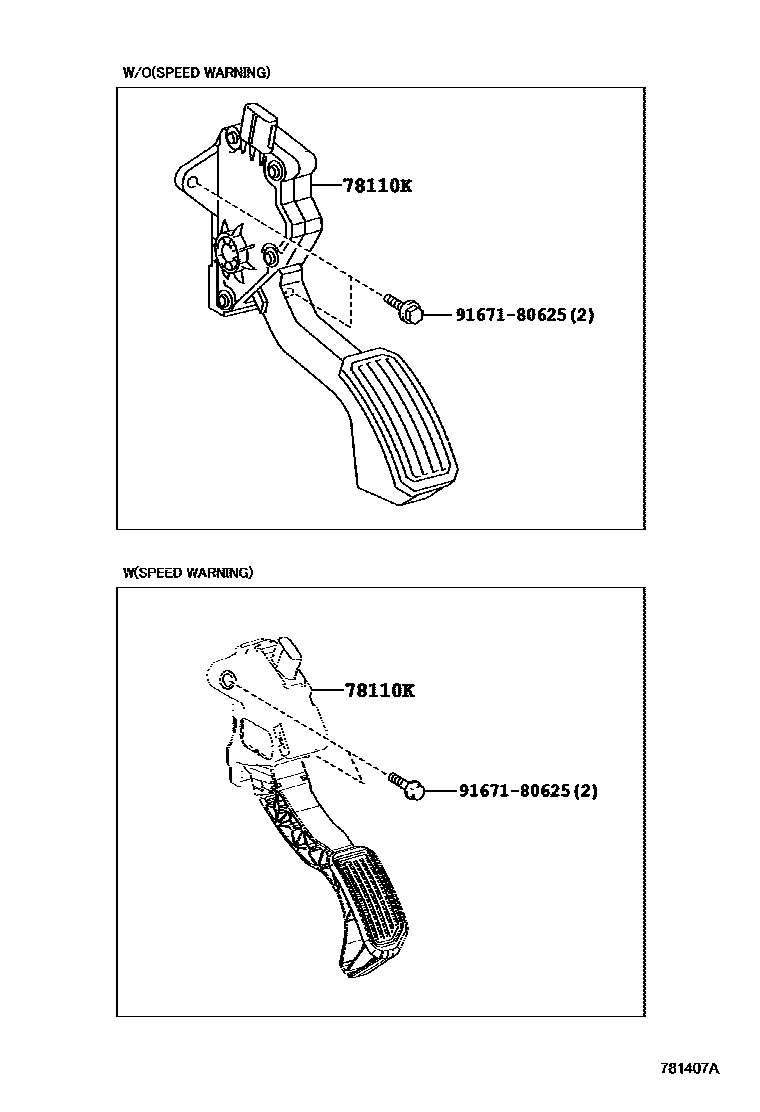

Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0W040iAVA42..LHD..EUR;ZSA44..6F..(G,M)..EUR;ALA49,AVA44,ZSA44..JPP..LHD..(6FC,A)201510-201810

SPEED WARNING-WITH(ASL)

main78110-0W040iALA49,ZSA44..LHD..(6FC,A)201212-201510

main78110-0W050iAVA4#,ZSA44..RHD;WWA42..RHD..(G,M)201212-201810

main78110-42040iZSA44..(G,M)..RUS;WWA42,ZSA44..LHD..(6F,B)..X;ALA49,ASA44,ZSA42..DCRE,EFI201510-201601

SPEED WARNING-WITHOUT

main78110-42040iALA4#,ZSA44..LHD..6F201212-201509

main78110-42041iWWA42..LHD..X;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M);ALA49,ASA44,ZSA4#..RUP..(DCRE,EFI)201602

main78110-42041iZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA44..(6F,6FC)..X..EUR;ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)201602-201810

SPEED WARNING-WITHOUT

main78110-42050iWWA42..RHD..(G,M)201510-201601

SPEED WARNING-WITHOUT

main78110-42050iALA4#,ZSA44..RHD..6F201212-201509

main78110-42051iWWA42..RHD..(G,M)201602-201805

SPEED WARNING-WITHOUT

9167180625

main91671-80625

2 parts on this diagram · 2 diagrams in section
