Toyota RAV4 — ACCELERATOR LINK

0001 1ORGAN TYPE 0002 1ORGAN TYPE 0003 1HANG DOWN TYPE

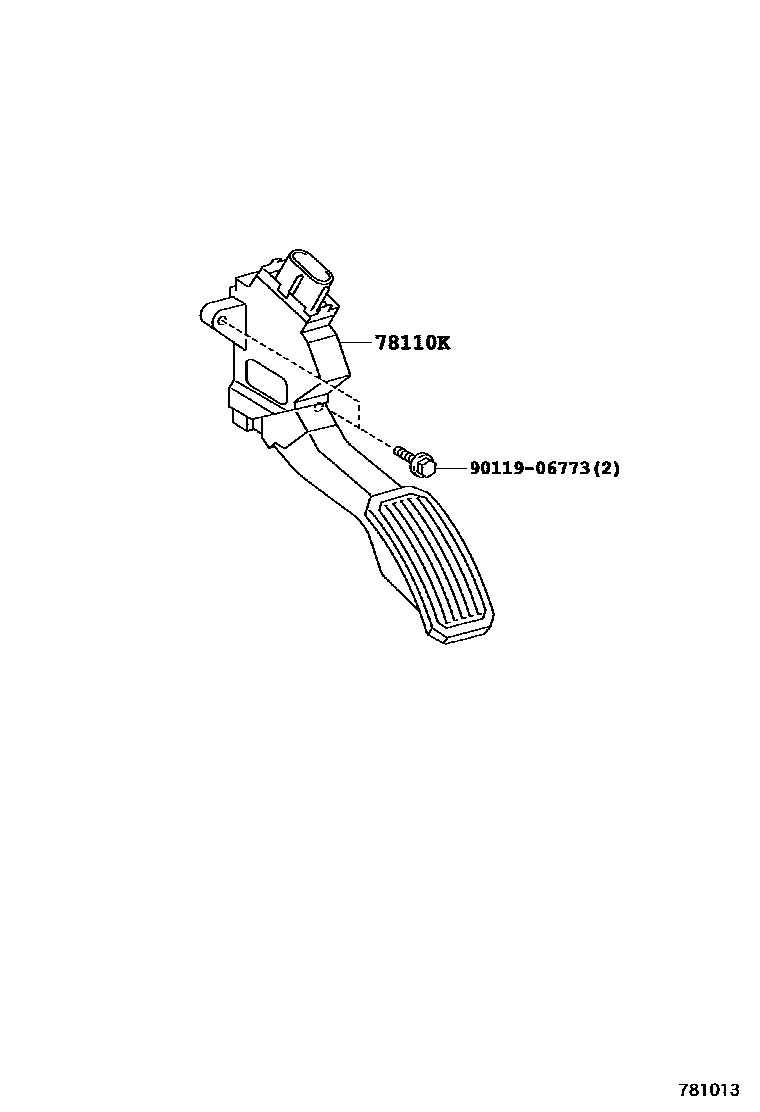

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0W010iACA30,ALA30,ZSA30..LHD..ATM200812-200910

main78110-0W011iACA30,ALA30,ZSA30..LHD..ATM200911-201011

main78110-0W012iACA30,ALA30,ZSA30..LHD..ATM201012-201212

main78110-42010supersedes 78110-0W010iACA30..LHD..5F;ACA33,38,ALA3#,ZSA3#..LHD..(4FC,5F,6F)200808-201007

main78110-42011iACA30..LHD..5F;ACA33,38,ALA3#,ZSA3#..LHD..(4FC,5F,6F)201008-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

sub78110-42012

main78110-42030iACA30,ALA30..RHD200511-200812

main78110-42031iACA3#,ALA3#,GSA33,ZSA3#..RHD201105-201212

sub78110-42032

9011906773

main90119-06773

2 parts on this diagram · 3 diagrams in section
