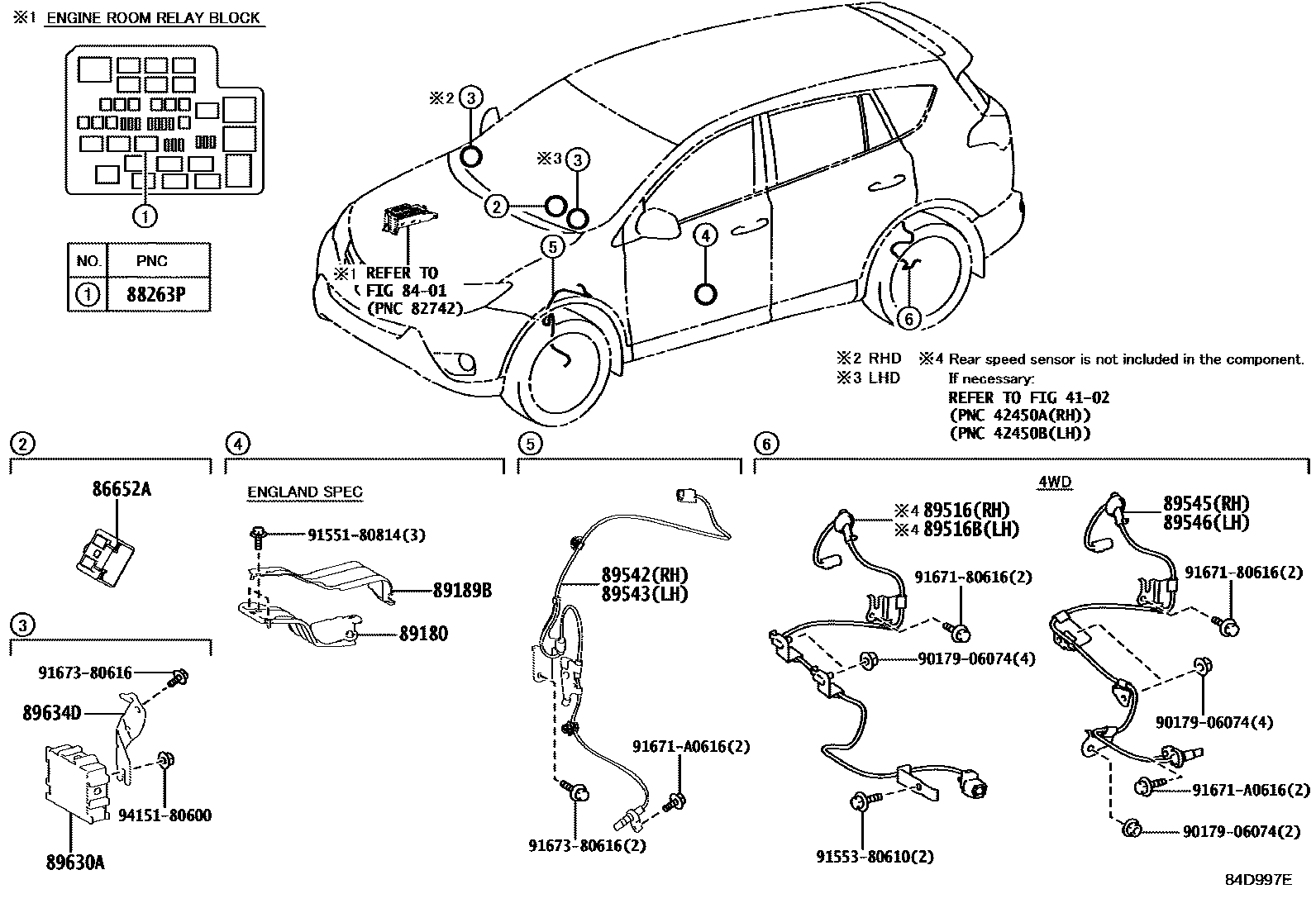

Toyota RAV4 — ABS & VSC
4102REAR AXLE SHAFT & HUB
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
main86652-50010iALA4#,ZSA44..LHD..(G,M); ALA41..G;ALA41..LHD..M;ALA40,49,ZSA44..LHD..(G,M)201212-201510
HEADLAMP-4,PROJECTER & W(*AHB); HEADLAMP-DISCHARGE & W(*AHB)
88263PRELAY, STOP LAMP CONTROL
89180SENSOR ASSY, YAWRATE
UK,MALTA SPEC&ANTI-THEFT SYSTEM-W/(IMMOBI&D-LOCK&ALM)&PITCH&GLASS SENS)
89189BBRACKET, YAWRATE SENSOR
ENGLAND SPEC
89516WIRE, SKID CONTROL SENSOR
89516BWIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
GERMANY SPEC; ITALY SPEC; SPAIN SPEC
89543SENSOR, SPEED, FRONT LH
main89543-42050iASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM); AVA4#..EUR; AVA4#..LHD..EUR; AVA4#..RHD201510-201810
EXCEPT FOR WVTA; FRENCH SPEC&BASIC PACKAGE; UK,MALTA SPEC&BASIC PACKAGE
GERMANY SPEC; ITALY SPEC; SPAIN SPEC
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
main89546-48070iASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC)201510-201810
89630ACOMPUTER ASSY, 4WD
P/N LABEL=8963042081
main89630-42082iASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)201510-201810
P/N LABEL=8963042110
89634DBRACKET, SKID CONTROL COMPUTER NO.3
9017906074
main90179-06074
9155180814
main91551-80814
9155380610
main91553-80610
9167180616
main91671-80616
91671A0616
main91671-A0616
9167380616
main91673-80616
9415180600
main94151-80600
21 parts on this diagram · 2 diagrams in section
ABS & VSC for Toyota RAV4
This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota RAV4. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, STOP LAMP CONTROL, SENSOR ASSY, YAWRATE.
