Toyota RAV4 — ABS & VSC

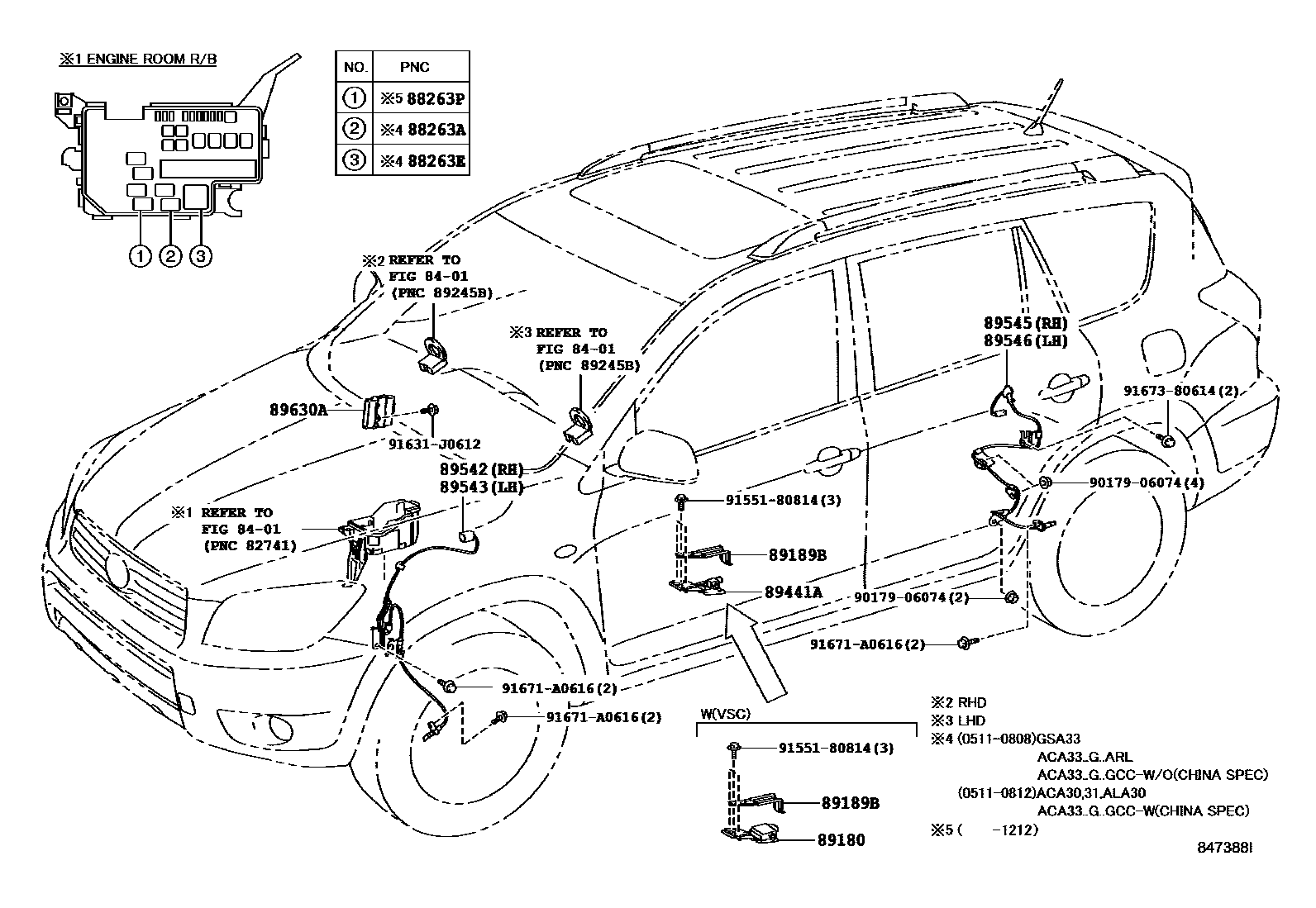

8401SWITCH & RELAY & COMPUTER
88263ARELAY, SKID CONTROL
88263ERELAY, SKID CONTROL NO.2
88263PRELAY, STOP LAMP CONTROL
89180SENSOR ASSY, YAWRATE
WITH(VSC)
main89180-42030iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#; ACA38..G..GCC;ACA33,38..X..ARL;ACA33..G..(GCC,GEN); ACA38..G..GEN200808-201008
VSC-WITH; VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)
89189BBRACKET, YAWRATE SENSOR
89441ASENSOR, DECELERATION
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89630ACOMPUTER ASSY, 4WD
9017906074
main90179-06074
9155180814
main91551-80814
91631J0612
main91631-J0612
91671A0616
main91671-A0616
9167380614
main91673-80614
17 parts on this diagram · 2 diagrams in section
ABS & VSC for Toyota RAV4
This section contains 21 genuine Toyota parts for the ABS & VSC system of the Toyota RAV4. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, RELAY, STOP LAMP CONTROL.
