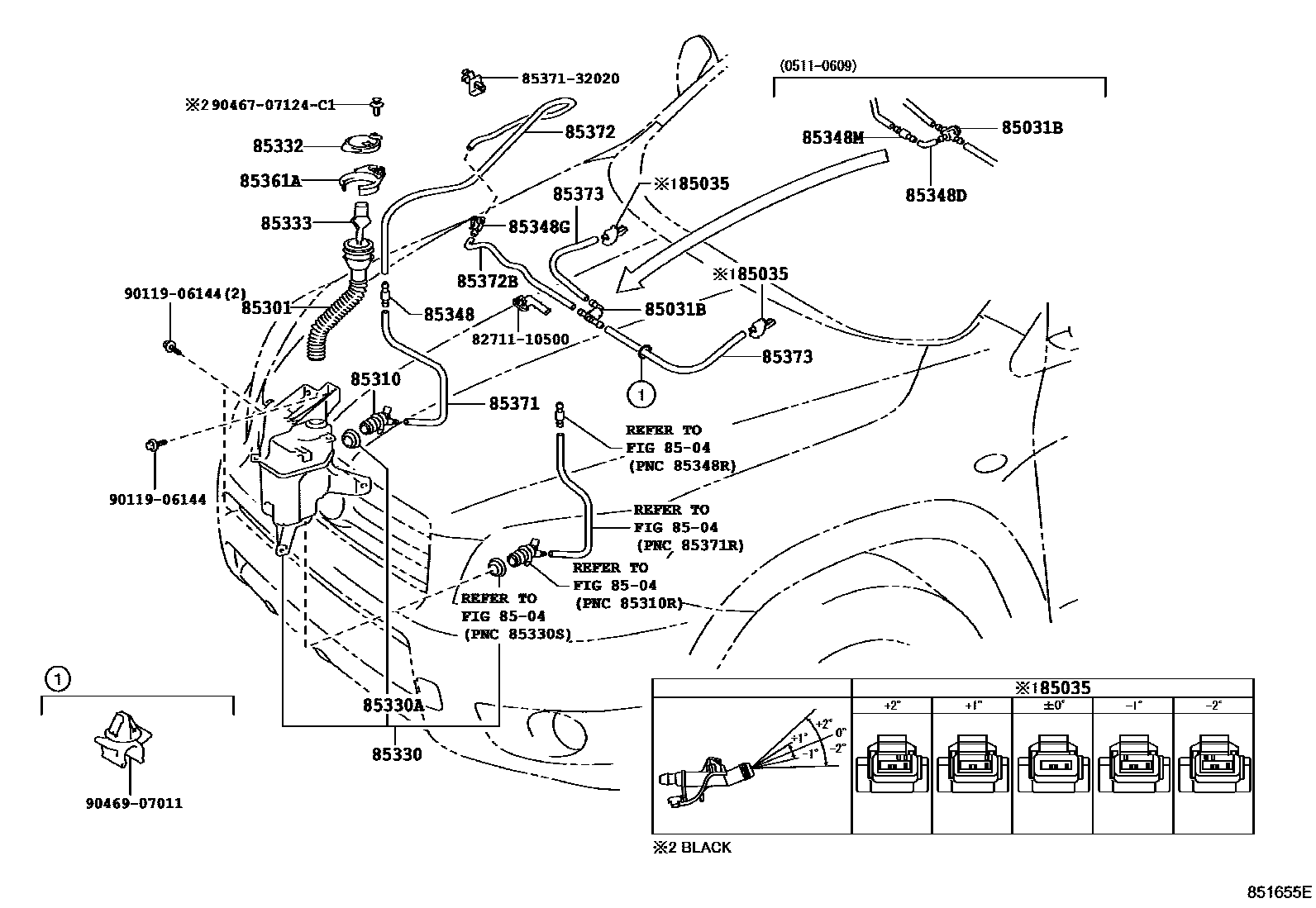

Toyota RAV4/VANGUARD — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i201002

main85321-30080i200511-200608

85035NOZZLE SUB-ASSY, WASHER

main85381-30170×2i200511-200808

main85381-30180×2i200511-200808

main85381-30190×2i200511-201002

main85381-30200×2i200511-201002

main85381-30210×2i200511-201002

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85319-42230i200808

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71020supersedes 85330-74010i200511-200808

85330JAR ASSY, WINDSHIELD WASHER

main85315-42230supersedes 85315-42270i200511-200808

main85315-42280supersedes 85315-42270i200808-201001

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200511-200808

85332CAP, WINDSHIELD WASHER JAR

main85316-48050i200511-200808

85333FILTER, WINDSHIELD WASHER JAR

main85312-48010supersedes 85312-21020i200808-201001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200511-201002

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i200511-200609

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800i200808

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200511-200609

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42230i200511-200704

main85337-42232i201002

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200511-200604

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200511-200808

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200511-200609

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200511-200808

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906144

main90119-06144

9046707124C1

main90467-07124C1

9046907011

main90469-07011

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota RAV4/VANGUARD

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4/VANGUARD. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
