Toyota RAV4/VANGUARD — SPEAKER

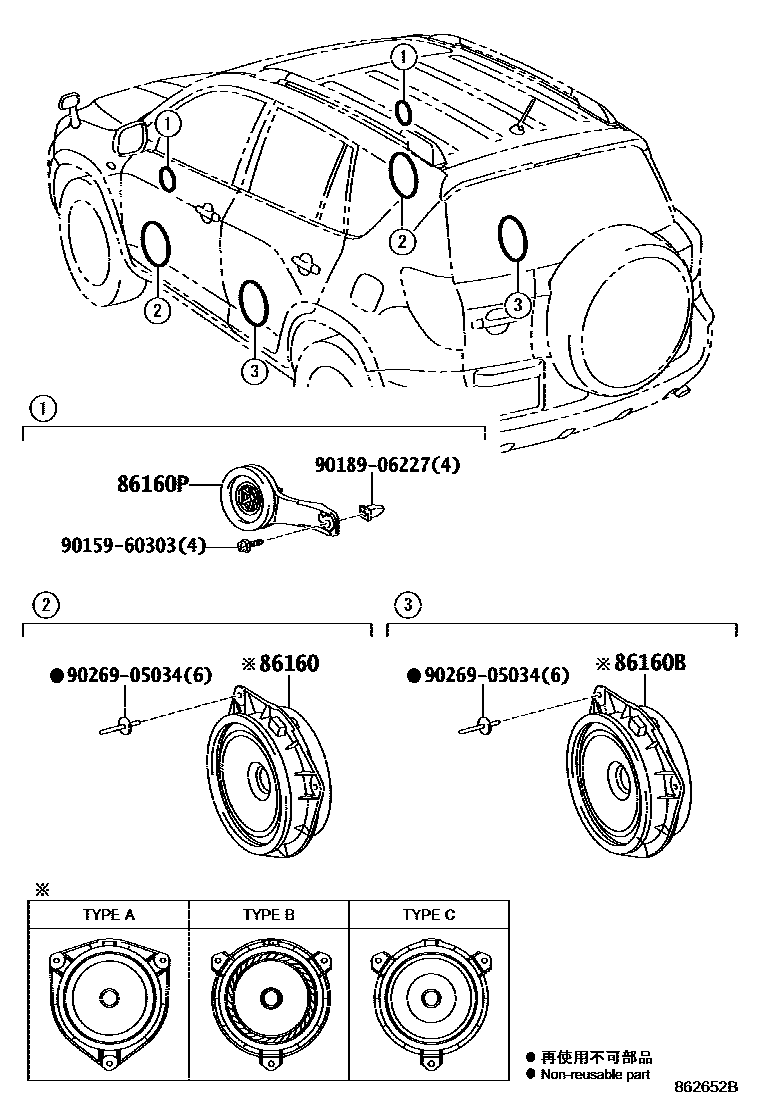

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10×2i200511-201002

main86160-2B580×2i200808-201011

main86160-52300×2i201106-201107

main86160-52330×2i201107-201311

main86160-52331×2i201507-201606

86160BSPEAKER ASSY, REAR

main86160-22A10×2i200511-200808

main86160-2B580×2i200808-201011

main86160-52300×2i201106-201107

main86160-52330×2i201107-201311

main86160-52331×2i201507-201606

86160PSPEAKER ASSY, FRONT NO.2

main86160-42120i200511-200808

main86160-42130i201002

9015960303

main90159-60303

9018906227

main90189-06227

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota RAV4/VANGUARD

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota RAV4/VANGUARD. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
