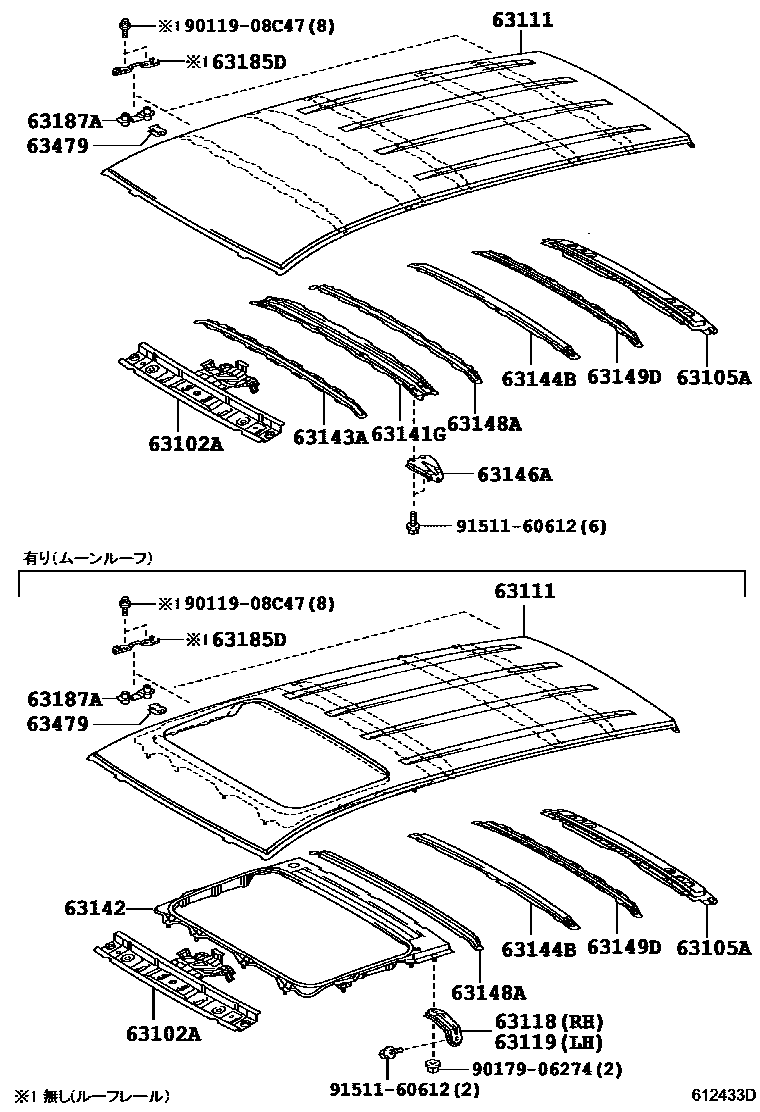

Toyota RAV4/VANGUARD — ROOF PANEL & BACK PANEL

0001 1 0002 1������ 0003 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42901iACA33,38,GSA33200511-201002

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42030iACA3#200511-200608

main63105-42031iACA31,36200608-201002

63111PANEL, ROOF

main63111-42160iACA33,38,GSA33200708-201311

main63111-42190iACA31,36200511-201606

63118SUPPORT, ROOF PANEL, RH

main63118-42060

63119SUPPORT, ROOF PANEL, LH

main63118-42060

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42080iACA31,36200511-201002

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42901

63143AREINFORCEMENT, ROOF PANEL

main63143-42050iACA31,36200511-201002

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42030iACA33,38,GSA33200511-201002

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-42010iACA31,36200511-201002

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42030iACA31,36200511-201002

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42060iACA31,36200511-201002

63185DBRACKET, ROOF RACK, FRONT

main63185-42020iACA31,36200511-201002

63187ABRACKET, ROOF RACK, REAR

main63187-42010iACA31,36200511-201002

63479RETAINER, ROOF INNER RACK

main63479-42010iACA31,36200511-201002

9011908C47

main90119-08C47

9017906274

main90179-06274

9151160612

main91511-60612

18 parts on this diagram · 3 diagrams in section
