Toyota RAV4/VANGUARD — METER

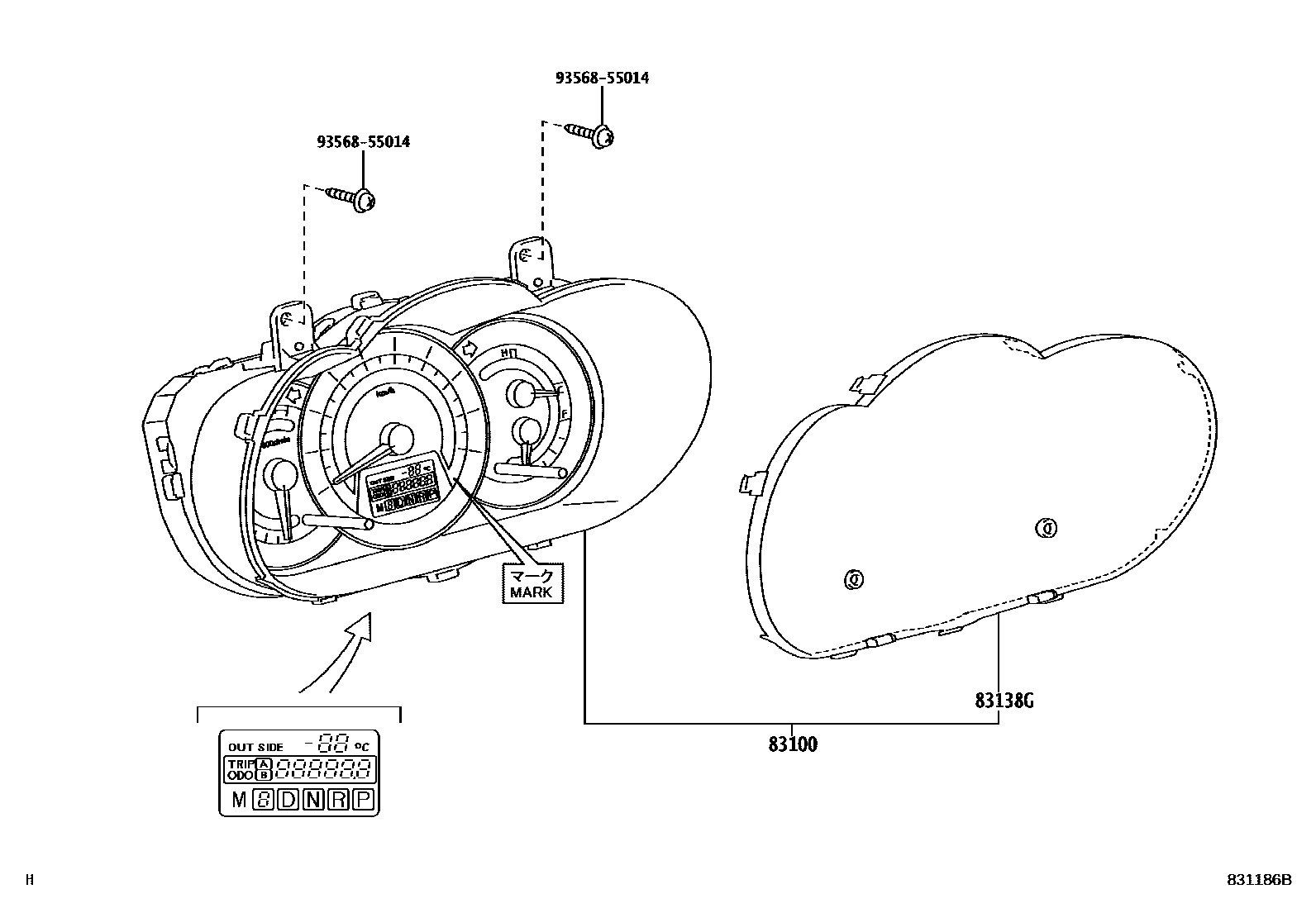

Parts diagram

83100METER ASSY, COMBINATION

main83800-42C20i200511-200808

main83800-42F10i200708-200908

main83800-42F11i200908-201002

main83800-42F12i201212-201307

main83800-42F13i201308-201311

main83800-42F20i200708-200908

main83800-42F21i200908-201002

main83800-42G80i200808-200908

main83800-42G81i200908-201212

main83800-42G82i201212-201307

main83800-42G83i201308-201606

83138GGLASS, COMBINATION METER

main83852-42C20i200511-200808

9356855014

main93568-55014

3 parts on this diagram · 1 diagram in section

METER for Toyota RAV4/VANGUARD

This section contains 3 genuine Toyota parts for the METER system of the Toyota RAV4/VANGUARD. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
