Toyota RAV4/VANGUARD — IGNITION COIL & SPARK PLUG / GLOW PLUG

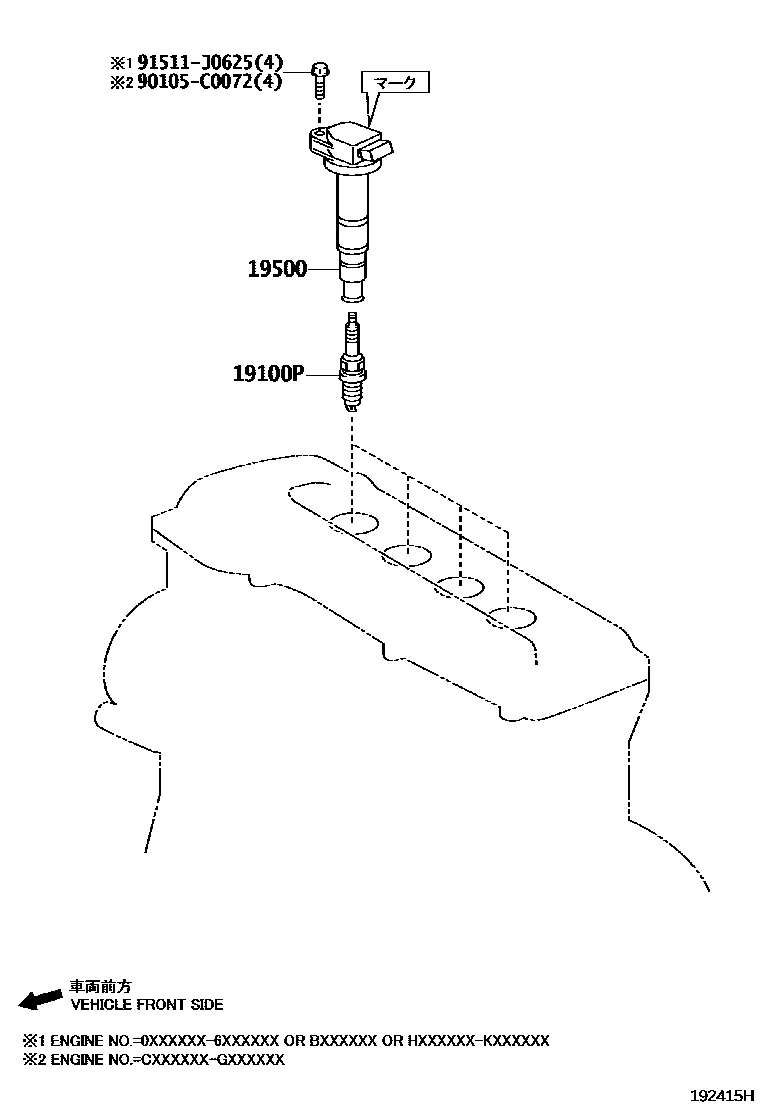

Parts diagram

19100PPLUG, SPARK

main90919-01237×4i200808-201206

main90919-01240×4i201206

main90919-01247×6i200708-201002

main90919-T1007×4i200511-201002

19500COIL ASSY, IGNITION

main90919-02244×4i200511-200605

main90919-02248×4i200605-200702

main90919-02251×6i200708-200812

main90919-02255×6i201002-201212

main90919-02266×4i201009

main90919-C2002×4i200903-201002

main90919-C2006×4i200903-201002

main90919-T2005×4i200605-200903

90105C0072

main90105-C0072

91511J0625

main91511-J0625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4/VANGUARD

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4/VANGUARD. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
