Toyota RAV4/VANGUARD — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

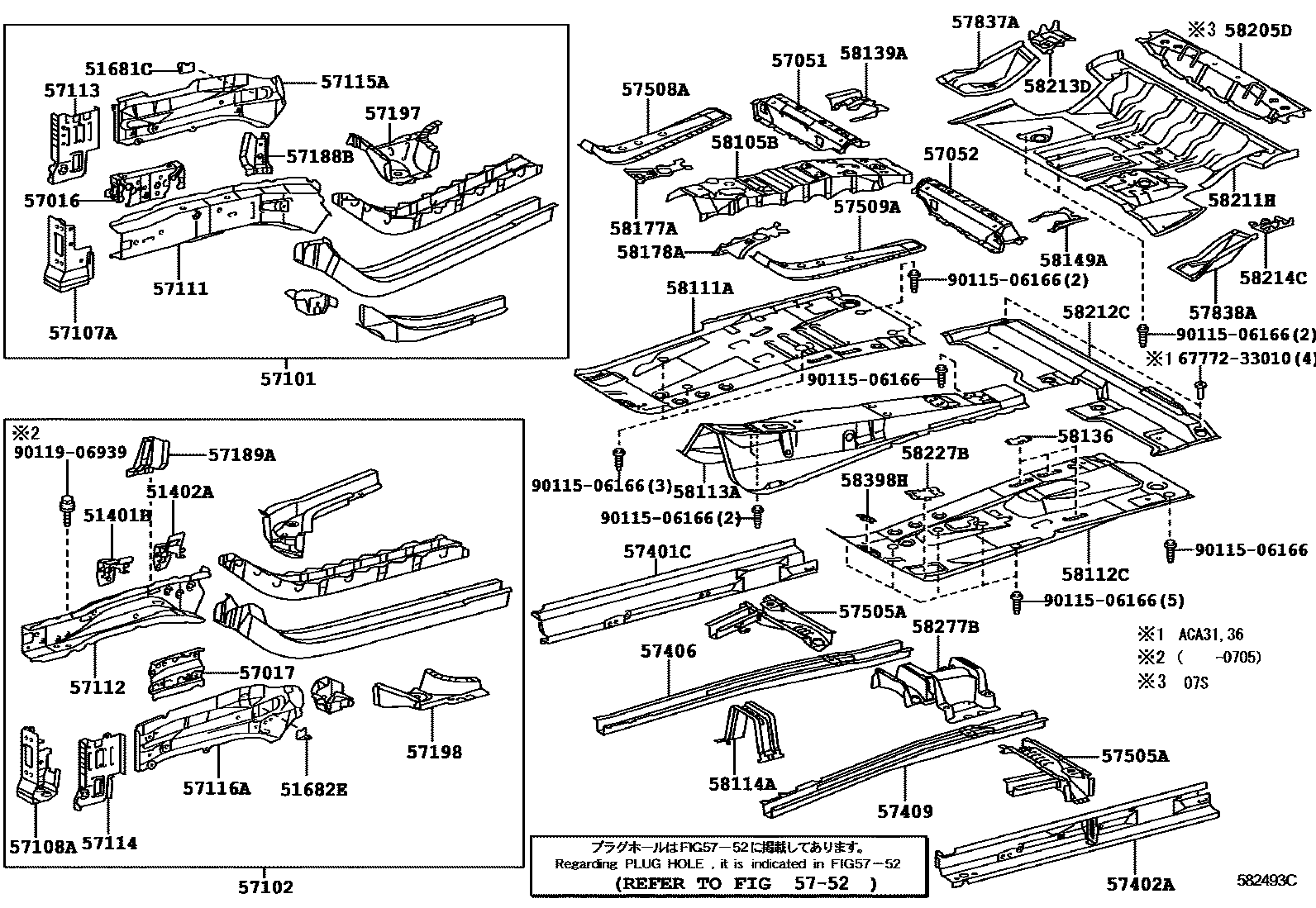

Parts diagram

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-42010i200808-201308

main51401-42020i201308

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-42010i200511-201002

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i200511-200808

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i200511-201002

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i200511-200808

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i200511-200808

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-42010i200808-201201

main57051-42011i201201

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-42010i200808-201201

main57052-42011i201201

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-42110i200511-200808

main57111-42900i201401

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-42090i200511-200808

main57112-12904i201409-201501

main57112-12906i201502

main57112-42900i201401-201408

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-42030i200511-200808

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-42030i200808-201501

main57108-42031i201502

57111MEMBER, FRONT SIDE, RH

main57111-12230i200705-200808

main57111-42060i200511-200704

57112MEMBER, FRONT SIDE, LH

main57112-12190i200705-200808

main57112-42060i200511-200705

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-42050i201002-201311

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-42050i200511-201002

main57114-42051i201106-201311

main57114-78010i201409

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090i200511-200808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090i201002-201311

main57116-12091i201401-201405

main57116-42030i200511-200705

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-42030i200511-200808

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-42020i200511-200808

57197BOX, TORQUE, FRONT RH

main57197-42060i200808

57198BOX, TORQUE, FRONT LH

main57198-42060i200511-200808

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-42121i201002

main57401-42131i200511-200808

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-42121i200708-201002

main57402-42131i200511-200808

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-42010i200708-201002

main57406-42011i201301

main57406-42020i200808-201301

main57406-42021i201301

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-42010i200708-201002

main57409-42020i200808

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-42110i200511-200808

main57506-42050i200511-200808

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-42010i200511-200808

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-42010i200511-200808

5752HOLE PLUG

→ Go to FIG 57-52

57837AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-42020i200511-200808

57838AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-42010i200511-200808

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-42011i200511-200808

main58105-42012i201205-201301

main58105-42013i201301

58111APAN, FRONT FLOOR, RH

main58111-42200i200708-201002

main58111-42201i201201

main58111-42210i200808-201201

main58111-42211i201201

main58111-42919i200511-200607

58112CPAN, FRONT FLOOR, LH

main58112-42010i200708-201002

main58112-42011i201201

main58112-42020i200808-201201

main58112-42021i201201

main58112-42902i200511-200607

58113APANEL, FRONT FLOOR, CENTER

main58113-42010i200708-201002

main58113-42011i201301-201307

main58113-42012i201308

main58113-42020i200808-201212

main58113-42021i201212-201307

main58113-42022i201308

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-42040i201002-201212

main58114-42041i201210

58136COVER, FRONT FLOOR HOLE

main58136-42020×6i200511-200808

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-42010i200511-200808

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-42010i200511-200808

main58149-42011i201201

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-42010i200511-200808

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-42010i200511-200808

58205DREINFORCE SUB-ASSY, REAR SEAT HINGE

main58205-42010i200708-201002

58211HPAN, CENTER FLOOR

main58211-42010i200511-200612

main58211-42011i200612-200808

58212CPAN, CENTER FLOOR, FRONT

main58202-42010i200511-201002

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-42010i200511-200808

58214CREINFORCEMENT, CENTER FLOOR PANEL, LH

main58214-42010i200511-200808

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-42010×2i201002-201212

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58209-42030i200808-201301

main58209-48010i201301

58398HCOVER, FLOOR UNDER, NO.1

main58398-42010×2i200511-200808

6777233010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-33010

9011506166

main90115-06166

9011906939

main90119-06939

53 parts on this diagram · 5 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota RAV4/VANGUARD

This section contains 70 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota RAV4/VANGUARD. Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH, PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH.
