Toyota RAV4 (SFTM) — SPEAKER

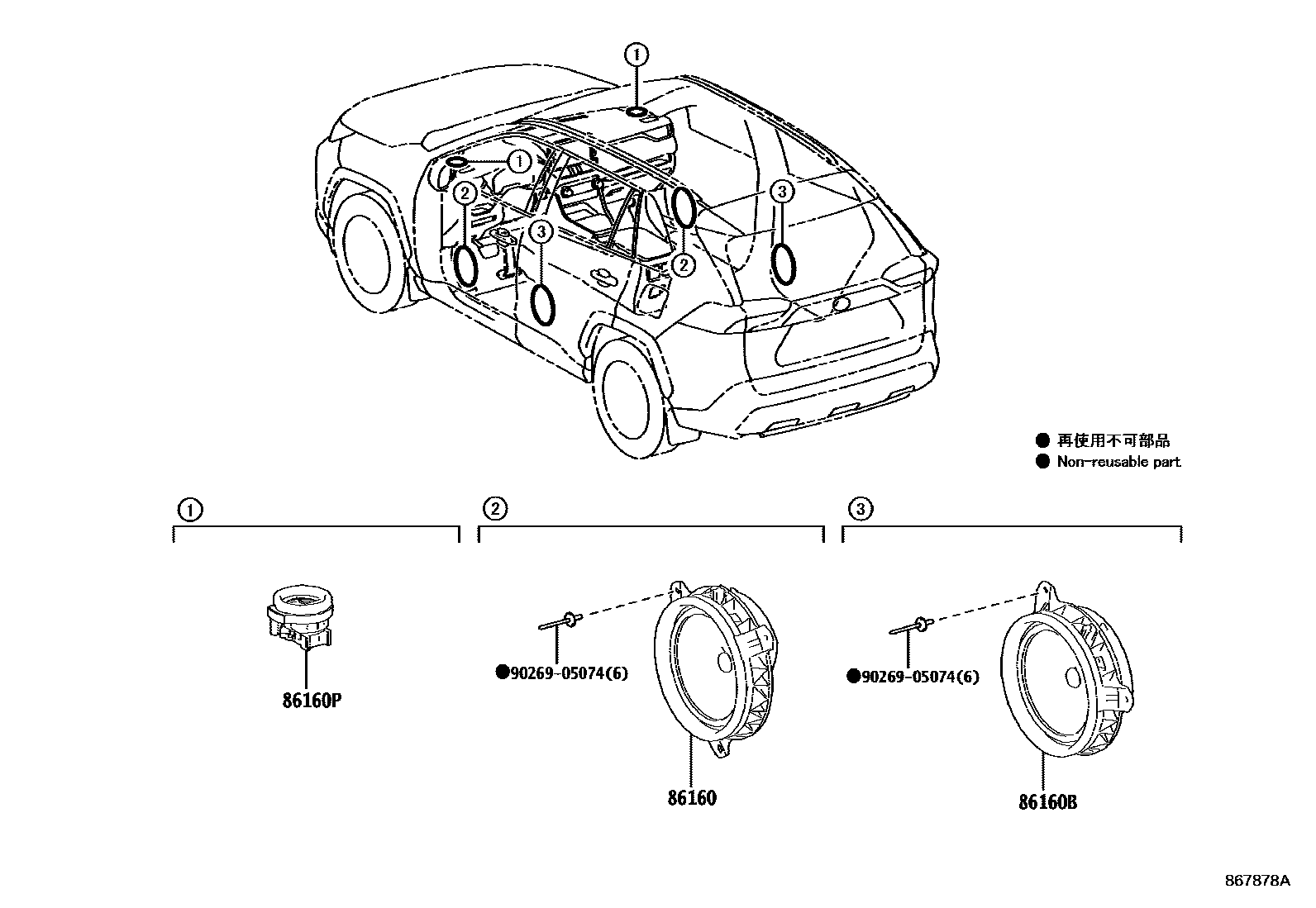

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-02C60×2i202409

86160BSPEAKER ASSY, REAR

main86160-02C60×2i202409

86160PSPEAKER ASSY, FRONT NO.2

main86160-0D300×2i202409

9026905074

main90269-05074

4 parts on this diagram · 1 diagram in section
