Toyota RAV4 (SFTM) — PARTIAL ENGINE ASSEMBLY

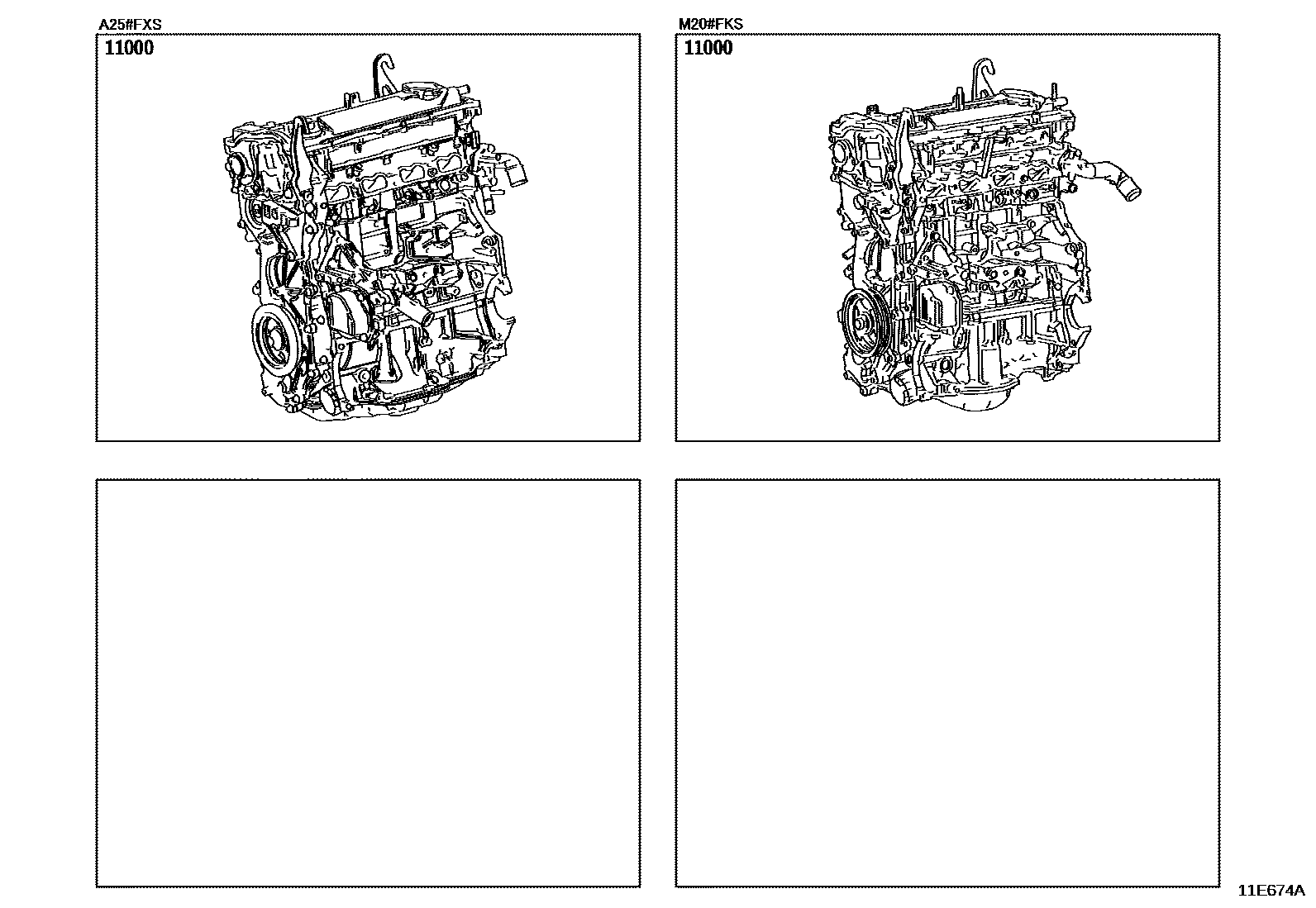

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-F0080i202304-202409

main19000-F2070i201911-202303

main19000-F2240i202409

main19000-25280supersedes 19000-F0080i202110-202303

ENGINE-A25B-FXS

1 parts on this diagram · 1 diagram in section
