Toyota RAV4 (SFTM) — METER

0001 1COMBINATION METER(4.2INCH) 0002 1COMBINATION METER(7INCH) 0003 1COMBINATION METER(12.3INCH) 0004 1HEAD UP DISPLAY

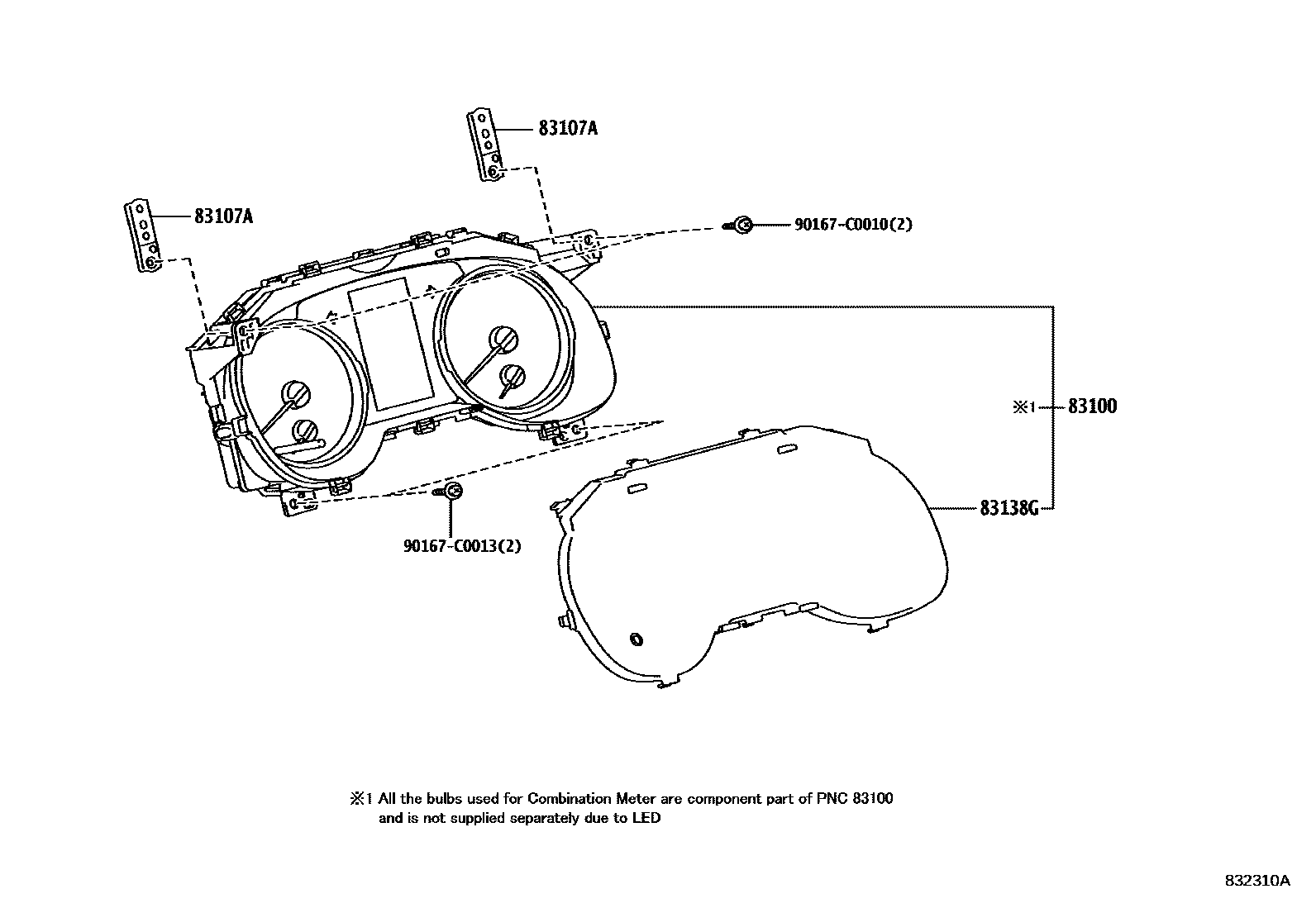

83100METER ASSY, COMBINATION

main83800-0R560iMXAA52..X201911-202104

DENSO

main83800-0R570iMXAA5#..G,M201911-202104

DENSO

main83800-0R590iAXAH5#201911-202104

DENSO

main83800-0RB60iMXAA52..X202104-202303

DENSO

main83800-0RB70iMXAA5#..G,M202104-202303

DENSO

main83800-0RB80iAXAH5#202104-202303

DENSO

main83800-0RD40iMXAA52..X202304-202307

DENSO

main83800-0RD41iMXAA52..X202308-202409

DENSO

main83800-0RD70iMXAA52..M202304-202306

DENSO

main83800-0RD71iMXAA52..M202307-202308

DENSO,LEATHER PACKAGE(20TH ANNIVERSARY)

main83800-0RD72iMXAA52..M202308-202312

DENSO

main83800-0RD73supersedes 83800-0RJ70iMXAA52..M202401-202409

DENSO,LEATHER PACKAGE(20TH ANNIVERSARY)

sub83800-0RD74

main83800-0RD80iAXAL5#202304-202306

DENSO

main83800-0RD81iAXAL5#202307-202308

DENSO

main83800-0RD82iAXAL5#202308-202312

DENSO

main83800-0RD83iAXAL5#202401-202409

DENSO

sub83800-0RD84

main83800-0RJ60iMXAA52..X202409

DENSO,*614

main83800-0RJ80iMXAA52..M202409-202410

DENSO,LEATHER PACKAGE,*614

main83800-0RJ81iMXAA52..M202411

DENSO,LEATHER PACKAGE,*614

main83800-0RJ90iAXAL5#202409-202410

DENSO,*614

main83800-0RJ91iAXAL5#202411

DENSO,*614

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-0R020iMXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

main83107-0R030×2iMXAA5#..M,X202304-202409

83138GGLASS, COMBINATION METER

main83852-0R560iMXAA52..X202304-202409

main83852-0R570iAXAH5#,MXAA5#..G,M201911-202303

90167C0010

main90167-C0010

90167C0013

main90167-C0013

5 parts on this diagram · 4 diagrams in section
