Toyota RAV4 (SFTM) — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01297×4i202304-202409

FC20HR-Q8

main90919-C1011×4i202304-202409

DILKAR6T8

main90919-01289×4supersedes 90919-C1011i202110-202303

FC16HR-Q8,ENGINE-A25B-FXS,*636

19500COIL ASSY, IGNITION

main90919-C2009×4i202409

main90919-C2010×4i202409

main90919-02277×4supersedes 90919-C2010i202110-202303

ENGINE-A25B-FXS,*636

9010506353

main90105-06353

90105C0474

main90105-C0474

4 parts on this diagram · 2 diagrams in section

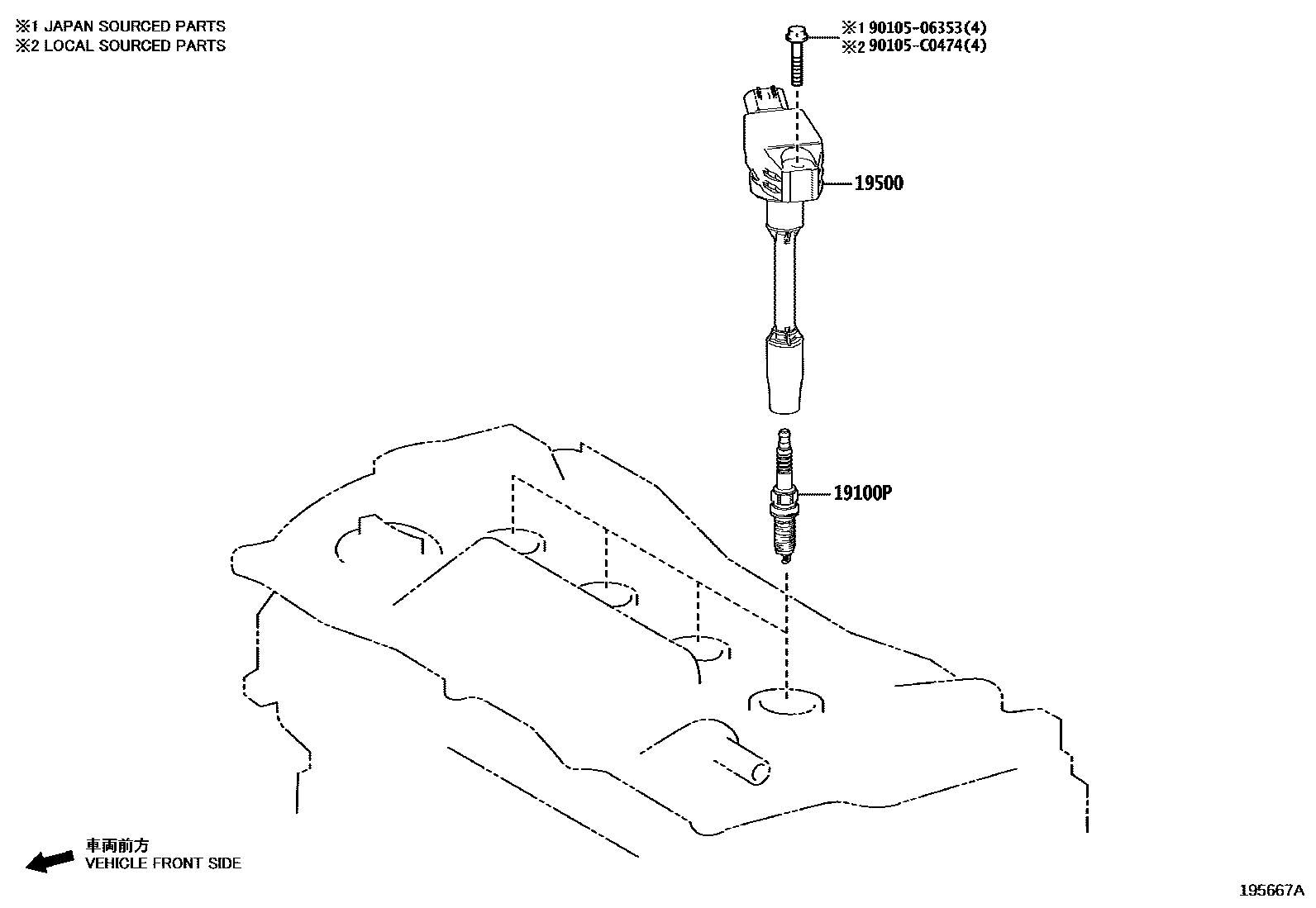

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4 (SFTM)

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4 (SFTM). Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
