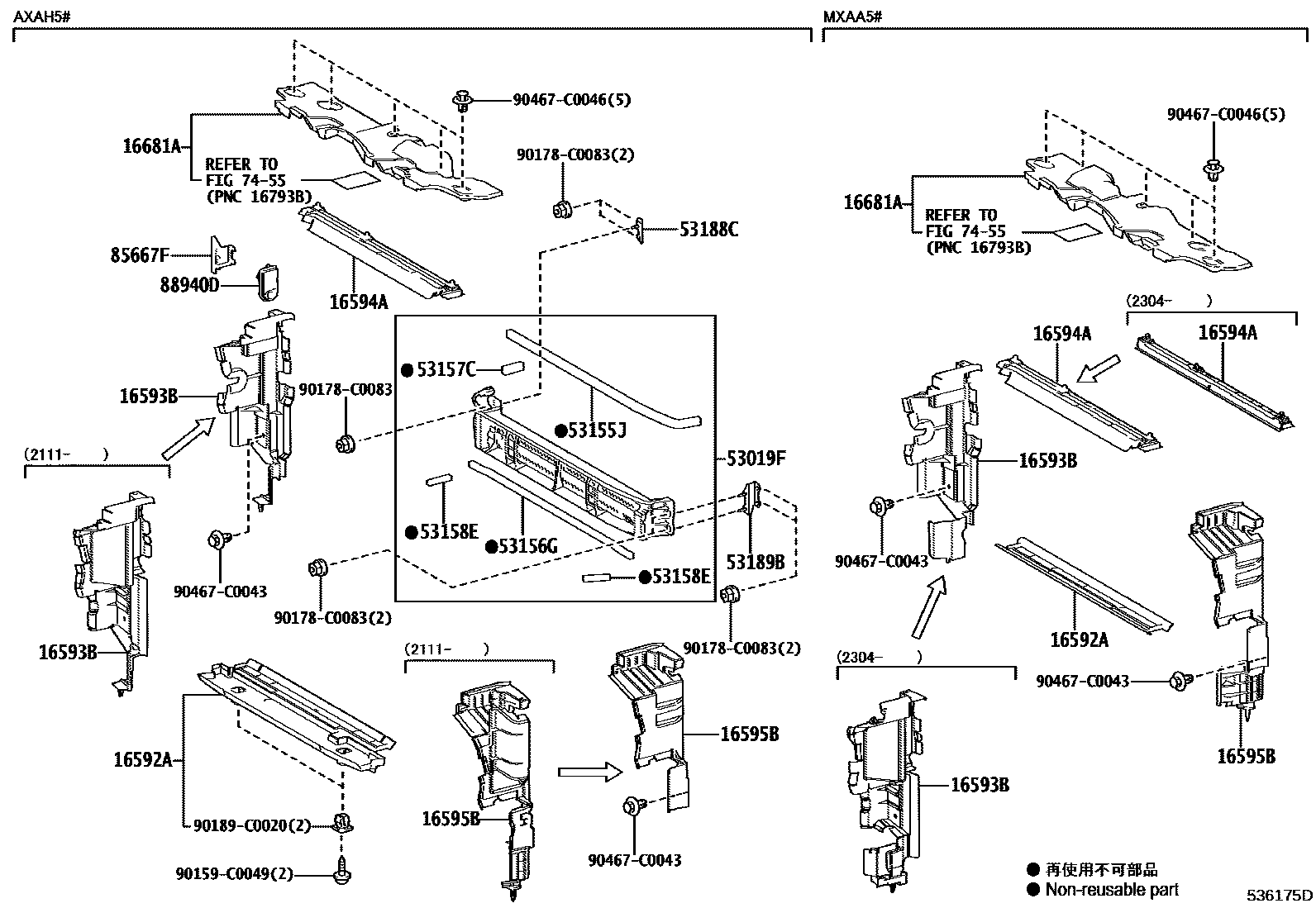

Toyota RAV4 (SFTM) — FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0110iA25..AXAH5#201911-202303

main16592-F2050iM20..MXAA5#201911-202303

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0180iA25..AXAH5#201911-202111

main16593-F0510iA25..AXAH5#202111-202303

main16593-F0600iA25..AXAL5#202409

main16593-F2110iM20..MXAA5#201911-202303

main16593-F2340iM20..MXAA5#202409

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0100iA25,M20..AXAH5#,MXAA5#201911-202303

main16594-F0170iA25,M20..AXAL5#,MXAA5#202409

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0180iA25..AXAH5#201911-202111

main16595-F0530iA25..AXAH5#202111-202303

main16595-F0620iA25..AXAL5#202409

main16595-F2120iM20..MXAA5#201911-202303

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0010iA25..AXAL5#202409

main16681-F2010iM20..MXAA5#202409

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R070iAXAH5#201911-202303

main53019-0R110iAXAL5#202409

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R070iAXAH5#201911-202303

main53155-0R110iAXAL5#202304-202409

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-0R090iAXAH5#201911-202303

main53156-0R130iAXAL5#202409

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-0R020iAXAL5#202409

main53157-0R030iAXAH5#201911-202303

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-0R020×2iAXAH5#201911-202303

53188CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-0R060iAXAH5#201911-202303

53189BBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-0R030iAXAH5#201911-202303

7455

85667FCOVER, MOTOR

main85667-07010iAXAH5#201911-202303

88940DACTUATOR ASSY, SWING GRILLE

main88940-0R010iAXAH5#201911-202210

main88940-0R011iAXAH5#202211-202303

90159C0049

main90159-C0049

90178C0083

main90178-C0083

90189C0020

main90189-C0020

90467C0043

main90467-C0043

90467C0046

main90467-C0046

20 parts on this diagram · 4 diagrams in section
