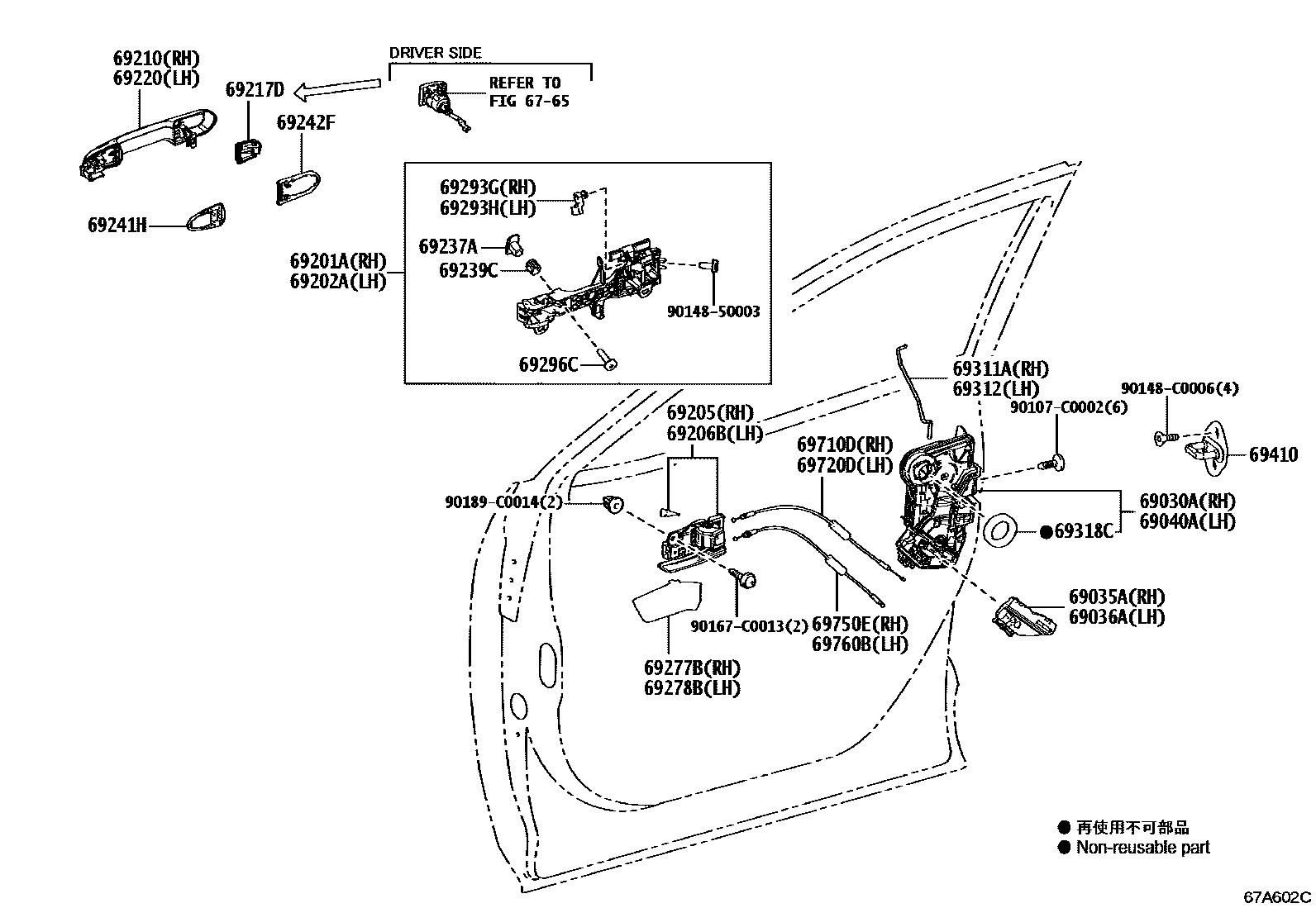

Toyota RAV4 (SFTM) — FRONT DOOR LOCK & HANDLE
6765
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
FTRD INTERIOR PKG HI,BLACK,TRIM2#,4#,8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209 ,2RX
RED MC.,2PN ,2RY ,3T3
AVANT-GARDE BRONZE ME.,2SA ,4V8
URBAN KHAKI,2QU ,6X3
CYAN METALLIC,2QV ,8W9
DK. BLUE MC.,2UQ ,8X8
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
ASH GRAY ME.,1K6
BLACK MC.,209
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209 ,2RX
RED MC.,2PN ,2RY ,3T3
AVANT-GARDE BRONZE ME.,2SA ,4V8
URBAN KHAKI,2QU ,6X3
CYAN METALLIC,2QV ,8W9
DK. BLUE MC.,8X8
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
ASH GRAY ME.,1K6
BLACK MC.,209
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
BLACKISH GREEN CS.GF.,6X8
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90107C0002
main90107-C0002
9014850003
main90148-50003
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0014
main90189-C0014
34 parts on this diagram · 1 diagram in section
