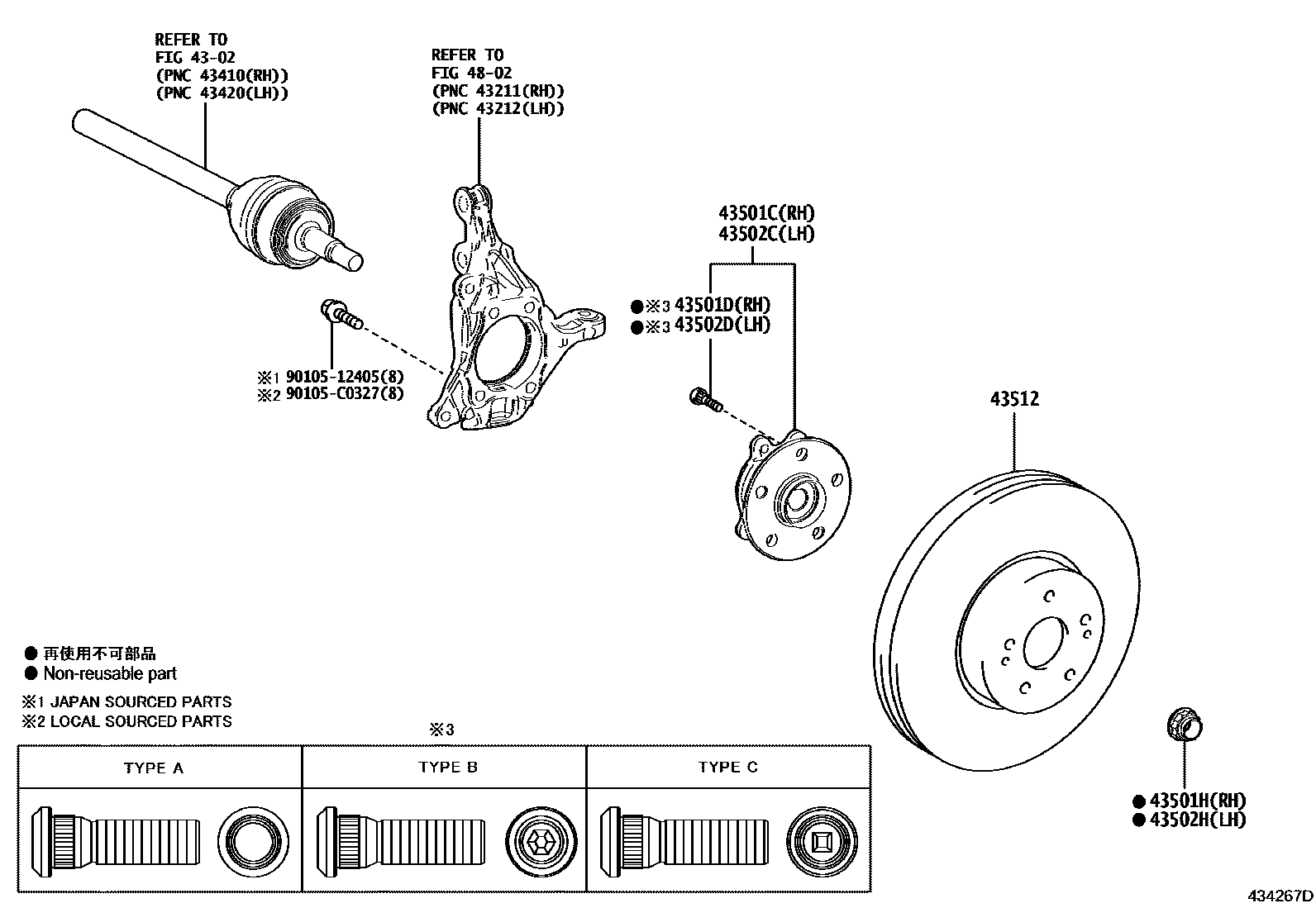

Toyota RAV4 (SFTM) — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-07010i201911-202409

main43550-07020i201911-202303

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i201911-202409

TYPE A:REFER ILLUST.

main90942-02081i201911-202409

TYPE B:REFER ILLUST.

main90942-02082i201911-202409

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201911-202409

(J)

main90177-C0004i201911-202409

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-07010i201911-202409

main43550-07020i201911-202303

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i201911-202409

TYPE A:REFER ILLUST.

main90942-02081i201911-202409

TYPE B:REFER ILLUST.

main90942-02082i201911-202409

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201911-202409

(J)

main90177-C0004i201911-202409

(L)

43512DISC, FRONT

main43512-F4030i201911-202409

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota RAV4 (SFTM)

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RAV4 (SFTM). Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
