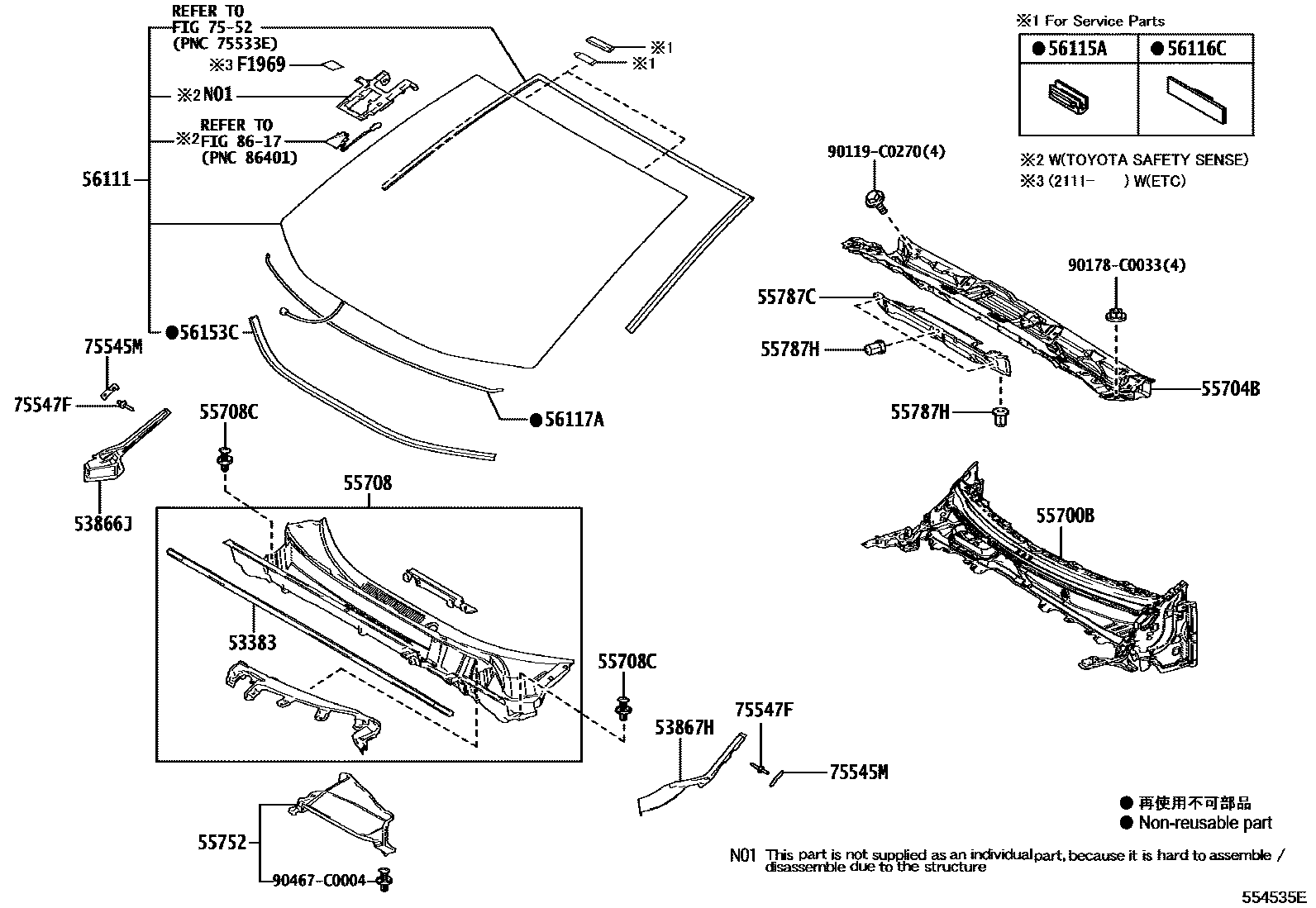

Toyota RAV4 (SFTM) — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0R060iAXAH5#,MXAA5#201911-202303

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0R070iAXAL5#,MXAA5#202304-202310

main53866-0R071iAXAL5#,MXAA5#202409

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0R070iAXAH5#,MXAA5#201911-202303

main53867-0R071iAXAL5#,MXAA5#202409

55700BCOWL ASSY

main55700-0R060iAXAL5#,MXAA5#202304-202409

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0R040iAXAL5#,MXAA5#202409

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0R070iAXAL5#,MXAA5#202409

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iAXAH5#,MXAA5#201911-202211

main90467-C0071×2iAXAL5#,MXAA5#202409

55752SHIELD, COWL VENTILATOR SPLASH

main55752-0R040iAXAL5#,MXAA5#202409

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0R070iAXAL5#,MXAA5#202409

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06188×4iAXAL5#,MXAA5#202409

(J)

main90467-C0003×4iAXAL5#,MXAA5#202304-202409

(L)

56111GLASS, WINDSHIELD

main56101-0R420iMXAA5#..G202409

MARK=CCC E000137

main56101-0R430iAXAH5#..G201911-202111

MARK=CCC E000137

main56101-0R440iAXAL5#,MXAA5#..M,X202409

MARK=CCC E000137

main56101-0R610iMXAA5#..G202304-202409

MARK=CCC E000011

main56101-0R620iAXAH5#..G201911-202111

MARK=CCC E000011

main56101-0R630iAXAL5#,MXAA5#..M,X202304-202409

MARK=CCC E000011

main56101-0R820iAXAL52..G202304-202409

main56101-0RA00iAXAL54..G202304-202409

main56101-0R560supersedes 56101-0R640iAXAH5#..M202111-202303

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000137

main56101-0R570supersedes 56101-0R640iAXAH5#..M201911-202111

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000137

main56101-0R670supersedes 56101-0R640iAXAH5#..M202111-202303

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000011

main56101-0R680supersedes 56101-0R640iAXAH5#..M201911-202111

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000011

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAXAL5#,MXAA5#202409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXAL5#,MXAA5#202409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0R060iAXAH5#,MXAA5#..M,X201911-202303

L=1380,TOYOTA SAFETY SENSE-WITHOUT

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-0R030iAXAH5#,MXAA5#201911-202303

7552

75545MCLIP, WINDSHIELD OUTSIDE MOULDING

main75545-42010×2iAXAL5#,MXAA5#202304-202409

75547FCLIP, WINDSHIELD OUTSIDE MOULDING

main75547-0N010×2iAXAL5#,MXAA5#202409

main75547-51021×2iAXAH5#,MXAA5#201911-202209

8617

F1969TAPE, SEAL(FOR TOLL COLLECTION COMPUTER)

mainF1969YY010iAXAH5#,MXAA5#202111-202303

ETC-WITH

90119C0270

main90119-C0270

90178C0033

main90178-C0033

90467C0004

main90467-C0004

23 parts on this diagram · 1 diagram in section
