Toyota RAV4 (SFTM) — ABS & VSC

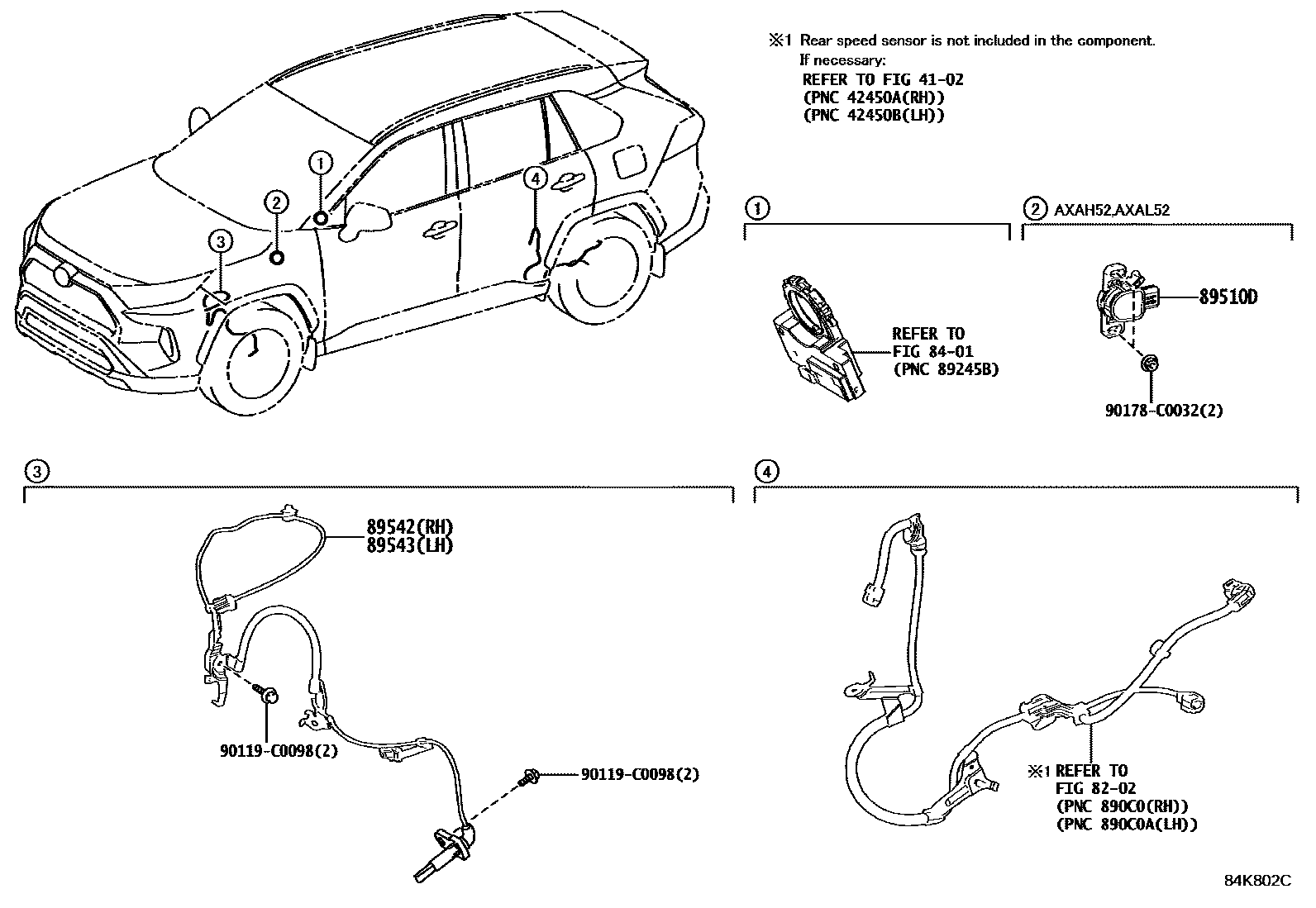

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-02020i202304-202409

main89510-0R020i202006-202303

main89510-0R040i202409

main89510-33030i201911-202005

89542SENSOR, SPEED, FRONT RH

main89542-0R050i201911-202303

89543SENSOR, SPEED, FRONT LH

main89543-0R050i202409

90119C0098

main90119-C0098

90178C0032

main90178-C0032

8 parts on this diagram · 3 diagrams in section

ABS & VSC for Toyota RAV4 (SFTM)

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota RAV4 (SFTM). Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH.
