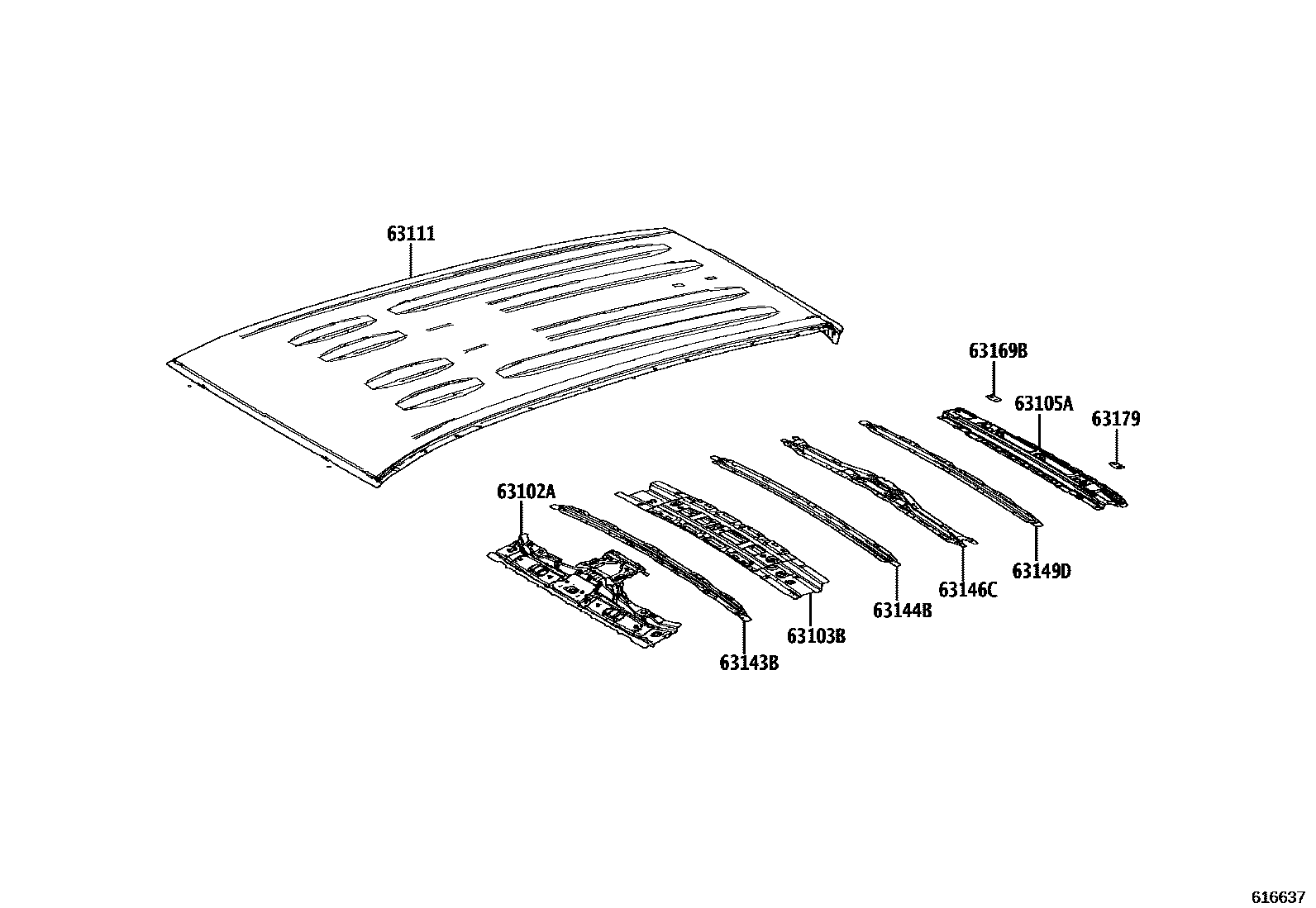

Toyota RAV4 PHV — ROOF PANEL & BACK PANEL

0001 1�������(�������) 0002 1�������(��������) 0003 1�������� 0004 1������ 0005 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42160supersedes 63102-42910iAXAP54202006-202210

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42040iAXAP54202006-202210

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42050iAXAP54202006-202210

63111PANEL, ROOF

main63111-42260iAXAP54202006-202112

main63111-42261iAXAP54202112-202210

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42070iAXAP54202006-202210

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42050iAXAP54202006-202210

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-42010iAXAP54202006-202210

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42080iAXAP54202006-202210

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAXAP54202006-202210

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iAXAP54202006-202210

10 parts on this diagram · 5 diagrams in section
