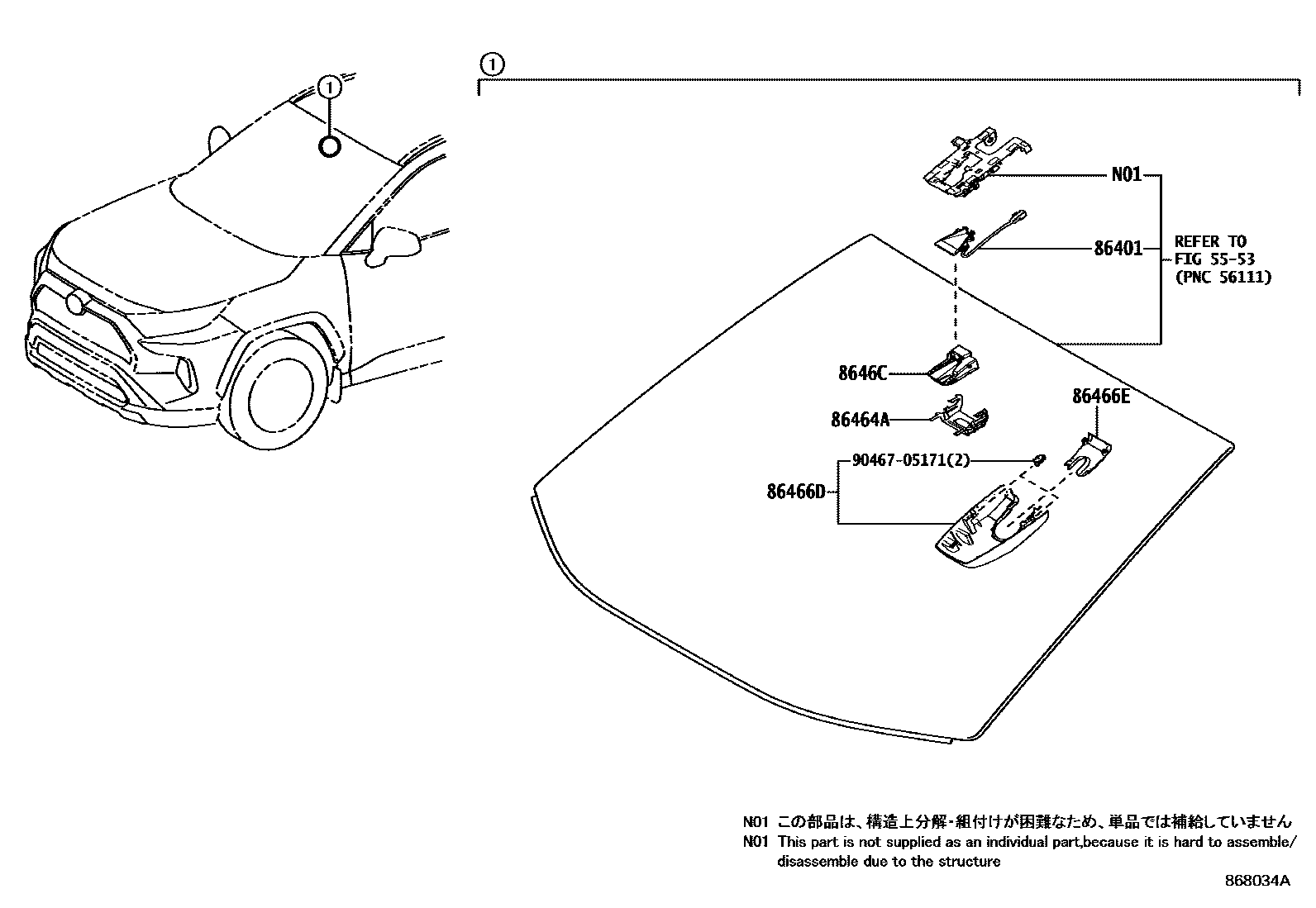

Toyota RAV4 PHV — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-42041iAXAP54202210

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXAP54202210

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060iAXAP54202006-202210

main86466-48170supersedes 86466-42060iAXAP54..Z202310

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42130supersedes 86466-42070iAXAP54..BLT202006-202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-42050iAXAP54202210

main8646C-42051iAXAP54..Z202501

main8646C-42080iAXAP54202006-202101

main8646C-42081iAXAP54202101-202210

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
