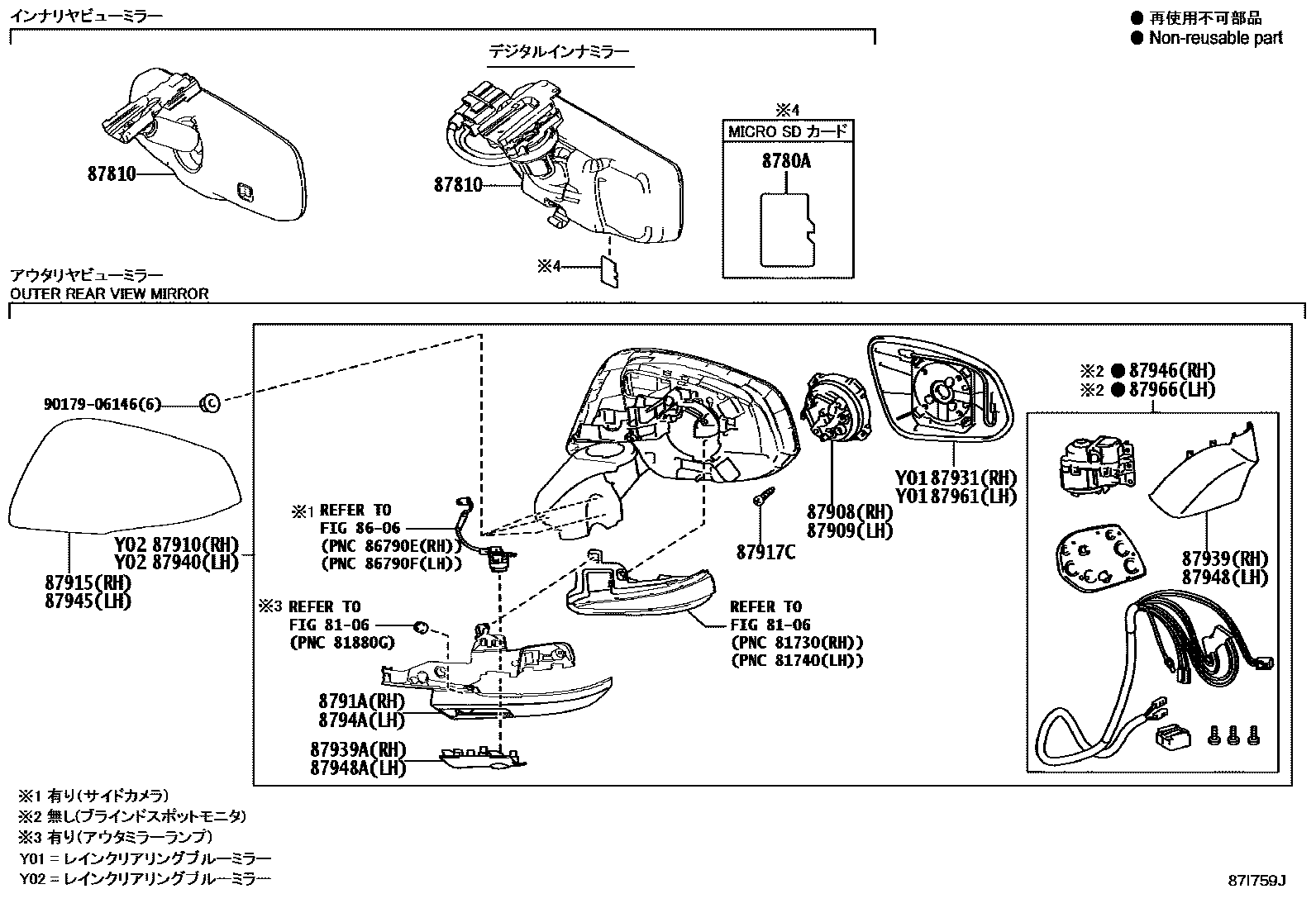

Toyota RAV4 PHV — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

8780AMEMORY CARD SET, INNER REAR VIEW MIRROR

main8780A-42010i202210-202310

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WZ20supersedes 87840-0W140i202006-202210

main87840-0W210supersedes 87840-0W140i202210-202310

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-42M50i202310

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-42M50i202208-202209

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42F70i202006-202101

main87910-42K70i202112-202208

main87910-42K71i202208-202210

main87910-42L10i202101-202112

main87910-42L40supersedes 87910-42M60i202210-202310

main87910-42L41i202310

main87910-42F60supersedes 87910-42M60i202006-202012

main87910-42F61supersedes 87910-42M60i202101-202204

main87910-42M50supersedes 87910-42M60i202210

main87910-42M60i202204-202210

87915COVER, OUTER MIRROR, RH

main87915-42200-A1i202006-202210

WHITE PEARL CS.,070

main87915-42200-A2i202210-202310

PLATINUM WHITE PEARL MC.,089

main87915-42200-B0i202006-202210

SILVER ME.,1D6

main87915-42200-B1i202210-202310

GRAY ME.,1G3

main87915-42200-C1i202310

ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC

main87915-42200-J1i202210

DK. BLUE MC.,8X8

main87915-42220-D1i202210-202310

EMOTIONAL RED 2,3U5

87917CSCREW, OUTER MIRROR

main87917-15010×12i202006-202101

8791ACOVER, OUTER MIRROR, RH NO.2

main8791B-42E50supersedes 8791B-42E40i202006-202210

87931OUTER MIRROR, RH

main87931-42F60supersedes 87931-42F50i202006-202210

87939COVER, OUTER MIRROR HOLE, RH

main87939-42F50i202210-202310

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-42E60i202008-202210

main87939-42L20i202310

main87939-42E50i202210

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42F40i202006-202101

main87940-42K60i202112-202208

main87940-42K61i202208-202210

main87940-42L00i202101-202112

main87940-42L30supersedes 87940-42M50i202210-202310

main87940-42L31i202310

main87940-42F60supersedes 87940-42M50i202006-202012

main87940-42F61supersedes 87940-42M50i202101-202204

main87940-42M50i202204-202210

main87940-42M60supersedes 87940-42M50i202210

87945COVER, OUTER MIRROR, LH

main87945-42200-A1i202006-202210

WHITE PEARL CS.,070

main87945-42200-A2i202310

PLATINUM WHITE PEARL MC.,089

main87945-42200-B0i202210-202310

SILVER ME.,1D6

main87945-42200-B1i202210

GRAY ME.,1G3

main87945-42200-C1i202210-202310

ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC

main87945-42200-J1i202210-202310

DK. BLUE MC.,8X8

main87945-42220-D1i202006-202210

EMOTIONAL RED 2,3U5

87946RETRACTOR, OUTER MIRROR, RH

main87946-42F80i202210

87948COVER, OUTER MIRROR HOLE, LH

main87948-42F20i202006-202210

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-42E30i202008-202210

main87948-42L10i202210-202310

main87948-42E20i202006-202210

8794ACOVER, OUTER MIRROR, LH NO.2

main8794B-42E20i202310

main8794A-42F60supersedes 8794A-42F50i202210

87961MIRROR OUTER, LH

main87961-42F30supersedes 87961-42F50i202006-202210

main87961-42F60supersedes 87961-42F50i202210

87966RETRACTOR, OUTER MIRROR, LH

main87966-42F80i202006-202210

9017906146

main90179-06146

22 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4 PHV

This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota RAV4 PHV. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MEMORY CARD SET, INNER REAR VIEW MIRROR, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH.
