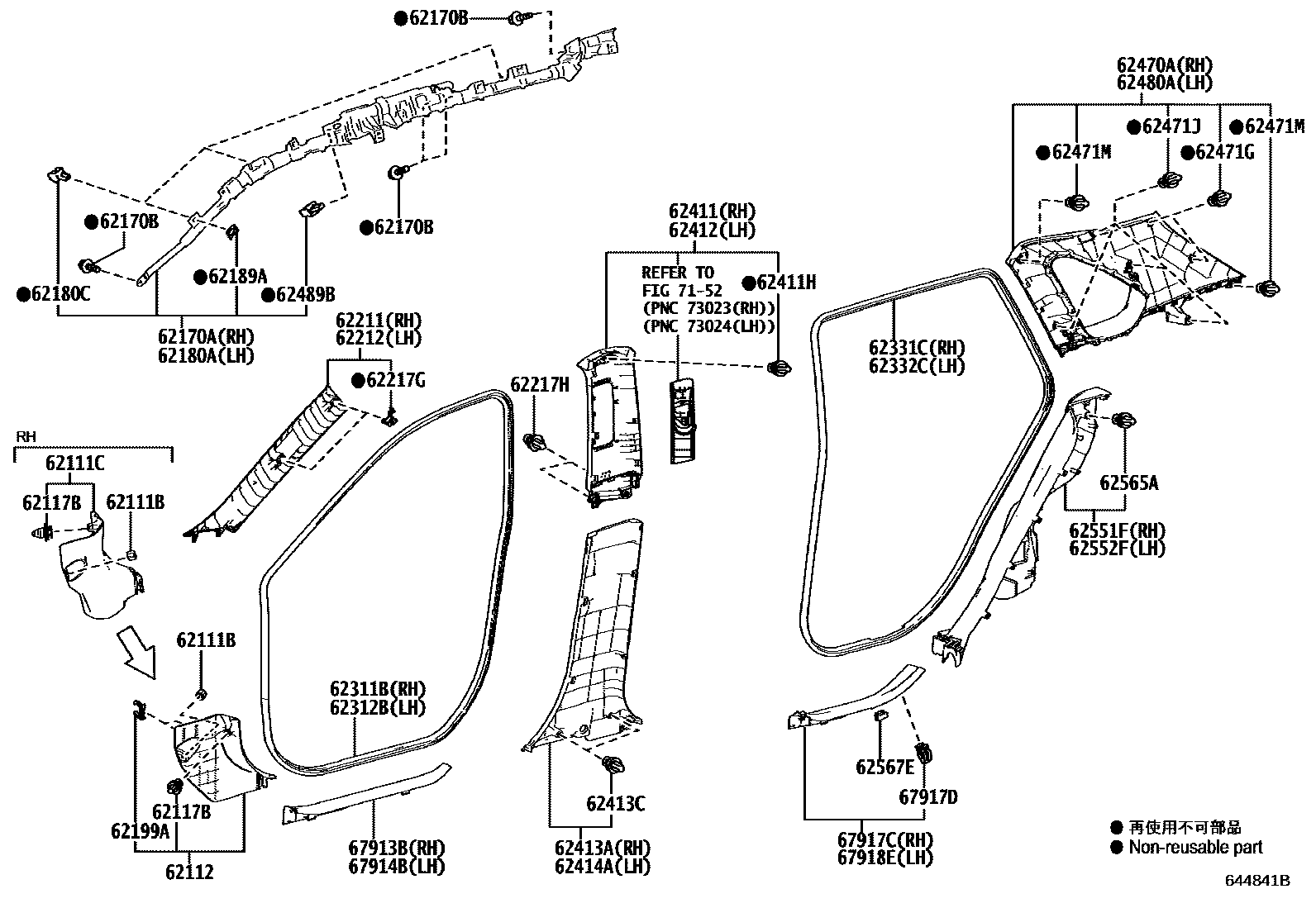

Toyota RAV4 PHV — INSIDE TRIM BOARD

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06155×2i202210-202310

62111CBOARD, COWL SIDE TRIM, RH

main62111-42080-C0i202006-202210

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-42080-C0i202006-202210

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161×2i202006-202210

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-42070i202006-202207

main62170-42071i202208-202210

62170BBOLT, W/WASHER

main91673-80616×8i202006-202210

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-42070i202006-202207

main62180-42071i202208-202210

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017×6i202006-202210

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×2i202006-202210

62199AHOLDER, FUSEE

main62199-48010×2i202006-202210

62211GARNISH, FRONT PILLAR, RH

main62210-42160-C0i202210

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-42150-C0i202310

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4i202310-202311

main62217-42060×4i202312

62217HCLIP, CENTER PILLER GARNISH

main90467-10216×4i202210

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42110i202006-202210

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42110i202006-202210

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-42100i202006-202210

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-42090i202006-202210

62411GARNISH, CENTER PILLAR, RH

main62410-42110-C2i202310

BLACK,TRIM2#

62411HCLIP

main90467-10167×2i202006-202210

62412GARNISH, CENTER PILLAR, LH

main62420-42110-C2i202006-202210

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-42090-C0i202006-202210

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4i202006-202210

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-42090-C0i202006-202210

BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-42180-C0i202006-202210

BLACK,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-10167×4i202006-202210

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240×8i202006-202210

62471MCLIP

main90467-10161×4i202006-202210

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-42190-C0i202006-202210

BLACK,TRIM2#

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010×2i202006-202210

62551FGARNISH, REAR SEAT SIDE, RH

main62555-42070-C0i202006-202210

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62556-42090-C0i202006-202210

BLACK,TRIM2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-09240×2i202006-202210

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2i202006-202210

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-42130-C0i202006-202210

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-42130-C0i202006-202210

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-42110-C0i202006-202210

BLACK,TRIM2#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-05171×2i202006-202210

67918EPLATE, REAR DOOR SCUFF, LH

main67918-42110-C0i202006-202210

BLACK,TRIM2#

7152SEAT BELT

→ Go to FIG 71-52

40 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD for Toyota RAV4 PHV

This section contains 40 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota RAV4 PHV. Key components include: CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, CLIP, NO.1(FOR COWL SIDE TRIM), AIRBAG ASSY, CURTAIN SHIELD, RH.
