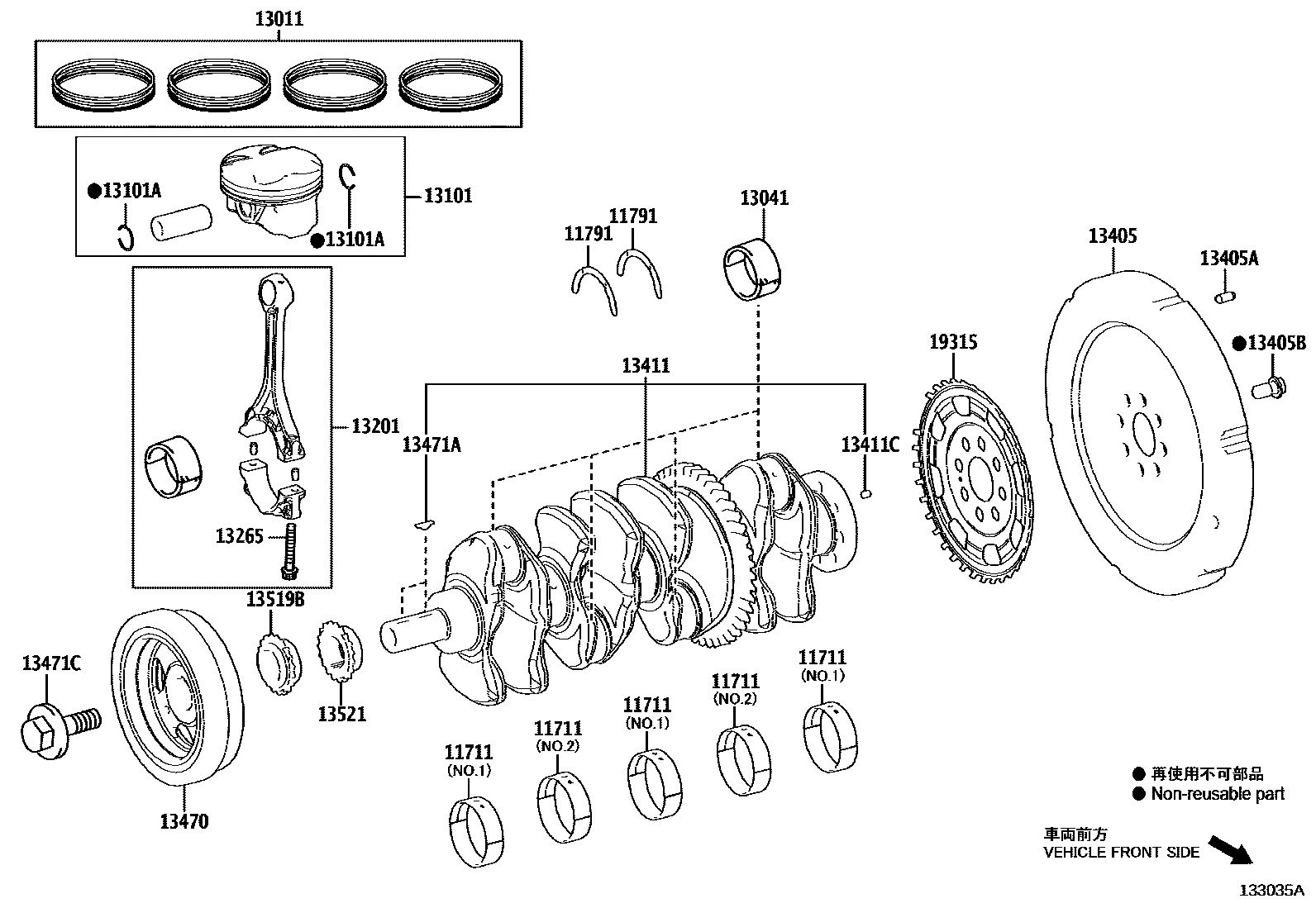

Toyota RAV4 PHV — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-25010-01×5i202210

main11701-25010-02×5i202310

main11701-25010-03×5i202111-202210

main11701-25010-04×3i202006-202111

main11701-25010-05×5i202111-202210

main11701-25020-01×2i202006-202111

main11701-25020-02×2i202006-202111

main11701-25020-03×2i202006-202111

main11701-25020-04×2i202006-202111

main11701-25020-05×2i202006-202111

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25030×2i202006-202102

main11791-25040×2i202210-202310

13011RING SET, PISTON

main13011-25080i202006-202210

13041BEARING, CONNECTING ROD

main13041-25020-01×4i202210-202310

main13041-25020-02×4i202210-202310

main13041-25020-03×4i202210-202310

13101PISTON SUB-ASSY, W/PIN

main13101-25040×4i202210

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8i202006-202210

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4i202006-202210

main13201-29815-B0×4i202210-202310

main13201-29815-C0×4i202210-202310

13265BOLT, CONNECTING ROD

main13265-25020×8i202006-202210

13405FLYWHEEL SUB-ASSY

main13451-25030i202310

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i202006-202210

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8i202006-202210

13411CRANKSHAFT

main13401-25010i202006-202210

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202006-202210

13470PULLEY ASSY, CRANKSHAFT

main13470-25020i202006-202210

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202006-202210

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202006-202210

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010i202006-202210

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010i202006-202210

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011i202006-202210

19 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota RAV4 PHV

This section contains 19 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RAV4 PHV. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
