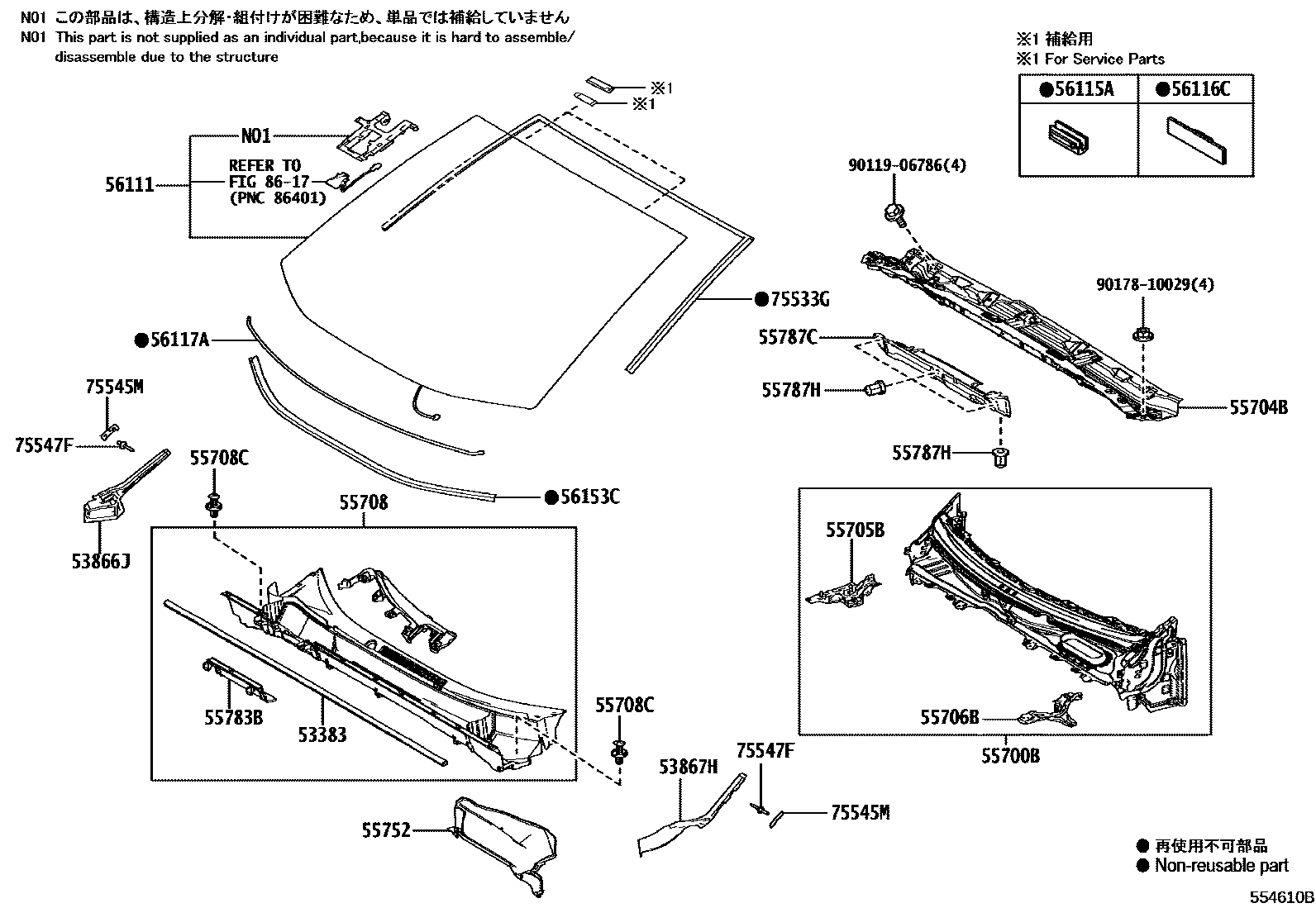

Toyota RAV4 PHV — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-42050i202310

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-42041i202006-202210

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-42041i202310

55700BCOWL ASSY

main55700-42510i202310

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-42020i202210-202310

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42080i202006-202210

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42060i202210-202310

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-42250i202310

main55708-42260supersedes 55708-42250i202006-202107

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2i202006-202210

55752SHIELD, COWL VENTILATOR SPLASH

main55752-42030i202210-202310

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-42080i202210

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-42070i202210-202310

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06158-C0×4i202006-202210

BLACK

56111GLASS, WINDSHIELD

main56101-42953supersedes 56101-42952i202006-202210

main56101-42960supersedes 56101-42959i202006-202210

main56101-4A919supersedes 56101-4A918i202210

main56101-4A923supersedes 56101-4A918i202210

main56101-4A924supersedes 56101-4A925i202310

main56101-4A927supersedes 56101-4A918i202210

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i202310

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i202310

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140i202210

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-42020i202210

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-42070i202210

main75533-42090i202310

75545MCLIP, WINDSHIELD OUTSIDE MOULDING

main75545-42010×2i202006-202210

75547FCLIP, WINDSHIELD OUTSIDE MOULDING

main75547-51021×2i202006-202210

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9011906786

main90119-06786

9017810029

main90178-10029

24 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota RAV4 PHV

This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota RAV4 PHV. Key components include: SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, COWL ASSY, PANEL SUB-ASSY, COWL VENTILATOR.
