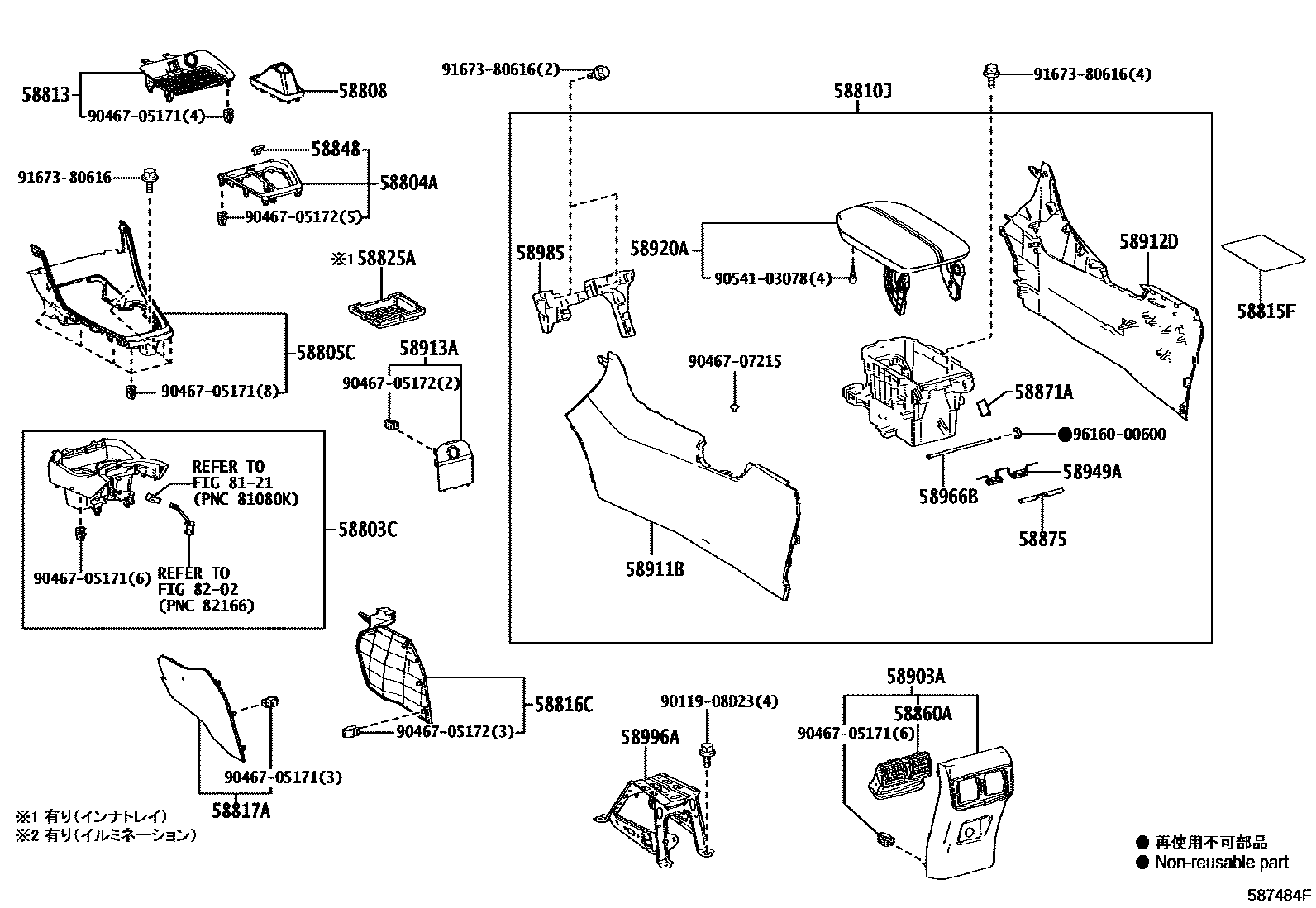

Toyota RAV4 PHV — CONSOLE BOX & BRACKET
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
58813BOX, CONSOLE, UPPER
58815FCARPET, CONSOLE BOX
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
58825APOCKET, CONSOLE BOX
58848COVER, SHIFT LEVER HOLE
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM2#
58871ACUSHION, CONSOLE BOX, NO.2
58875SPACER, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
58911BPANEL, BOX, NO.1
BLACK,TRIM2#
58912DPANEL, BOX, NO.2
BLACK,TRIM2#
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM2#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58985RETAINER, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046707215
main90467-07215
9054103078
main90541-03078
9167380616
main91673-80616
9616000600
main96160-00600
32 parts on this diagram · 1 diagram in section
