Toyota RAV4 PHV — ACCELERATOR LINK

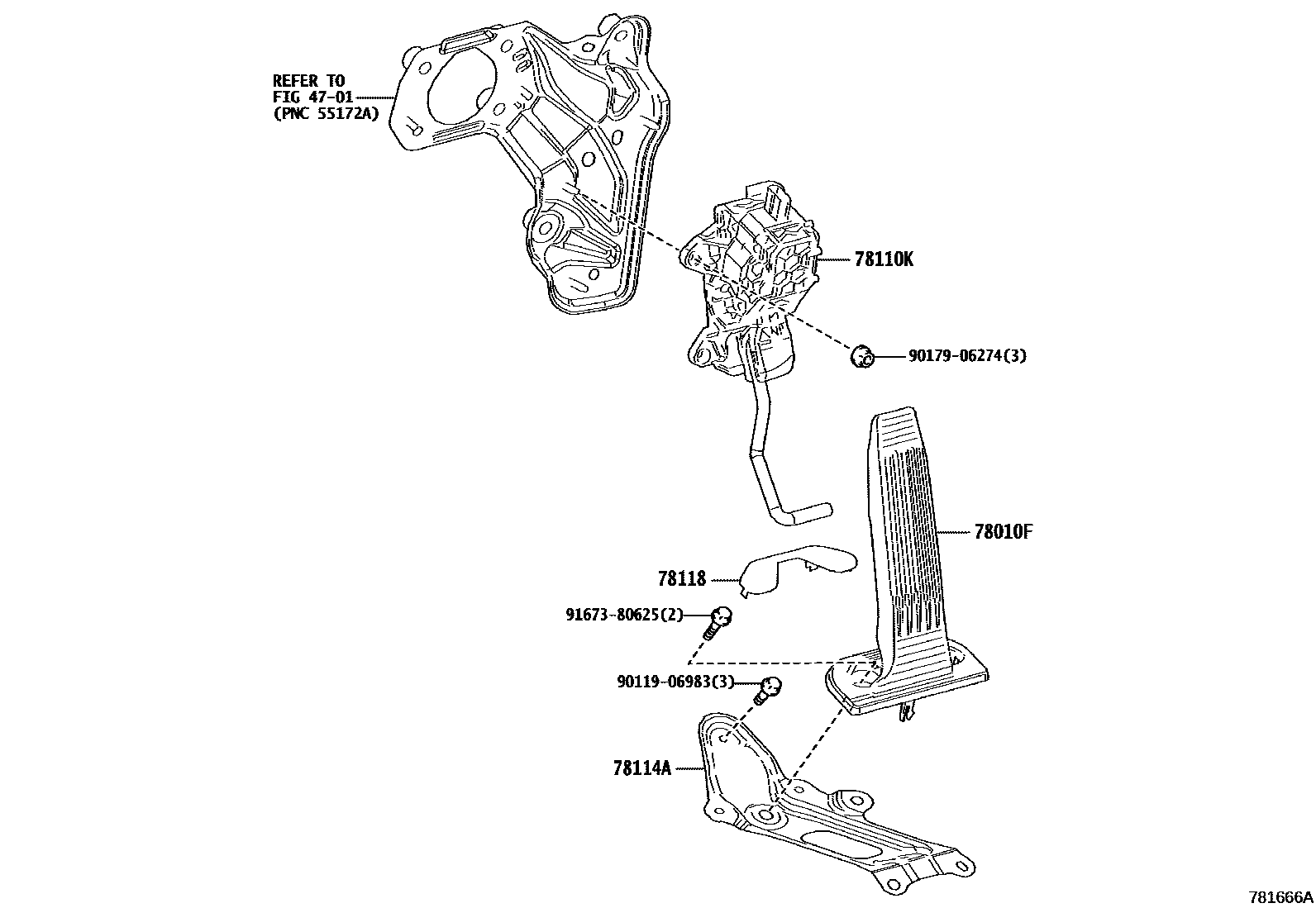

Parts diagram

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-33060i202006-202111

main78101-33061i202112-202310

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-42060i202006-202010

main78110-42061i202011-202310

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-42030i202006-202310

78118PAD, ACCELERATOR PEDAL

main78117-33020i202006-202310

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota RAV4 PHV

This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RAV4 PHV. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), BRACKET, ACCELERATOR PEDAL SUPPORT, PAD, ACCELERATOR PEDAL.
