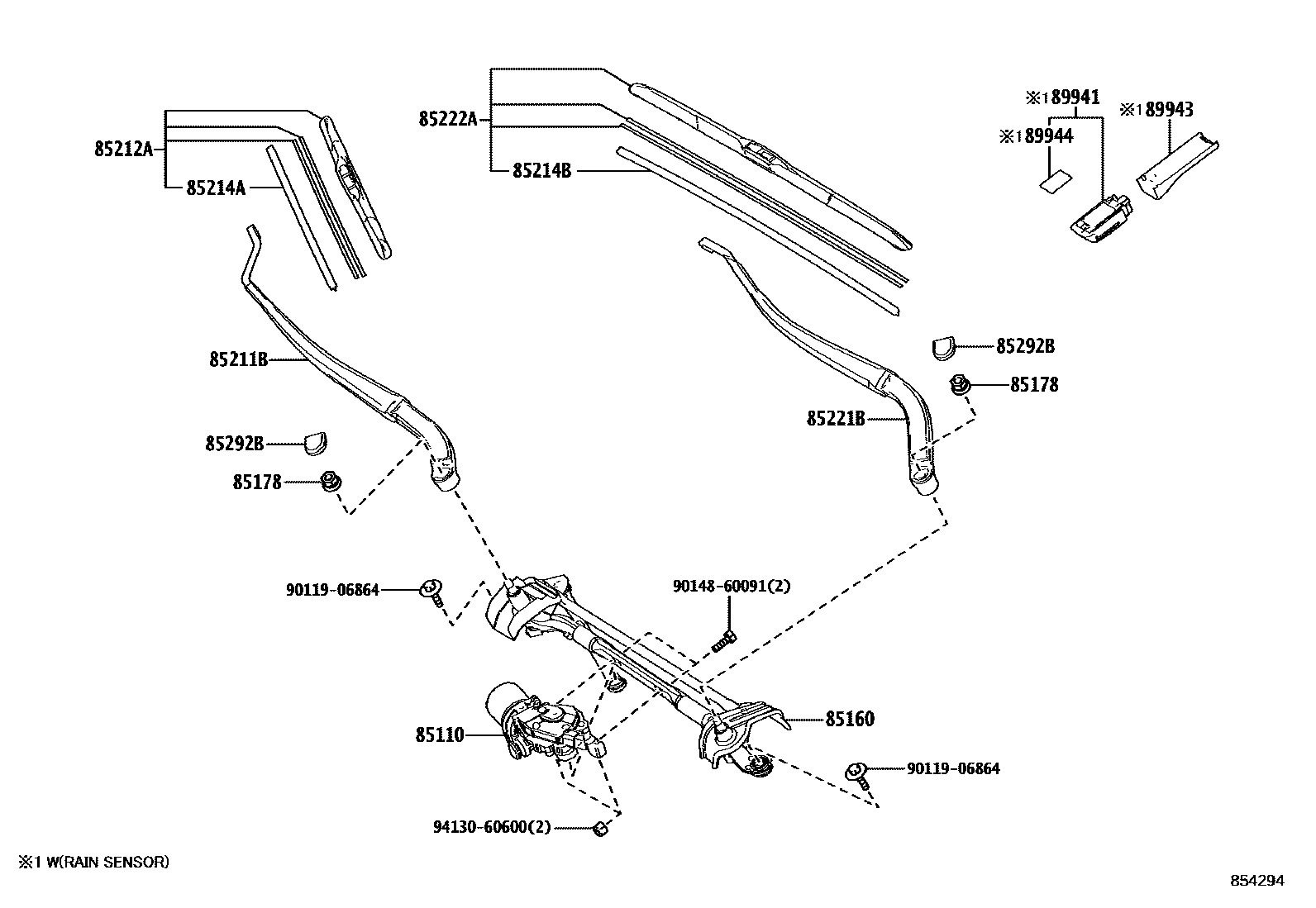

Toyota RAV4 PHEV — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42260i202006-202310

85160LINK ASSY, WINDSHIELD WIPER

main85150-42240i202006-202310

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006i202006-202310

85211BARM, FRONT WIPER, RH

main85211-42210i202006-202310

85212ABLADE, FR WIPER, RH

main85212-42190i202006-202310

85214ARUBBER, WIPER, RH

main85214-28090i202006-202310

85214BRUBBER, WIPER, LH

main85214-52110i202006-202310

85221BARM, FRONT WIPER, LH

main85221-42210i202006-202310

85222ABLADE, FR WIPER, LH

main85222-42180i202006-202310

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i202006-202310

89941SENSOR, RAIN

main89941-42020i202112-202210

main89941-42020i202210-202310

COLD AREA SPEC-WITH

89943COVER, RAIN SENSOR

main89943-42040i202112-202210

main89943-42040i202210-202310

COLD AREA SPEC-WITH

89944TAPE, RAIN SENSOR

main89944-42020i202112-202210

main89944-42020i202210-202310

COLD AREA SPEC-WITH

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RAV4 PHEV

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAV4 PHEV. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
