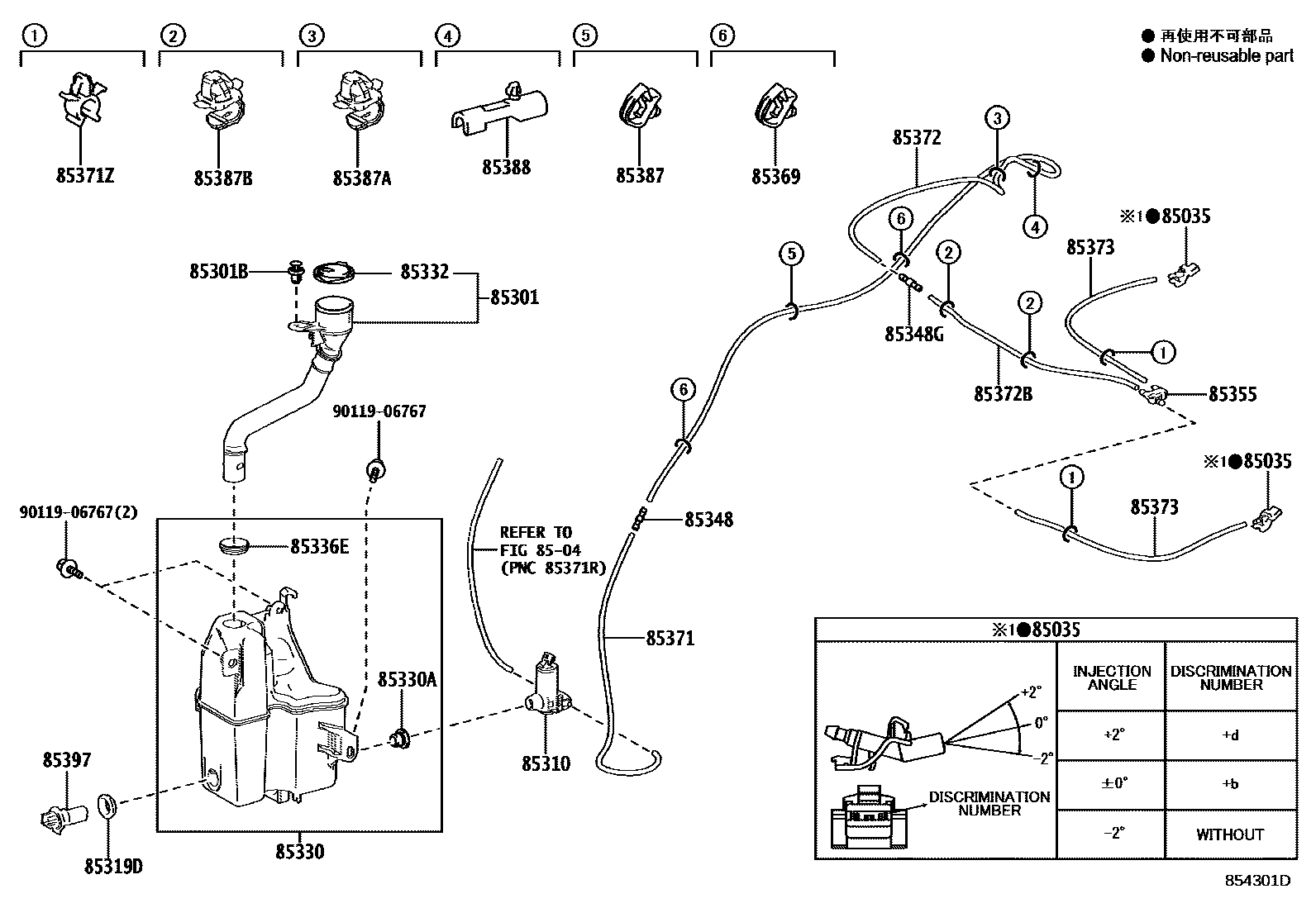

Toyota RAV4 PHEV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iAXAP54202210-202310

ANGLE 0

sub85381-0K070

main85381-30230×2iAXAP54202006-202210

ANGLE -2

sub85381-0K080

main85381-30240×2iAXAP54202006-202210

ANGLE +2

8504

85301INLET SUB-ASSY, WASHER

main85301-42031iAXAP54202006-202210

85301BCLIP, WASHER

main90467-07215iAXAP54202006-202210

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iAXAP54202006-202210

85319DPACKING, FRONT WASHER

main85319-33230iAXAP54202006-202210

85330JAR ASSY, WINDSHIELD WASHER

main85315-42410iAXAP54202006-202210

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAXAP54202006-202210

85332CAP, WINDSHIELD WASHER JAR

main85316-42031iAXAP54202006-202210

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iAXAP54202006-202210

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAXAP54202006-202210

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iAXAP54202210-202310

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAXAP54202006-202210

85369CLAMP

main82711-16790×2iAXAP54202006-202210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAXAP54202006-202210

L=1450(*H,L=590)

85371ZCLAMP, WASHER HOSE

main90469-07011×2iAXAP54202006-202210

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iAXAP54202006-202210

L=1690

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAXAP54202006-202210

L=1450(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iAXAP54202006-202210

L=1450(*H,L=470)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35520iAXAP54202006-202210

85387ACLAMP, WASHER, NO.2

main85371-12040iAXAP54202006-202210

85387BCLAMP, WASHER, NO.3

main85371-12040×2iAXAP54202006-202210

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85387-42280iAXAP54202006-202210

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iAXAP54202006-202210

9011906767

main90119-06767

25 parts on this diagram · 1 diagram in section
