Toyota RAV4 PHEV — MOUNTING
12281BHANGER, ENGINE, NO.1
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12318STAY, ENGINE MOUNTING, LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12341SPACER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
23825AGUARD, FUEL DELIVERY
9011906A16
main90119-06A16
9011910996
main90119-10996
9011910999
main90119-10999
9011912439
main90119-12439
9011912440
main90119-12440
9017810039
main90178-10039
9017812027
main90178-12027
91552F1040
main91552-F1040
91552F1090
main91552-F1090
91553G1040
main91553-G1040

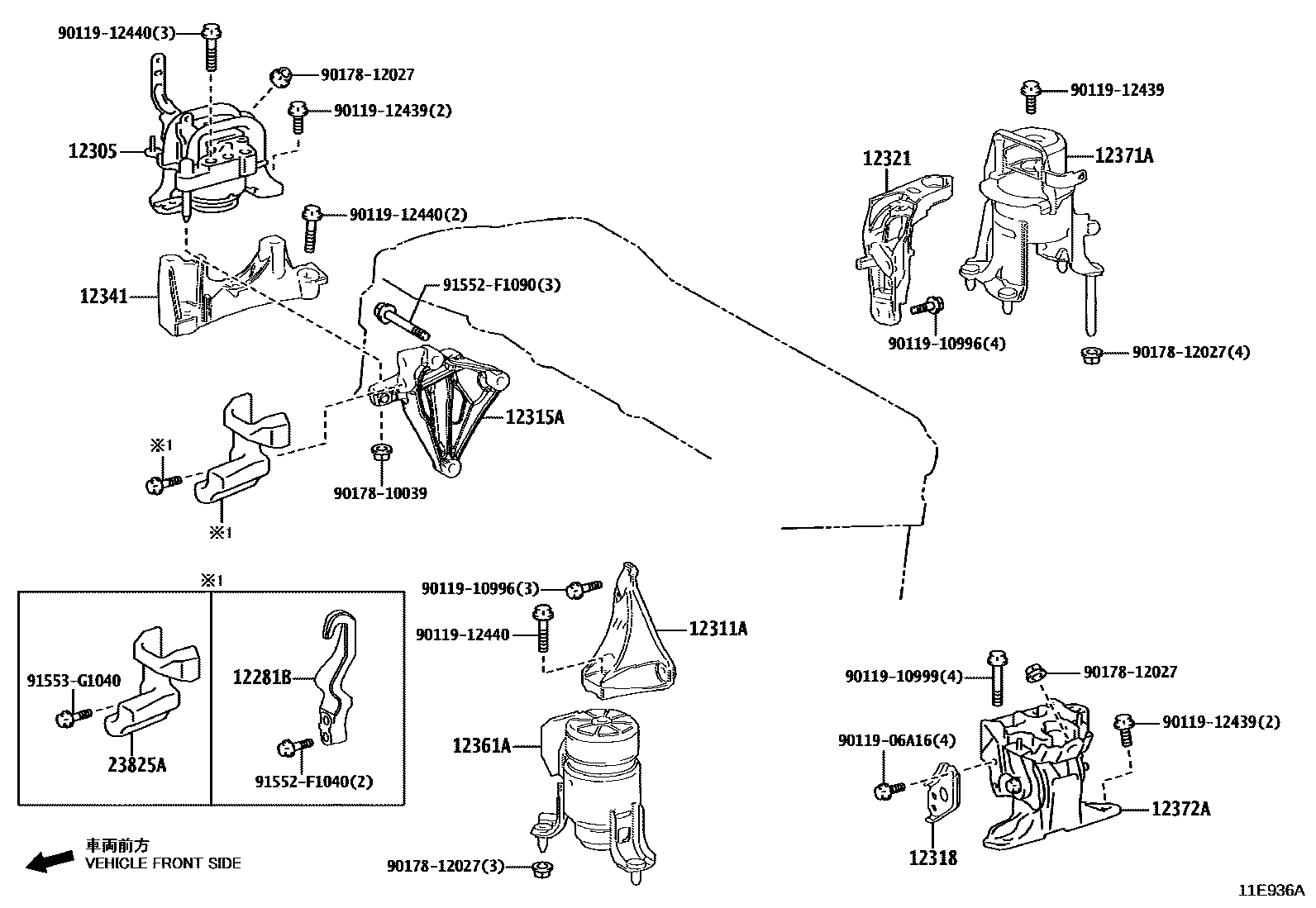

21 parts on this diagram · 1 diagram in section
MOUNTING for Toyota RAV4 PHEV
This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota RAV4 PHEV. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH.
