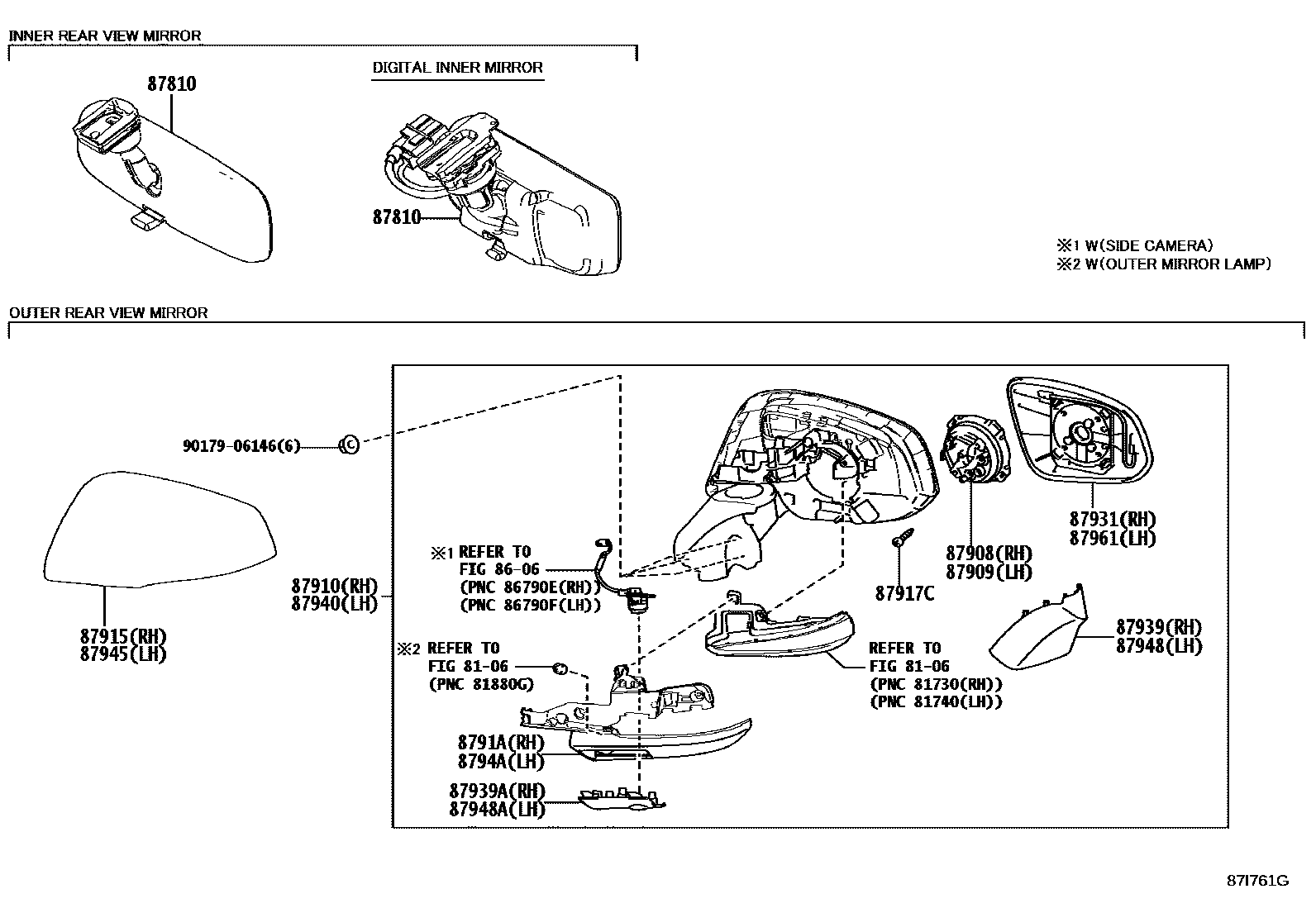

Toyota RAV4 PHEV — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK
KOREA SPEC&REAR SIDE GLASS-UV-CUT(GREEN)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE &BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE &BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
DK. BLUE MC.,8X8
EMOTIONAL RED 2,3U5
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87939ACOVER, OUTER MIRROR HOLE, RH
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-6SPEAKER & 9INCH DISPLAY T2& XM (USA)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL & 9INCH DISPLAY T2 & XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE &BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE &BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
NO PAINT REQ.,KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
DK. BLUE MC.,8X8
EMOTIONAL RED 2,3U5
87948COVER, OUTER MIRROR HOLE, LH
87948ACOVER, OUTER MIRROR HOLE, LH
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
8794ACOVER, OUTER MIRROR, LH NO.2
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PHV PREMIUM PACKAGE(PANORAMIC *MR)&AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87961MIRROR OUTER, LH
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
9017906146
main90179-06146
19 parts on this diagram · 1 diagram in section
MIRROR for Toyota RAV4 PHEV
This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota RAV4 PHEV. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
