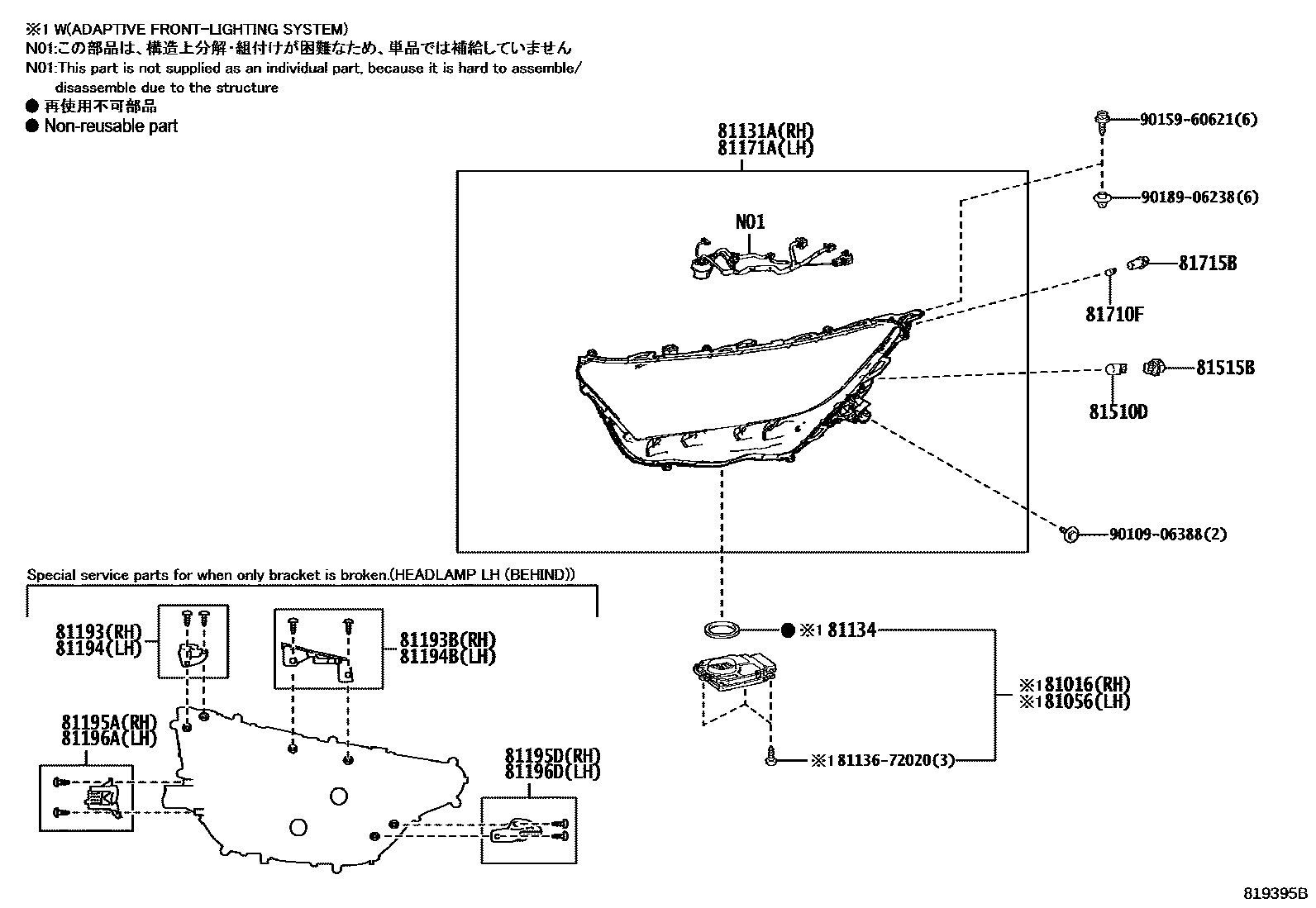

Toyota RAV4 PHEV — HEADLAMP

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-42B20i202006-202112

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

main81016-42E20i202210-202310

KOREA SPEC

main81016-42G00i202310

KOREA SPEC

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-42B20i202006-202112

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

main81056-42E20i202210-202310

KOREA SPEC

main81056-42G00i202310

KOREA SPEC

81131AUNIT, HEADLAMP, RH

main81130-42B10i202006-202101

main81130-42B11i202101-202112

main81130-42D90i202112-202210

main81130-42B20i202006-202101

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

main81130-42B21i202101-202112

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

81134GASKET, HEADLAMP

main81134-42830×2i202006-202112

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

81171AUNIT, HEADLAMP, LH

main81170-42B10i202006-202101

main81170-42B11i202101-202112

main81170-42D90i202210-202310

main81170-42B20i202006-202101

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

main81170-42B21i202101-202112

PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050i202006-202210

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060i202006-202210

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050i202006-202210

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060i202006-202210

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050i202006-202210

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060i202006-202210

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050i202006-202210

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060i202006-202210

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15025×2i202006-202112

12V 28/8W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60083×2i202006-202112

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11064×2i202006-202112

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main81138-22680×2i202006-202112

8113672020PROTECTOR, HEADLAMP, NO.1 RH

main81136-72020

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

21 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota RAV4 PHEV

This section contains 37 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4 PHEV. Key components include: COMPUTER SUB-ASSY, HEADLAMP, RH NO.1, COMPUTER SUB-ASSY, HEADLAMP, LH NO.1, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, LENS SUB-ASSY, HEADLAMP, RH.
