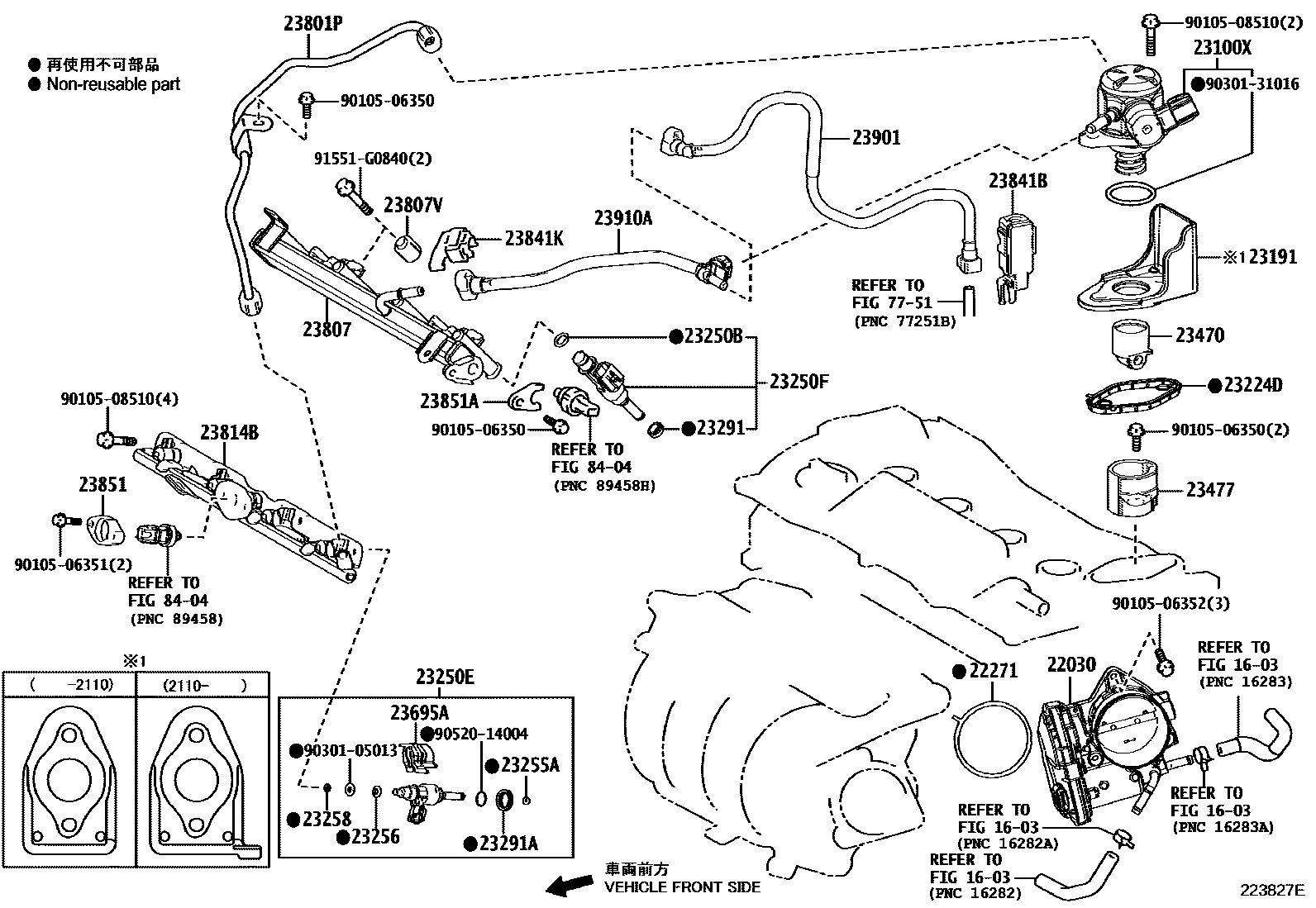

Toyota RAV4 PHEV — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-25020i202210-202310

22271GASKET, THROTTLE BODY

main22271-25020i202006-202210

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202006-202210

23191FLANGE, FUEL PUMP

main23191-25050i202006-202112

main23191-25070i202210-202310

23224DGASKET, FUEL PUMP SPACER

main23224-25010i202006-202107

main23224-25011i202310

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202006-202210

(J)

main90301-A0036×4i202310

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25010-01×4i202210-202310

MARK 1,REFER REPAIR MANUAL

main23209-25010-02×4i202006-202210

MARK 2,REFER REPAIR MANUAL

main23209-25010-03×4i202006-202210

MARK 3,REFER REPAIR MANUAL

main23209-25010-04×4i202006-202210

MARK 4,REFER REPAIR MANUAL

main23209-25010-05×4i202006-202210

MARK 5,REFER REPAIR MANUAL

main23209-25010-06×4i202006-202210

MARK 6,REFER REPAIR MANUAL

main23209-25010-07×4i202210-202310

MARK 7,REFER REPAIR MANUAL

main23209-25010-08×4i202006-202210

MARK 8,REFER REPAIR MANUAL

main23209-25010-09×4i202210-202310

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175×4i202210-202310

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202210-202310

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202006-202210

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010×4i202006-202210

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i202006-202210

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202006-202210

23470LIFTER ASSY, FUEL PUMP

main23470-25010i202006-202210

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202006-202210

23695ACLAMP, NOZZLE HOLDER

main23695-25010×4i202006-202210

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25031i202006-202210

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-25022i202006-202107

main23814-25023i202108-202210

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2i202006-202210

23814BPIPE, FUEL DELIVERY

main23814-25010i202006-202210

main23814-25011i202211-202310

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i202006-202210

23841KCLAMP, FUEL PIPE

main23841-25040i202006-202210

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202006-202210

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202006-202210

23901TUBE SUB-ASSY, FUEL

main23901-25121i202006-202210

23910ATUBE SUB-ASSY, FUEL

main23901-25061i202006-202210

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

37 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota RAV4 PHEV

This section contains 37 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RAV4 PHEV. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, PUMP ASSY, FUEL (ENGINE ROOM SIDE), FLANGE, FUEL PUMP.
