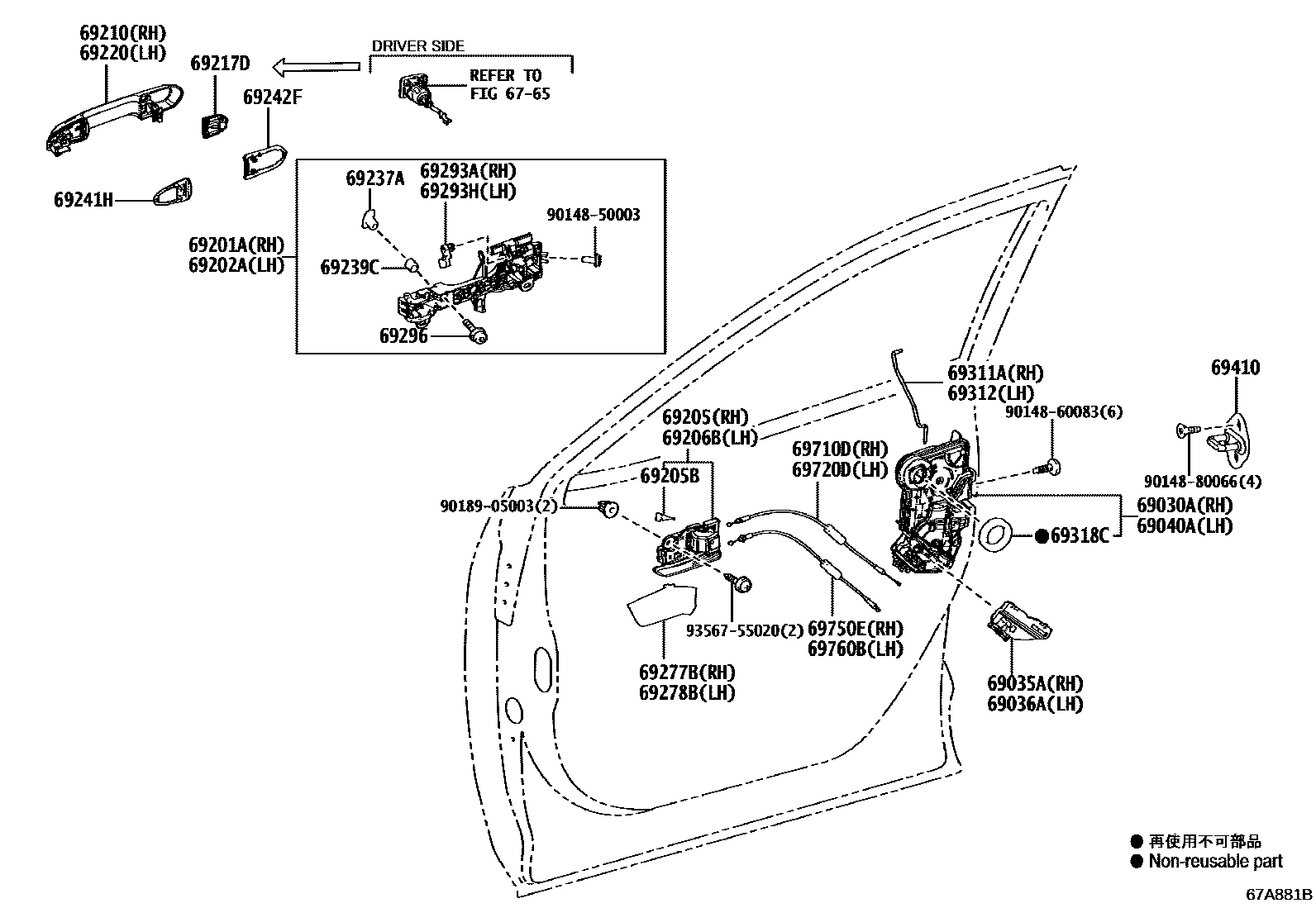

Toyota RAV4 PHEV — FRONT DOOR LOCK & HANDLE

6765LOCK CYLINDER SET

→ Go to FIG 67-65

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-53120i202310

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010i202310

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010i202310

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-53130i202310

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100i202006-202210

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090i202006-202210

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1i202006-202112

BLACK,TRIM2#

main69205-33140-C0i202006-202210

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2i202210-202310

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1i202006-202112

BLACK,TRIM2#

main69206-33150-C0i202006-202210

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-42120-A0i202006-202204

SUPER WHITE 2,040

main69210-42120-A1i202006-202204

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ

main69210-42120-B0i202006-202204

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42120-B1i202006-202204

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42120-C0i202006-202204

ATTITUDE BLACK MC.,218

main69210-42120-D0i202006-202204

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42120-J0i202006-202204

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

main69210-42121-A0i202310-202410

SUPER WHITE 2,040

main69210-42121-A1i202205-202210

WHITE PEARL CS.,070 ,2QJ

main69210-42121-A4i202210-202310

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-42121-B0i202210-202310

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42121-B1i202205-202210

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42121-C0i202310-202410

ATTITUDE BLACK MC.,218

main69210-42121-D0i202310-202410

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42121-J0i202205-202210

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

main69210-42360-A0i202411

SUPER WHITE 2,040

main69210-42360-A1i202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-42360-B0i202411

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42360-B1i202411

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42360-C0i202411

ATTITUDE BLACK MC.,218

main69210-42360-D1i202411

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42360-J0i202411

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140i202210-202310

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-42170-A0i202006-202204

SUPER WHITE 2,040

main69210-42170-A1i202006-202204

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ

main69210-42170-B0i202006-202204

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42170-B1i202006-202204

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42170-C0i202006-202204

ATTITUDE BLACK MC.,218

main69210-42170-D0i202006-202204

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42170-J0i202006-202204

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

main69210-42171-A0i202310-202410

SUPER WHITE 2,040

main69210-42171-A1i202205-202210

WHITE PEARL CS.,070 ,2QJ

main69210-42171-A4i202210-202310

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-42171-B0i202205-202210

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42171-B1i202310-202410

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42171-C0i202210-202310

ATTITUDE BLACK MC.,218

main69210-42171-D0i202210-202310

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42171-J0i202205-202210

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

main69210-42370-A0i202411

SUPER WHITE 2,040

main69210-42370-A1i202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-42370-B0i202411

SILVER ME.,1D6; SILVER ME.,1D6 ,2QY

main69210-42370-B1i202411

GRAY ME.,1G3; GRAY ME.,1G3 ,2QZ

main69210-42370-C0i202411

ATTITUDE BLACK MC.,218

main69210-42370-D1i202411

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69210-42370-J0i202411

DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2i202210-202310

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2i202006-202210

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2i202006-202210

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2i202006-202210

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-42010-C0i202006-202210

BLACK

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-42010-C0i202006-202210

BLACK

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-33030i202006-202210

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040i202006-202210

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2i202006-202202

main90148-50006×2i202210-202310

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-42080i202006-202210

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-42090i202006-202210

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i202006-202210

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2i202006-202210

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-42070i202006-202210

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-42070i202006-202210

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-42050i202310

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-42050i202006-202210

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota RAV4 PHEV

This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4 PHEV. Key components include: LOCK CYLINDER SET, LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH.
