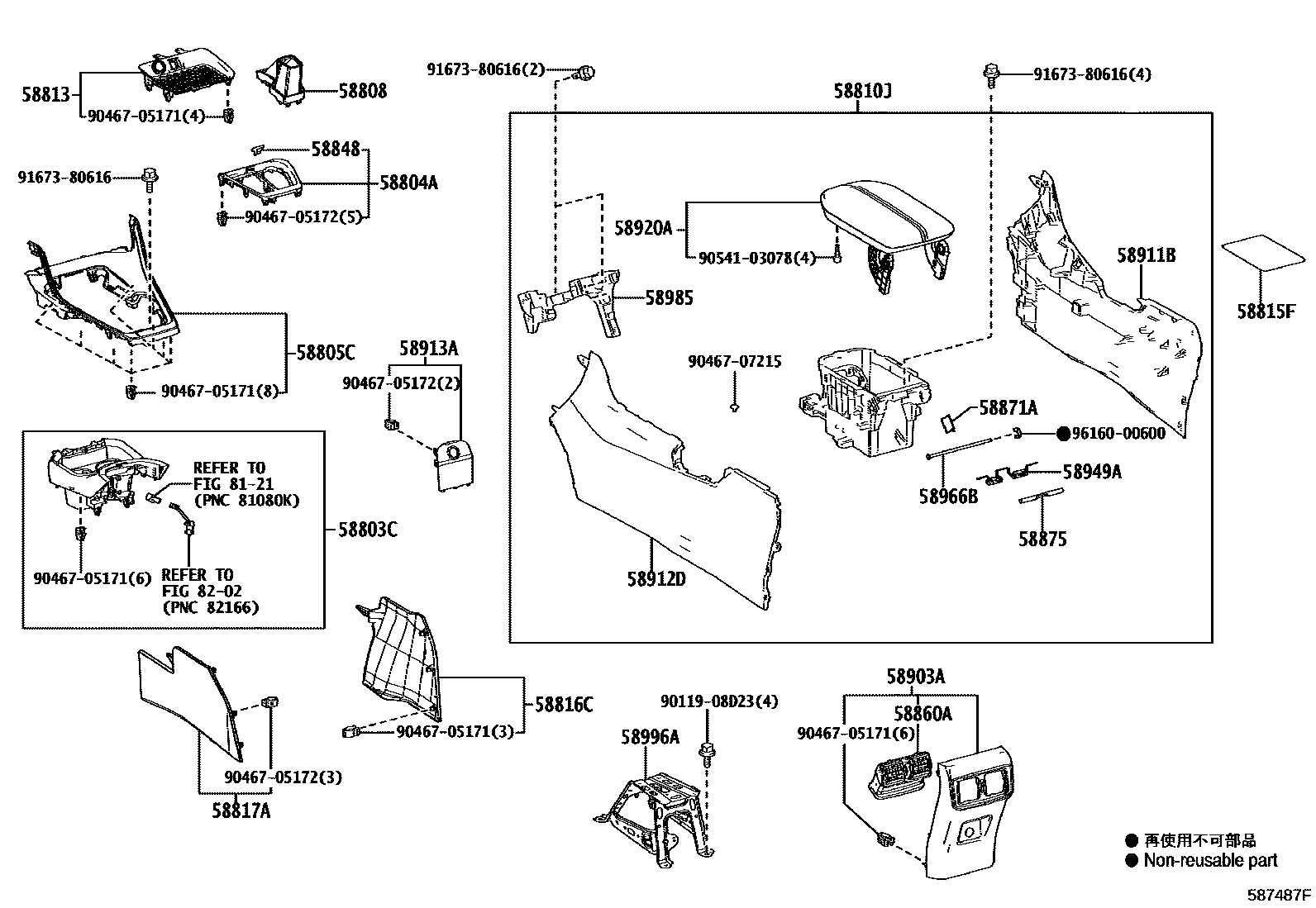

Toyota RAV4 PHEV — CONSOLE BOX & BRACKET

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-42030-C3iAXAP54..SE202006-202111

BLACK,TRIM2#

main58803-42050-C3iAXAP54..XSE202006-202111

BLACK,TRIM2#

main58803-42090-C0iAXAP54..SE202310

BLACK,TRIM2#

main58803-42100-C0iAXAP54..XSE202310

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42460iAXAP54202310

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42080iAXAP54202310

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42110-C2iAXAP54202006-202210

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-42020-C0iAXAP54..SE202210-202310

BLACK,TRIM2#

main58810-42030-C2iAXAP54..XSE202310

BLACK,TRIM2#

58813BOX, CONSOLE, UPPER

main58813-42060

58815FCARPET, CONSOLE BOX

main58815-42040iAXAP54202006-202210

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-42020-C0iAXAP54202310

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-42020-C0iAXAP54202006-202111

BLACK,TRIM2#

main58817-42021-C0iAXAP54202112-202210

BLACK,TRIM2#

58848COVER, SHIFT LEVER HOLE

main58848-42010iAXAP54202006-202210

58860AREGISTER ASSY, CONSOLE BOX

main58860-48050-C2iAXAP54202006-202210

BLACK,TRIM2#

58871ACUSHION, CONSOLE BOX, NO.2

main58871-42040iAXAP54202006-202210

58875SPACER, CONSOLE BOX

main58875-42010iAXAP54202006-202210

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42060-C0iAXAP54202006-202210

BLACK,TRIM2#

58911BPANEL, BOX, NO.1

main58911-42060-C0iAXAP54202006-202210

BLACK,TRIM2#

58912DPANEL, BOX, NO.2

main58912-42050-C0iAXAP54202006-202210

BLACK,TRIM2#

58913APANEL, BOX, NO.3

main58913-42030iAXAP54202006-202112

main58913-42050iAXAP54202112-202210

58920AARMREST ASSY, REAR CONSOLE

main58920-42010-C0iAXAP54..SE202310

BLACK,TRIM2#

main58920-42020-C2iAXAP54..XSE202210-202310

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-42040iAXAP54..SE202006-202210

main58949-42050iAXAP54..XSE202210-202310

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-42020iAXAP54202006-202210

58985RETAINER, CONSOLE BOX

main58985-42060iAXAP54202006-202210

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42080iAXAP54202006-202207

main58996-42081iAXAP54202208-202210

8121

8202

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

9054103078

main90541-03078

9167380616

main91673-80616

9616000600

main96160-00600

31 parts on this diagram · 1 diagram in section
