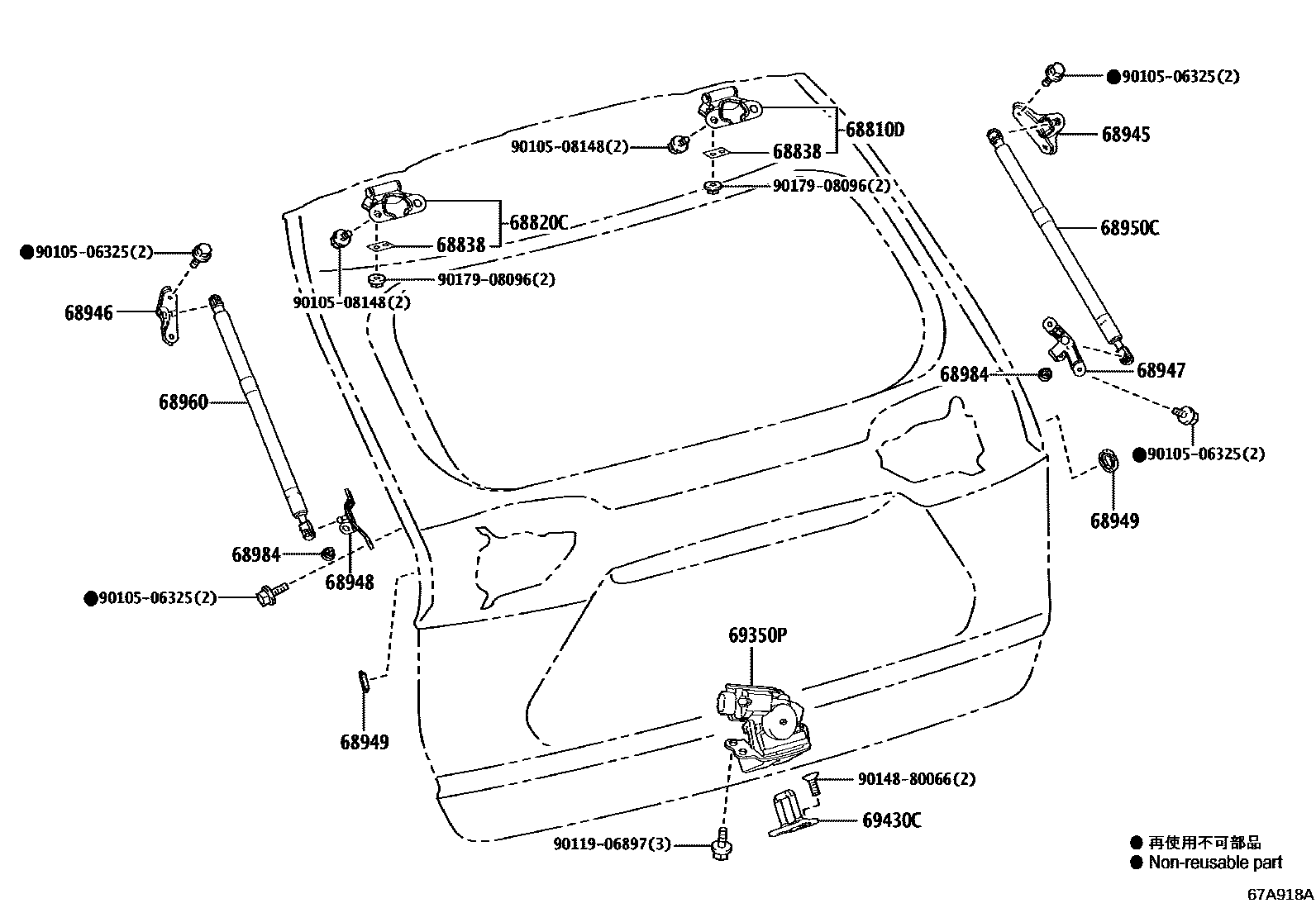

Toyota RAV4 PHEV — BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
T=1.0
T=1.5
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68949SEAL, BACK DOOR STAY BRACKET
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68984STOPPER, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506325
main90105-06325
9010508148
main90105-08148
9011906897
main90119-06897
9014880066
main90148-80066
9017908096
main90179-08096
18 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HINGE for Toyota RAV4 PHEV
This section contains 27 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota RAV4 PHEV. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, UNIT ASSY SET, POWER BACK DOOR, RH, UNIT ASSY SET, POWER BACK DOOR, LH.
