82715BRACKET,WIRING HARNESS CLAMP

main82715-07160iAXAP5#202104-202304

main8946A-0E030iAXAP5#202304

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXAP5#202104-202304

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXAP5#202104-202304

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXAP5#202104-202304

89467BSENSOR, AIR FUEL RATIO

main89467-0R110iAXAP5#202104-202304

main89467-0R190iAXAP5#202304

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R140iAXAP5#202104-202304

main89467-0R170iAXAP5#202304

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iAXAP5#202104-202201

main89491-06011iAXAP5#202202-202304

89615SENSOR, KNOCK CONTROL

main89615-0E010iAXAP5#202109-202304

main89615-20090iAXAP5#202104-202109

90105C0048

main90105-C0048

9011906A23

main90119-06A23

90119C0098

main90119-C0098

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

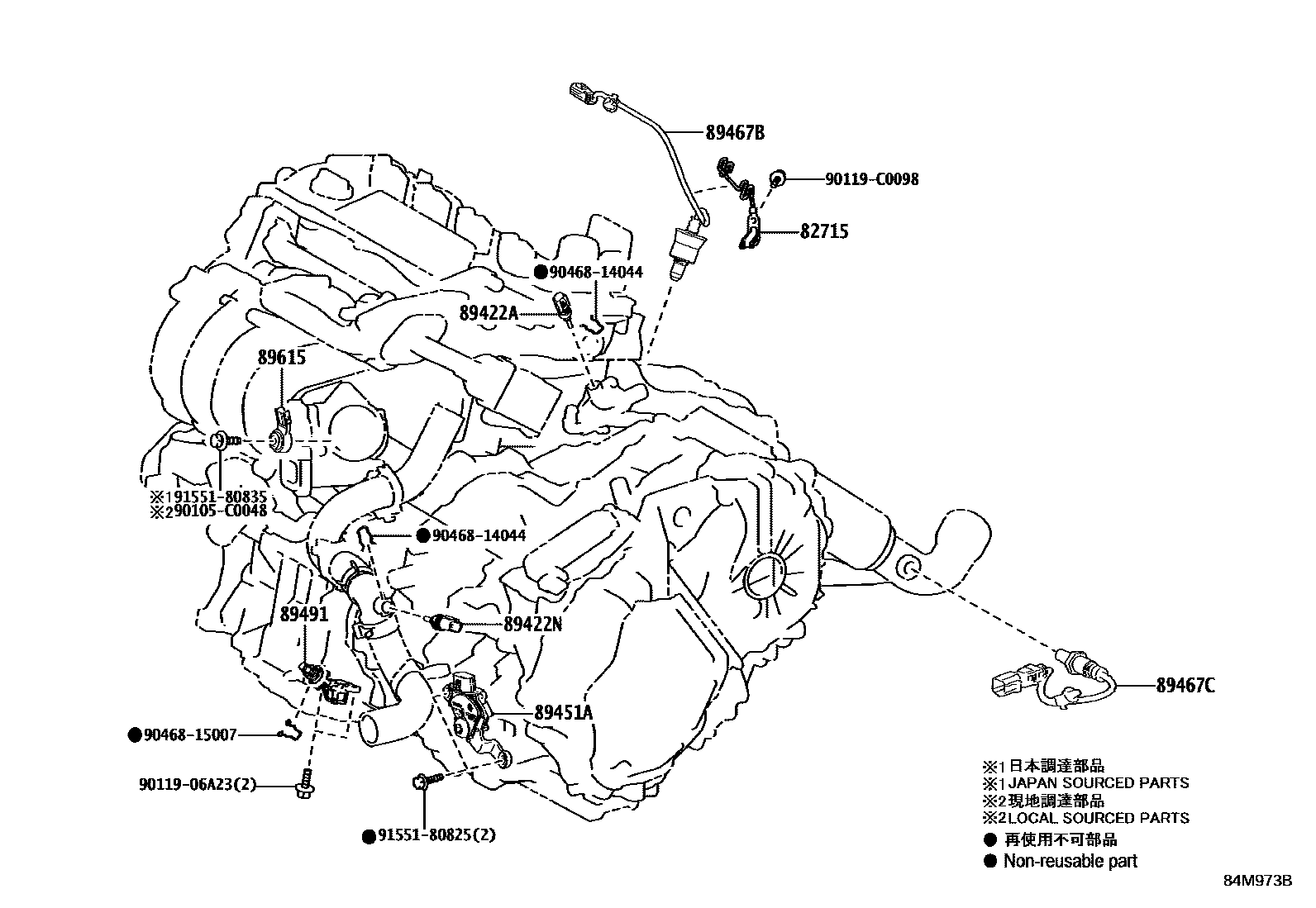

15 parts on this diagram · 11 diagrams in section
