Toyota RAV4 PHEV — STANDARD TOOL

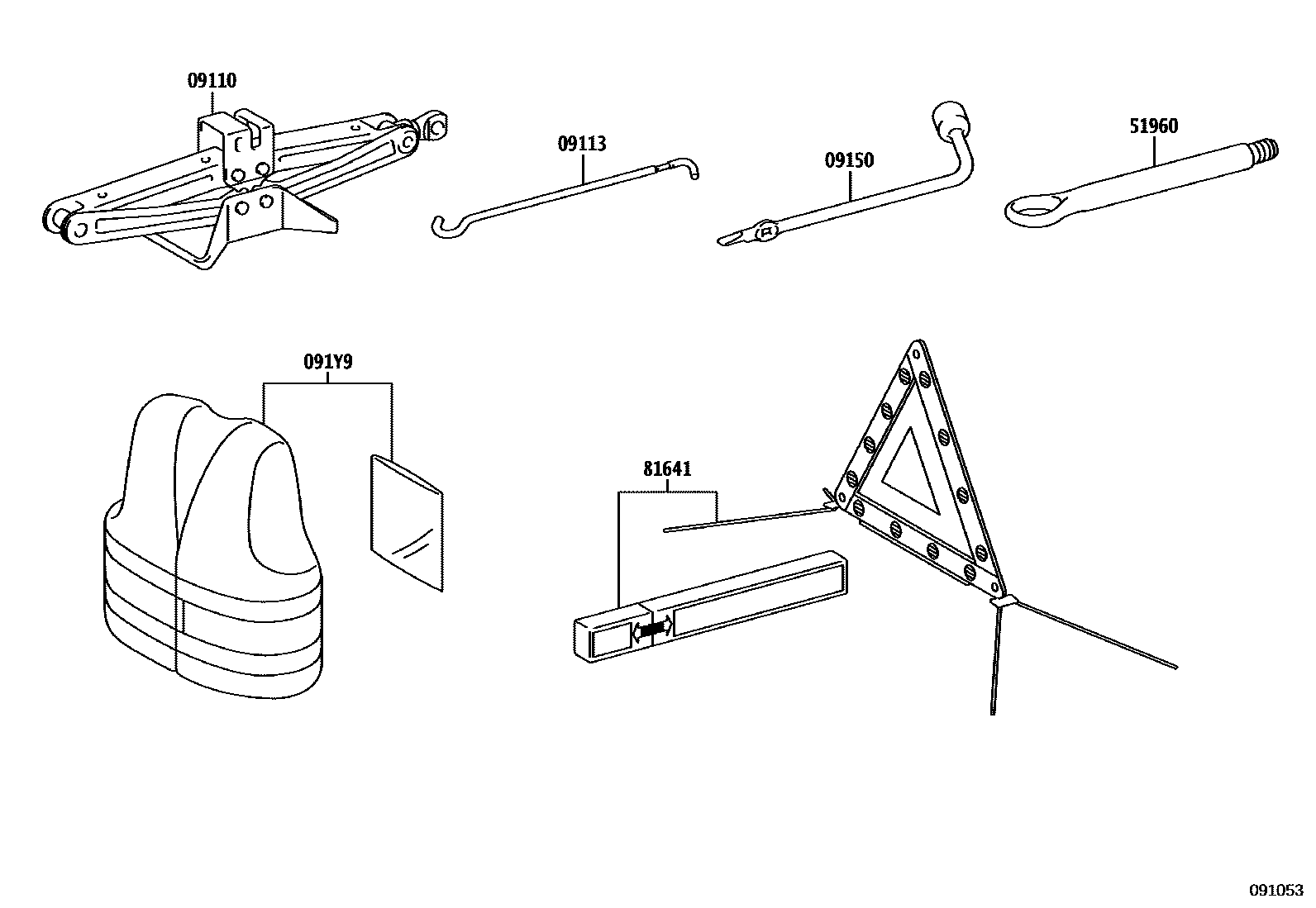

Parts diagram

09110JACK ASSY

main09111-0E040i202104-202304

09113HANDLE, JACK

main09113-0R030i202104-202304

09150WRENCH, HUB NUT BOX

main09150-0R020i202104-202304

091Y9JACKET, W/REFLECTOR

main091Y9-0R010i202104-202304

51960HOOK ASSY, FRONT

main51961-0E120×2i202111-202304

main51961-0R060×2i202104-202111

81641REFLECTOR, TRIANGLE

main81604-02030i202104-202304

6 parts on this diagram · 1 diagram in section
