Toyota RAV4 PHEV — METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY

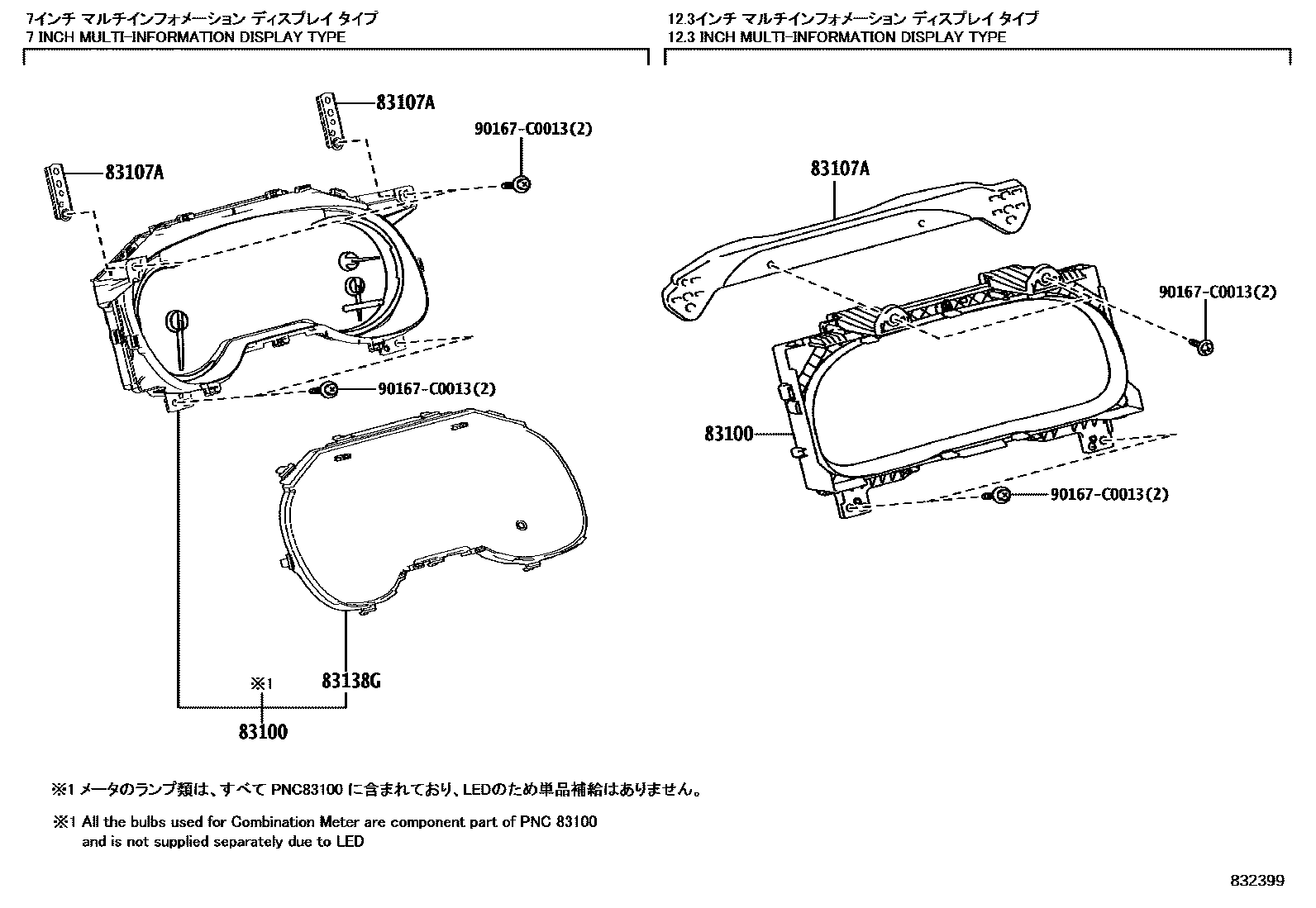

83100METER ASSY, COMBINATION

main83800-0R850iAXAP52202104-202105

DENSO,*614

main83800-0R851iAXAP52202106-202304

DENSO,*614

main83800-0R870iAXAP54202104-202304

DENSO,*614

sub83800-0R871

main83800-0RD20iAXAP52..X202304-202307

DENSO,*614

main83800-0RD21iAXAP52..X202308-202409

DENSO,*614

main83800-0RD30iAXAP5#..G,M202304-202306

DENSO,*614

main83800-0RD31iAXAP5#..G,M202307-202308

DENSO,*614

main83800-0RD32iAXAP5#..G,M202308-202312

DENSO,*614

main83800-0RD33iAXAP5#..G,M202401-202409

DENSO,*614

sub83800-0RD34

main83800-0RK50iAXAP52..X202409

DENSO,*614

main83800-0RK60iAXAP5#..G,M202409-202410

DENSO,*614

main83800-0RK61iAXAP5#..G,M202411

DENSO,*614

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-0R020iAXAP5#..G,M202304

main83107-0R030×2iAXAP52202104-202304

83138GGLASS, COMBINATION METER

main83852-0R570iAXAP52202104-202304

90167C0013

main90167-C0013

4 parts on this diagram · 2 diagrams in section
