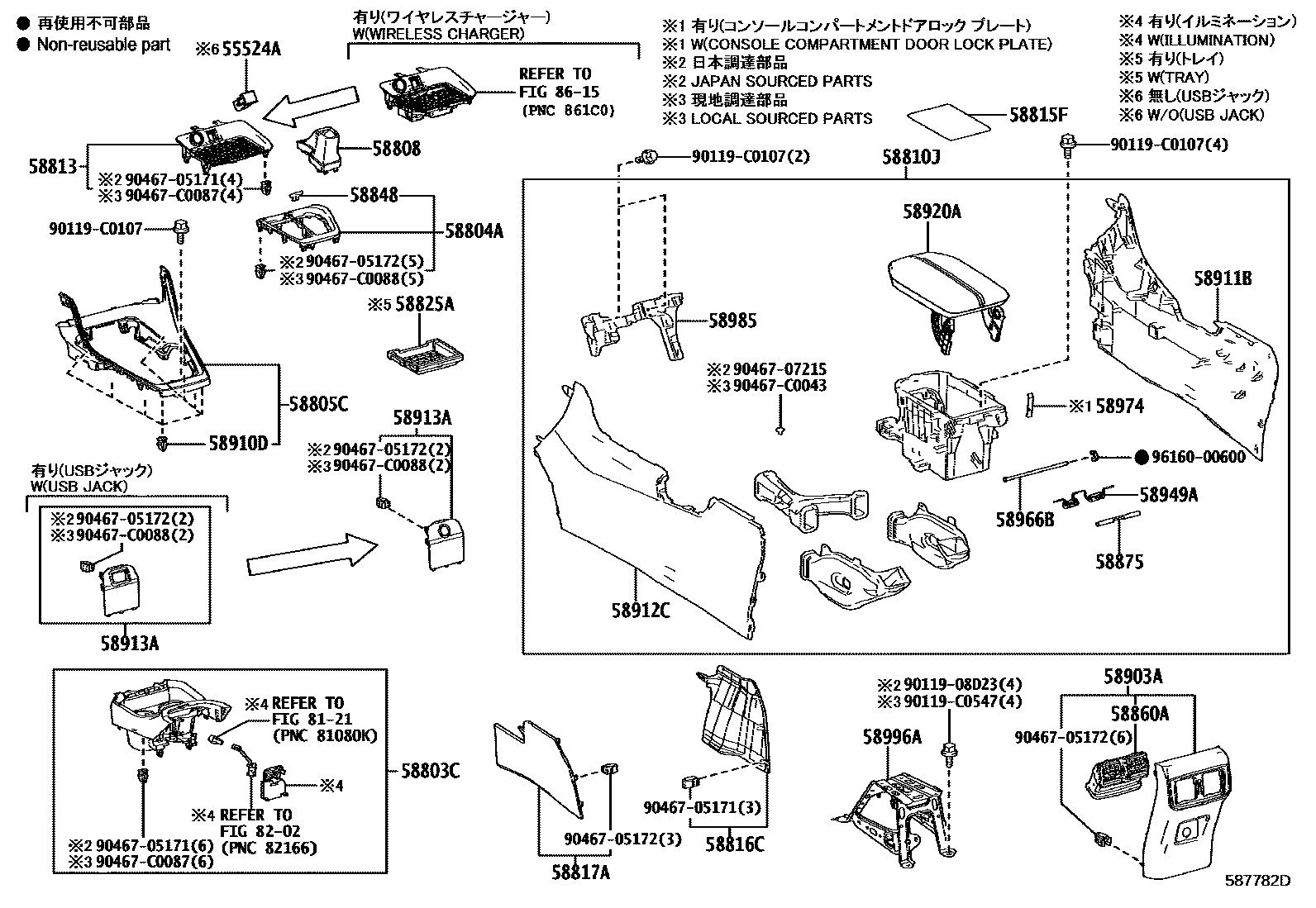

Toyota RAV4 PHEV — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55524-12010-C0iAXAP52..X202104-202304

BLACK

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-0R050-C1iAXAP5#..M,X202104-202304

BLACK,TRIM2#

main58803-0R070-C2iAXAP54..G202104-202304

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0R210iAXAP5#202104-202304

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0R090iAXAP5#202304

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0R040-C1iAXAP5#202104-202304

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-0R040-C0iAXAP52..M202104-202207

BLACK,TRIM2#

main58810-0R050-C1iAXAP5#..G,M202304

BLACK,TRIM2#

58813BOX, CONSOLE, UPPER

main58813-0R080-C1iAXAP5#..M202304

BLACK,TRIM2#

58815FCARPET, CONSOLE BOX

main58815-0R080iAXAP5#202104-202304

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-0R060-C0iAXAP5#202104-202304

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0R060-C0iAXAP5#202104-202111

BLACK,TRIM2#

main58817-0R061-C0iAXAP5#202112-202304

BLACK,TRIM2#

58825APOCKET, CONSOLE BOX

main58825-0R020iAXAP54202104-202304

58848COVER, SHIFT LEVER HOLE

main58848-0R020iAXAP5#202104-202304

58860AREGISTER ASSY, CONSOLE BOX

main58860-0R020-C0iAXAP5#202304

BLACK,TRIM2#

58875SPACER, CONSOLE BOX

main58875-0R020iAXAP5#202104-202304

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0R100-C0iAXAP52..X202104-202304

BLACK,TRIM2#

main58903-0R110-C0iAXAP5#..G,M202104-202304

BLACK,TRIM2#

58910DCLIP(FOR CONSOLE BOX)

main90467-05171×8iAXAP5#202304

(J)

main90467-C0087×8iAXAP5#202210-202304

(L)

58911BPANEL, BOX, NO.1

main58911-0R070-C0iAXAP5#202104-202304

BLACK,TRIM2#

58912CPANEL, BOX SIDE, NO.2

main58912-0R060-C0iAXAP5#202104-202304

BLACK,TRIM2#

58913APANEL, BOX, NO.3

main58913-0R020iAXAP5#202104-202304

main58913-0R090iAXAP5#..G,M202304

58920AARMREST ASSY, REAR CONSOLE

main58920-0R030-C0iAXAP52..X202104-202304

BLACK,TRIM2#

main58920-0R040-C1iAXAP52..M202207-202304

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-0R030iAXAP52..X202104-202304

main58949-0R060iAXAP54202104-202304

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-0R030iAXAP5#202304

58974PLATE, CONSOLE COMPARTMENT DOOR LOCK

main58974-0R060iAXAP54202104-202304

58985RETAINER, CONSOLE BOX

main58985-0R090iAXAP5#202104-202304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R080iAXAP5#202304

8121

8202

8615

9011908D23

main90119-08D23

90119C0107

main90119-C0107

90119C0547

main90119-C0547

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

90467C0043

main90467-C0043

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9616000600

main96160-00600

38 parts on this diagram · 1 diagram in section
