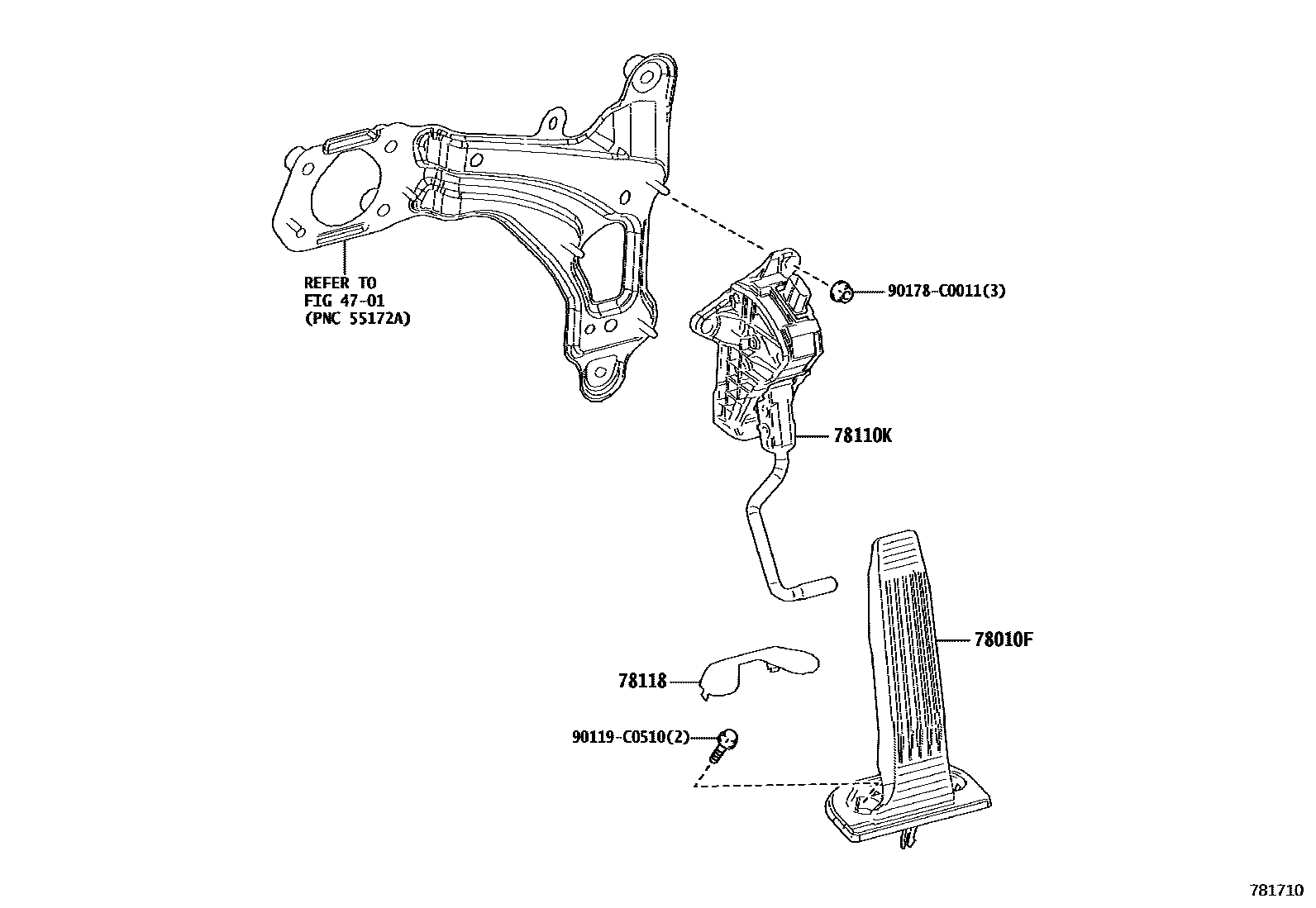

Toyota RAV4 PHEV — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-07020i202104-202111

main78101-07021i202112-202304

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06171i202104-202304

78118PAD, ACCELERATOR PEDAL

main78117-07010i202104-202304

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota RAV4 PHEV

This section contains 6 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RAV4 PHEV. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PAD, ACCELERATOR PEDAL.
