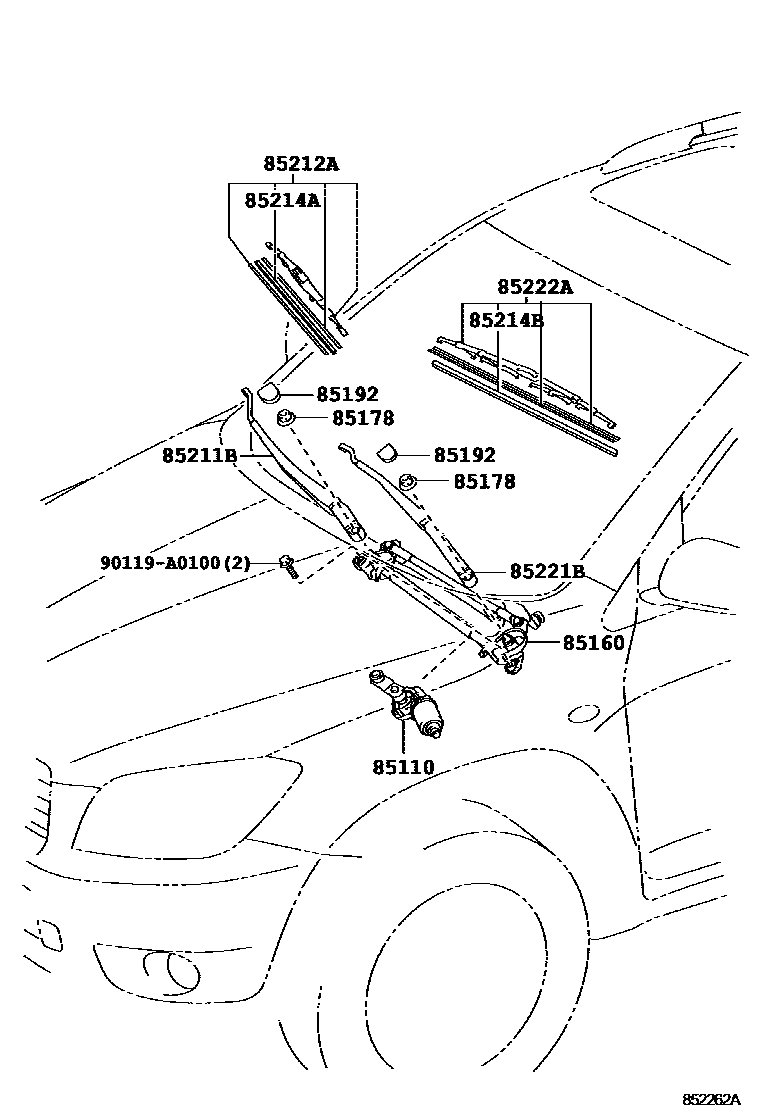

Toyota RAV4 (NAP) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0R010i200811

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R010i200811

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i200811

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200811

85211BARM, FRONT WIPER, RH

main85211-0R010i200811

85212ABLADE, FR WIPER, RH

main85212-0R040i201109

main85212-35071i200811-201109

85214ARUBBER, WIPER, RH

main85214-12301i200811

85214BRUBBER, WIPER, LH

main85214-50100i200811

85221BARM, FRONT WIPER, LH

main85221-0R010i200811

85222ABLADE, FR WIPER, LH

main85222-0R040i201109

main85222-24080i200811-201109

90119A0100

main90119-A0100

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RAV4 (NAP)

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAV4 (NAP). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
