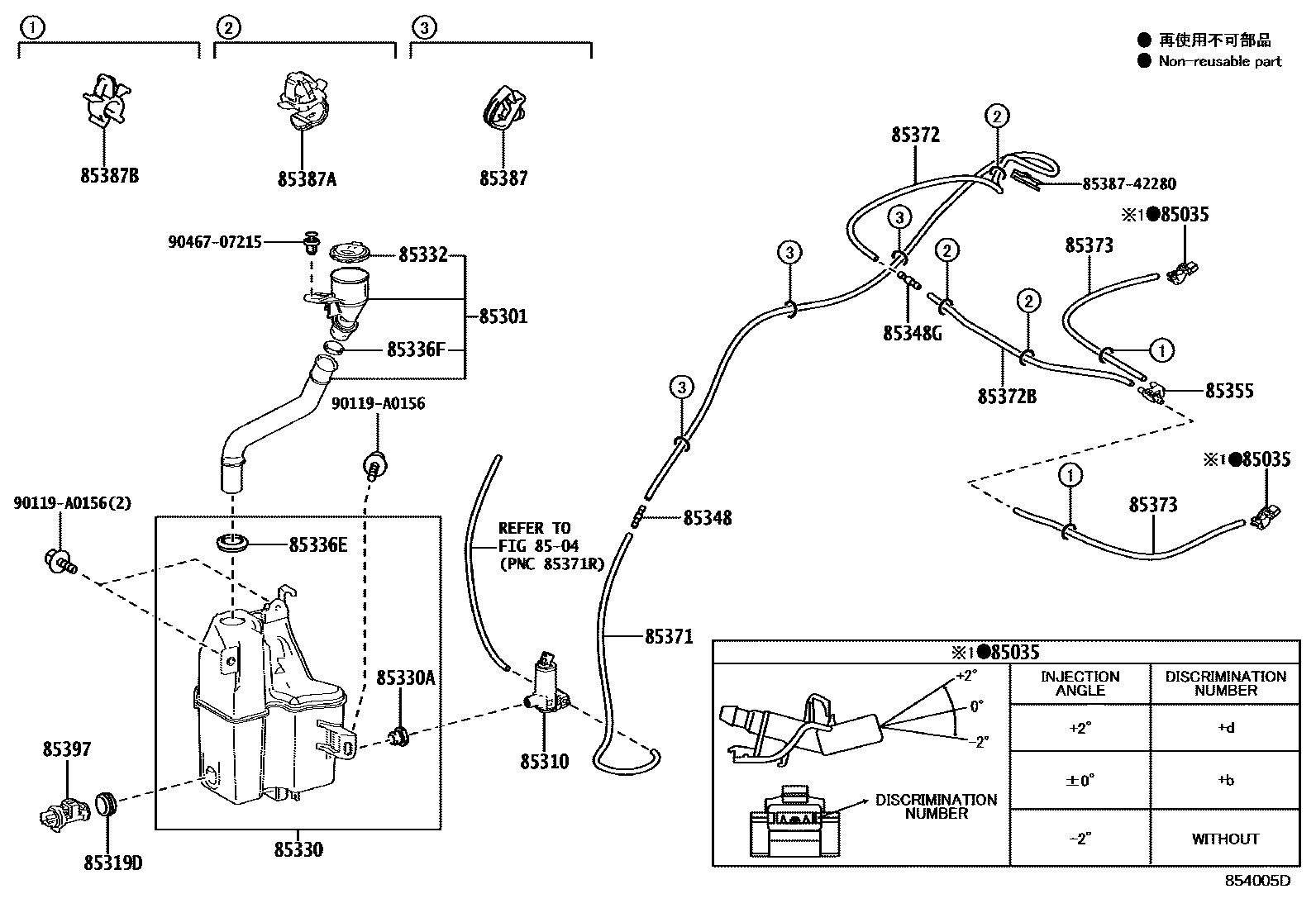

Toyota RAV4 (NAP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202211

ANGLE 0

main85381-30230×2i202009

ANGLE -2

main85381-30240×2i201812-202009

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0R020i201812-202009

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0E031i201812-202009

85319DPACKING, FRONT WASHER

main85319-AA020i202211

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R060i201812-202009

main85315-0R140i202112-202211

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201812-202009

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i201812-202009

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201812-202009

85336FPACKING, WINDSHIELD WASHER JAR

main85336-42320i202009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i201812-202009

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-02300i202009

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201812-202009

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33333i201812-202009

L=590

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33334i201812-202009

L=1690

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33094i201812-202009

L=500

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33087×2i201812-202009

L=470

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-16790×3i202001-202009

main82711-35520×3i201812-201912

85387ACLAMP, WASHER, NO.2

main85371-12040×3i202211

85387BCLAMP, WASHER, NO.3

main90469-07011×2i202009-202211

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i201812-202009

8538742280CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-42280

90119A0156

main90119-A0156

9046707215

main90467-07215

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota RAV4 (NAP)

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4 (NAP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
