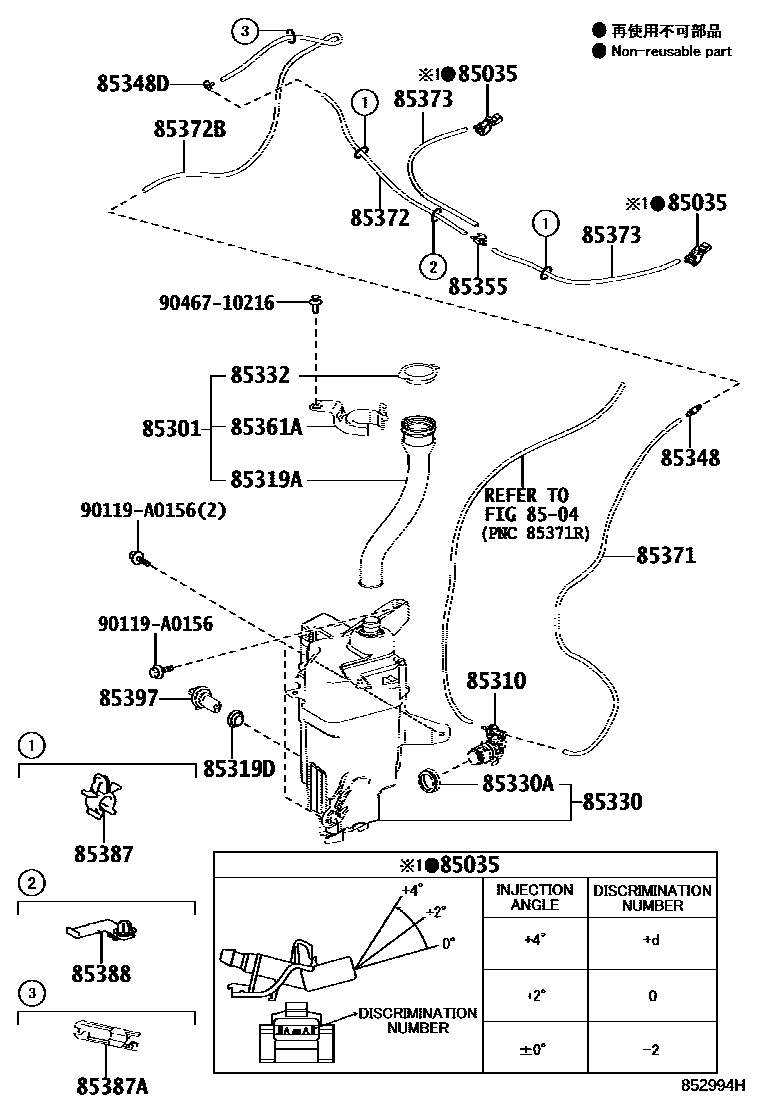

Toyota RAV4 (NAP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201511-201709

ANGLE 0

main85381-12420×2i201301-201511

ANGLE +2

main85381-12430×2i201301-201511

ANGLE +4

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85316-42350i201301-201511

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-42010i201301-201511

85319AHOSE, INLET

main85319-42230i201511-201709

85319DPACKING, FRONT WASHER

main85319-AA020i201301-201511

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R030i201301-201511

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201301-201511

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i201301-201511

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i201301-201511

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-60290i201301-201511

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201301-201511

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42350i201301-201511

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33049i201301-201511

L=720

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33173i201301-201511

L=680

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33180i201301-201511

L=1020

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33038×2i201301-201511

L=440

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main90469-07011×2i201301-201511

85387ACLAMP, WASHER, NO.2

main85387-02260i201301-201511

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-10500i201301-201511

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i201301-201511

90119A0156

main90119-A0156

9046710216

main90467-10216

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota RAV4 (NAP)

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4 (NAP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
