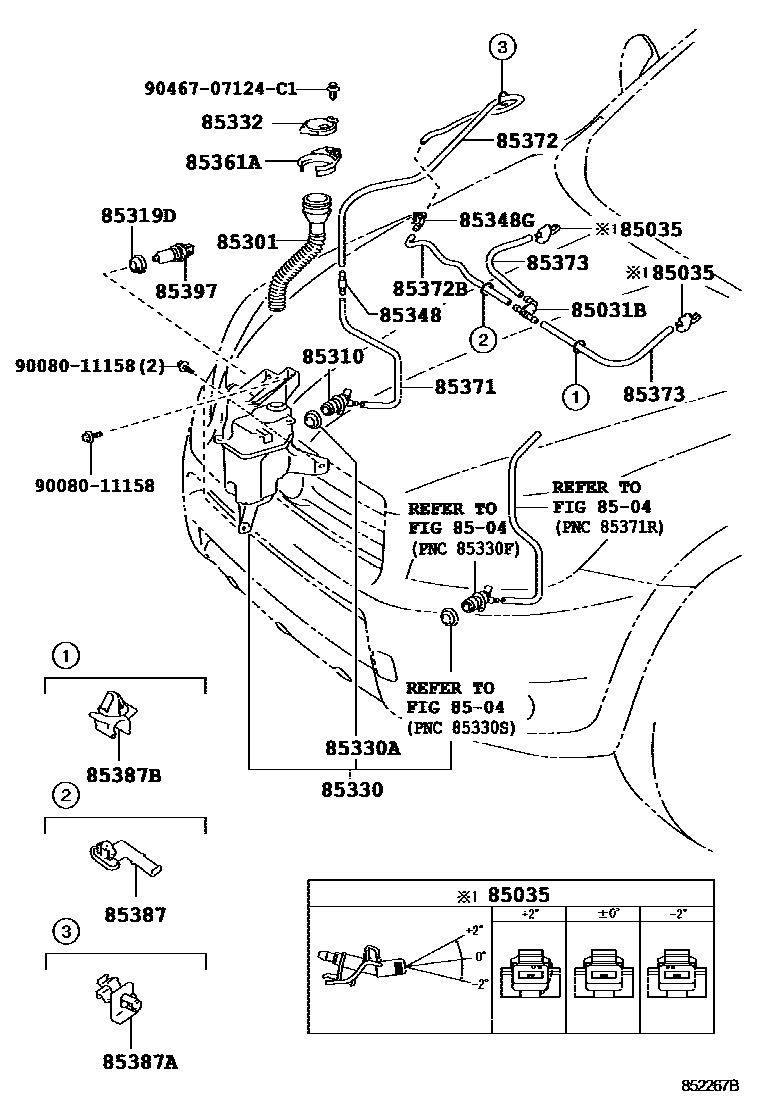

Toyota RAV4 (NAP) — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200811

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200811

ANGLE 0

main85381-12310×2i200811

ANGLE -2

main85381-12320×2i200811

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85319-42230i200811

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010i200811

85319DPACKING, FRONT WASHER

main85319-AA020i200811

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R010i200811

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200811

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200811

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i200811

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-0R020i200811

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42232i200811

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33045i200811

L=710

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33093i200811

L=810

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33011i200811

L=1250(*H,L=730)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33094×2i200811

L=500

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-10500i200811

85387ACLAMP, WASHER, NO.2

main85371-32020i200811

85387BCLAMP, WASHER, NO.3

main90469-07011i200811

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i200811

9008011158

main90080-11158

9046707124C1

main90467-07124C1

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota RAV4 (NAP)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4 (NAP). Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
