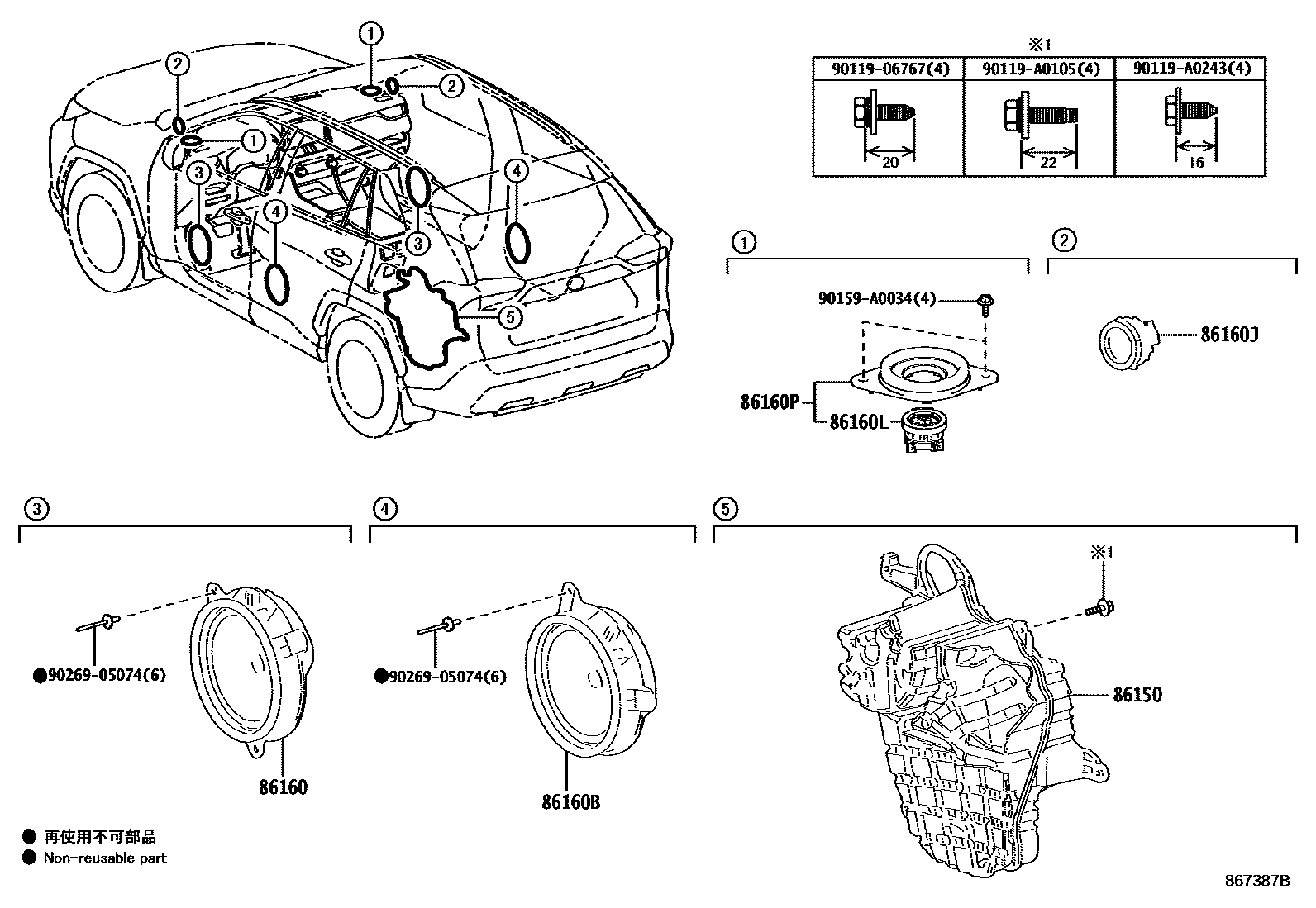

Toyota RAV4 (NAP) — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
main86150-0R060iAXAA5#,AXAH54,AXAL54..(M,P,V)..USA; AXAA5#,AXAH54,AXAL54..G; AXAA54,AXAH54,AXAL54..(P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..USA202112-202211
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY & AVN
86160SPEAKER ASSY, FRONT NO.1
main86160-0WS00×2iAXAA5#,AXAH54,AXAL54..(M,P,V)..USA; AXAA5#,AXAH54,AXAL54..G; AXAA54,AXAH54,AXAL54..(P,V)..USA; AXAA54,AXAH54..(P,V)..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY & AVN
86160BSPEAKER ASSY, REAR
main86160-0WY50×2iAXAA5#,AXAH54,AXAL54..(M,P,V)..USA; AXAA5#,AXAH54,AXAL54..G; AXAA54,AXAH54,AXAL54..(P,V)..USA; AXAA54,AXAH54..(P,V)..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY & AVN
86160JSPEAKER ASSY, FRONT NO.3
main86150-07100×2iAXAA5#,AXAH54,AXAL54..(M,P,V)..USA; AXAA5#,AXAH54,AXAL54..G; AXAA54,AXAH54,AXAL54..(P,V)..USA; AXAA54,AXAH54..(P,V)..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY & AVN
86160LSPEAKER ASSY, FRONT NO.4
86160PSPEAKER ASSY, FRONT NO.2
main86160-06A40×2iAXAA5#,AXAH54,AXAL54..(M,P,V)..USA; AXAA5#,AXAH54,AXAL54..G; AXAA54,AXAH54,AXAL54..(P,V)..USA; AXAA54,AXAH54..(P,V)..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY; AUDIO-JBL & 9INCH DISPLAY & AVN
9011906767
main90119-06767
90119A0105
main90119-A0105
90119A0243
main90119-A0243
90159A0034
main90159-A0034
9026905074
main90269-05074
11 parts on this diagram · 1 diagram in section
SPEAKER for Toyota RAV4 (NAP)
This section contains 11 genuine Toyota parts for the SPEAKER system of the Toyota RAV4 (NAP). Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.4.
