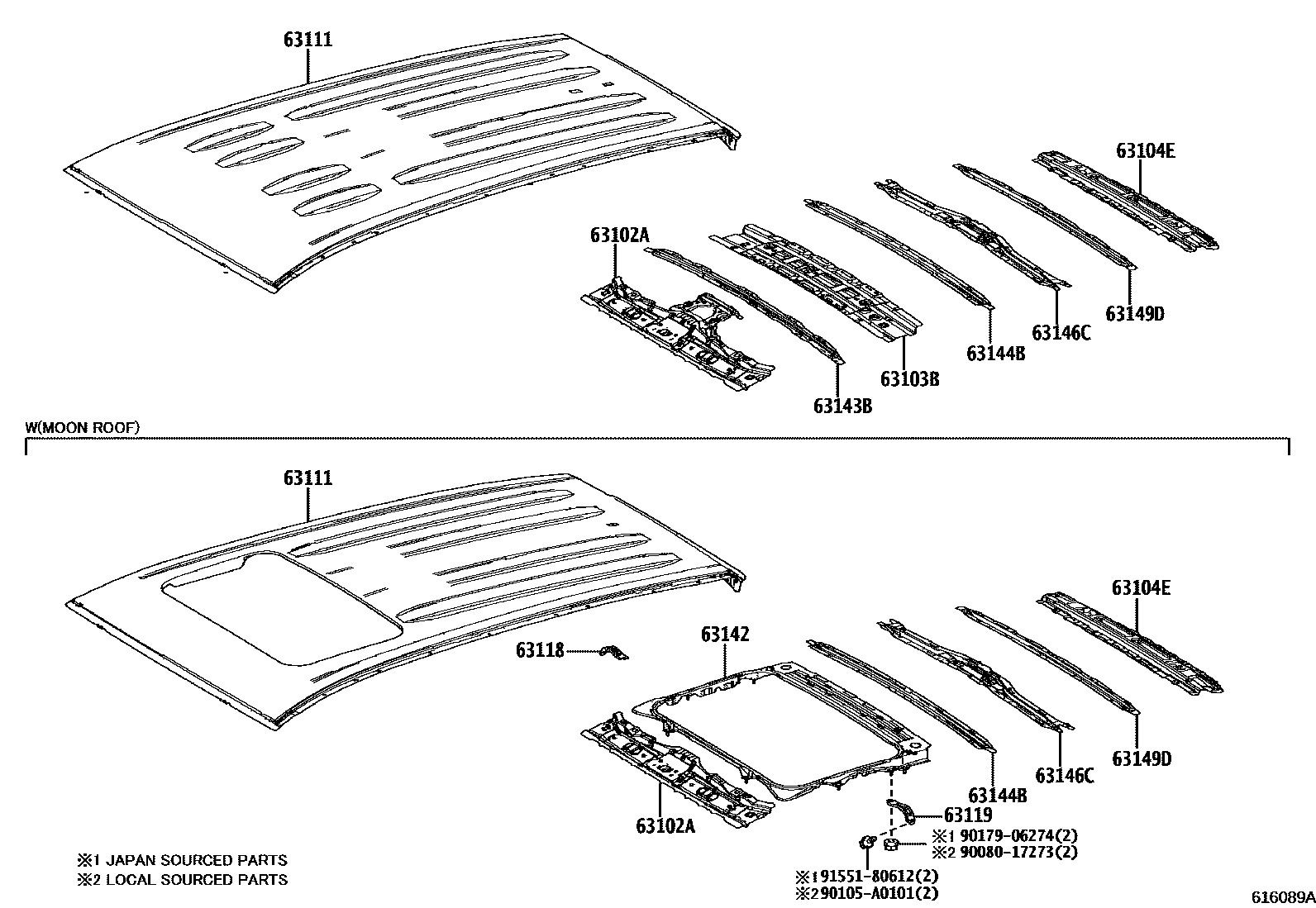

Toyota RAV4 (NAP) — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R907i201812-202009

MOON ROOF-WITHOUT

main63102-0R907i202009-202211

main63102-0R908i202211

MOON ROOF-WITH

main63102-0R908i201812-202211

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0R030i201812-202009

MOON ROOF-WITHOUT

main63103-0R030i202009-202211

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0R040i201812-202211

63111PANEL, ROOF

main63111-0R140i201812-202112

MOON ROOF-WITHOUT

main63111-0R141i202112-202211

main63111-0R150i201812-202112

main63111-0R151i202112-202211

MOON ROOF-WITH

main63111-0R270i202112-202211

63118SUPPORT, ROOF PANEL, RH

main63118-0R050i202211

MOON ROOF-WITH

main63118-0R050i201812-202211

63119SUPPORT, ROOF PANEL, LH

main63118-0R050i201812-202211

main63118-0R050i202211

MOON ROOF-WITH

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R050i202211

MOON ROOF-WITH

main63142-0R050i201812-202211

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0R050i202009-202211

main63143-0R050i201812-202009

MOON ROOF-WITHOUT

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R050i201812-202211

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-0R010i201812-202211

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R060i201812-202211

9008017273

main90080-17273

90105A0101

main90105-A0101

9017906274

main90179-06274

9155180612

main91551-80612

15 parts on this diagram · 9 diagrams in section

ROOF PANEL & BACK PANEL for Toyota RAV4 (NAP)

This section contains 105 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota RAV4 (NAP). Key components include: PAD, ROOF SIDE RAIL GARNISH, RH, PAD, ROOF SIDE RAIL, FRONT RH, PAD, ROOF SIDE RAIL, FRONT LH, PAD, ROOF SIDE RAIL GARNISH, LH, PANEL SUB-ASSY, WINDSHIELD HEADER.
