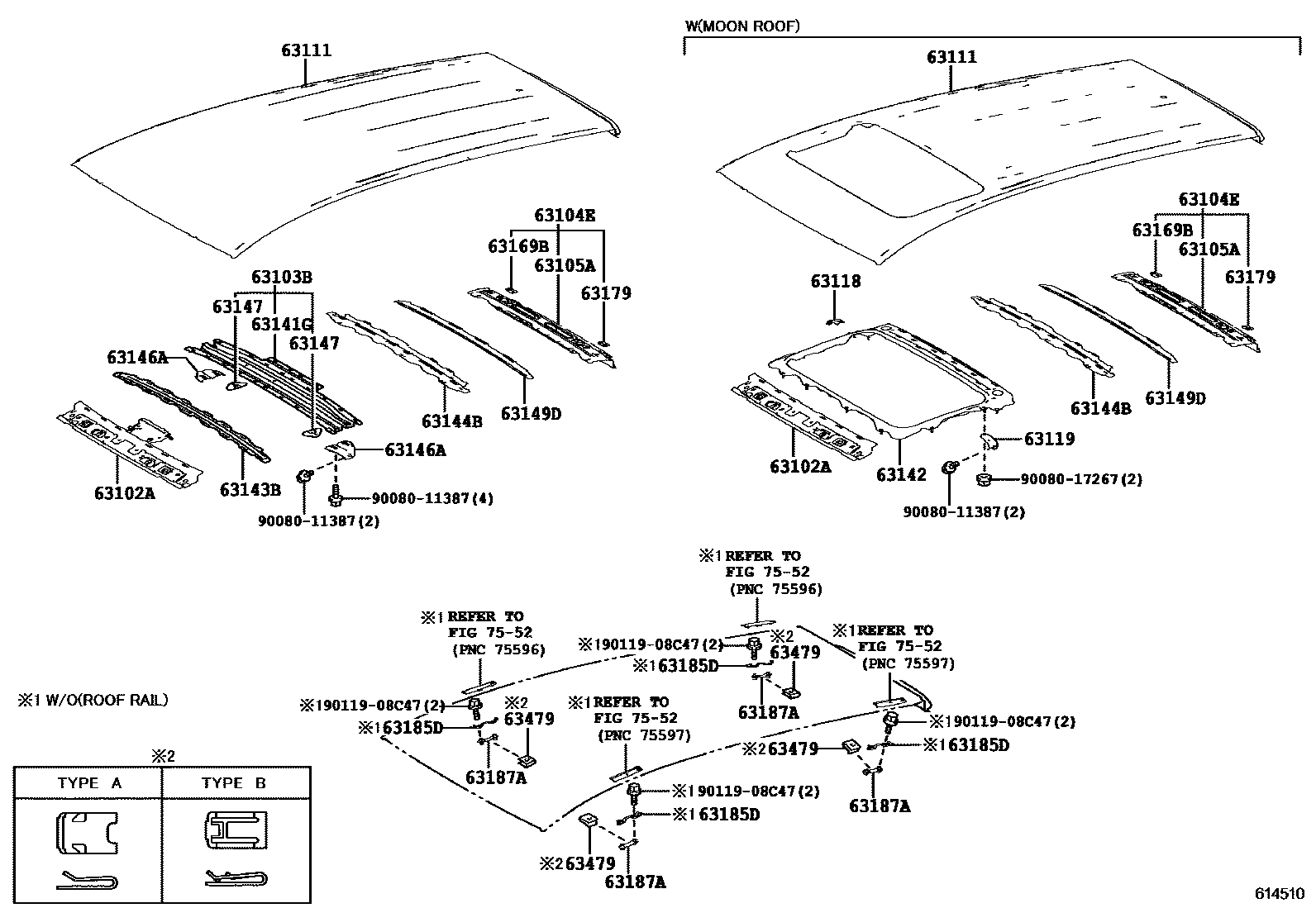

Toyota RAV4 (NAP) — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main61302-0R900i201511

main61302-0R901i201511-201709

main63102-0R050i201301-201511

main63102-0R060i201301-201511

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0R010i201301-201511

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0R010i201301-201709

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R030i201301-201709

63111PANEL, ROOF

main63111-0R080i201301-201511

main63111-0R081i201511

main63111-0R090i201301-201511

main63111-0R091i201511-201709

63118SUPPORT, ROOF PANEL, RH

main63118-0R030i201301-201709

63119SUPPORT, ROOF PANEL, LH

main63118-0R030i201301-201709

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0R041i201301-201511

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R030i201301-201709

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0R030i201301-201511

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R031i201301-201709

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-0R030i201301-201511

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-0R030i201301-201511

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R040i201301-201709

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0R010i201301-201709

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0R010i201301-201709

63185DBRACKET, ROOF RACK, FRONT

main63185-0R010i201308-201709

(L)

main63185-0R010i201301-201308

main63185-42020i201308-201709

(J)

63187ABRACKET, ROOF RACK, REAR

main63187-0R010i201301-201709

63479RETAINER, ROOF INNER RACK

main63479-0E010i201301-201709

TYPE B:REFER ILLUST.

main63479-42010i201301-201709

TYPE A:REFER ILLUST.

7552MOULDING

→ Go to FIG 75-52

9008011387

main90080-11387

9008017267

main90080-17267

9011908C47

main90119-08C47

23 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota RAV4 (NAP)

This section contains 51 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota RAV4 (NAP). Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
